SKF SI 20 ES Rod head with female thread 20 mm, M 20x1.5

Supplier number: SKF SI 20 ES | EAN 7316577002938

Recommended Retail Price €155.74

76.95 tax incl.

€63.60 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 4 products in stock.

Ordered before 20:00 - delivered tomorrow 30/09/2026
Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Dependable motion control with Skf

Practical benefits

Direct and secure mounting: You can attach the rod end firmly to linkages using the precise M20x1.5 female thread.
Built for heavy loads: The robust steel-on-steel sliding contact surface handles high radial loads and constant oscillating movements reliably.
Convenient and easy relubrication: You can easily apply fresh grease through the lubrication hole to keep the bearing operating smoothly.

In a nutshell

The right choise for

With the Skf si 20 es rod end, you create a robust and dependable connection for demanding linkage systems and hydraulic cylinders. Equipped with an M20 x 1.5 metric fine female thread, it connects quickly and securely to your rods and components. Its spherical plain bearing features a 20 mm bore diameter and a durable steel-on-steel sliding contact surface, engineered to absorb heavy radial loads and smooth out angular misalignment. Thanks to the integrated lubrication hole, periodic maintenance and greasing are straightforward, keeping your machinery running smoothly over a long service life.

Product information FAQ

€76.95

In stock - tax incl.

Key features according to our expert

Inner diameter: 20 mm
Connection type: Internal thread
Thread type: Metric fine
Sealing (bearing): Without seals
Maintenance free: Nein
Connection size: M20 x 1,5

Product description

These SKF rod ends contain a spherical plain bearing with a steel/steel sliding contact surface combination. The bearing requires maintenance and can be relubricated via a lubrication hole in the housing and via the shaft. The female thread is available with a left- (prefix SIL) or right-hand thread.

Suitable for heavy static, alternating or impact loads
Simple and ready-to-mount
Easy to relubricate

Documents

⤓ Technical data sheet PDF

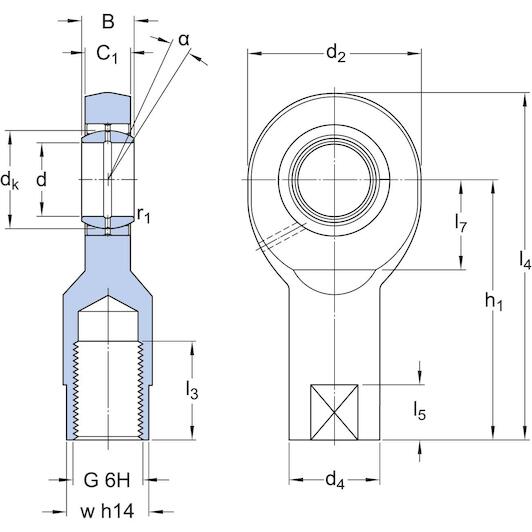

All Features

Inner diameter: 20 mm
Connection type: Internal thread
Thread type: Metric fine
Sealing (bearing): Without seals
Maintenance free: Nein
Connection size: M20 x 1,5
Bore diameter, bearing inner ring: 20
Attachment feature, rod end shank: Right-hand female thread
Material, housing: Steel
Sliding contact surface combination: Steel/steel, standard
Housing length, total: 106
Maintenance: Relubrication required
Thread designation: M 20x1.5
Material, outer ring: Bearing steel
Outside diameter, housing eye: 54
Sealing: Without
Basic static load rating: 57
Material, inner ring: Bearing steel
Width, bearing inner ring: 16
Width, housing eye: 13.5
Basic dynamic load rating: 30
Centre height, housing (from end of shank): 77

Brand SKF
01390017
EAN 7316577002938
Supplier number SKF SI 20 ES

Frequently asked questions about this product

Answered by specialists

What thread connection does this rod end have?: The rod end features a right-hand metric fine female thread sized M20 x 1.5.
What is the bore diameter of the bearing?: The spherical plain bearing inside has an inner bore diameter of 20 mm.
Is the SKF SI 20 ES maintenance-free?: No, this steel-on-steel sliding contact model requires regular maintenance and lubrication via the grease hole.
Does this rod end have built-in seals?: No, this standard version comes without seals (open spherical bearing).
What applications is the SKF SI 20 ES used for?: It is designed for linkage mechanisms and hydraulic cylinders that handle heavy static and dynamic loads.
