SKF SIL 25 C Rod head with female thread, left-hand thread 25 mm, M 24x2

Recommended Retail Price €297.82
147.40 tax incl.
€121.82 excl. VAT (incl. all environmental contributions)
On order: delivered from 28/05/2026
each

  • Ordered before 20:00 - delivered as of 28/05/2026
  • Free shipping
  • Delivery by DHL
  • Delivered from Belgium

Product description

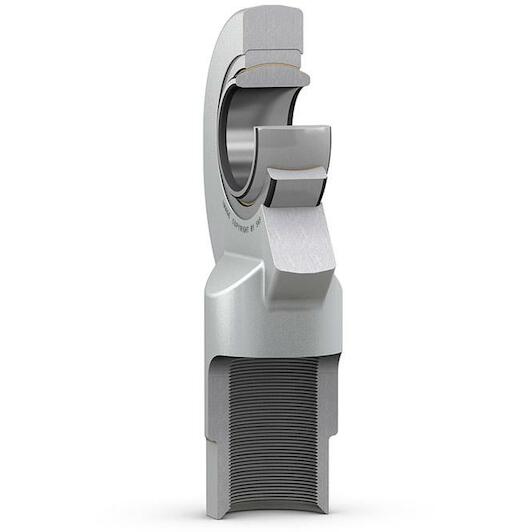

These SKF rod ends contain a spherical plain bearing with a steel/PTFE sintered bronze contact surface combination. The bearing is maintenance-free. The female thread is available with a left- (prefix SIL) or right-hand thread.

  • Long service life
  • Maintenance-free
  • Suitable for heavy, constant direction loads
  • Low coefficient of friction
  • Simple and ready-to-mount
Key features according to our expert
  • Inner diameter: 25 mm
  • Connection type: Inner thread
  • Thread type: Metric fine
  • Seal (bearing): Without seal
  • Maintenance free: Yes
  • Connection size: M24 x 2
Specifications / All features
  • Brand: SKF
  • EAN: 7316577003614
  • Supplier number: SKF SIL 25 C
Inner diameter
25 mm
Connection type
Inner thread
Thread type
Metric fine
Seal (bearing)
Without seal
Maintenance free
Yes
Connection size
M24 x 2

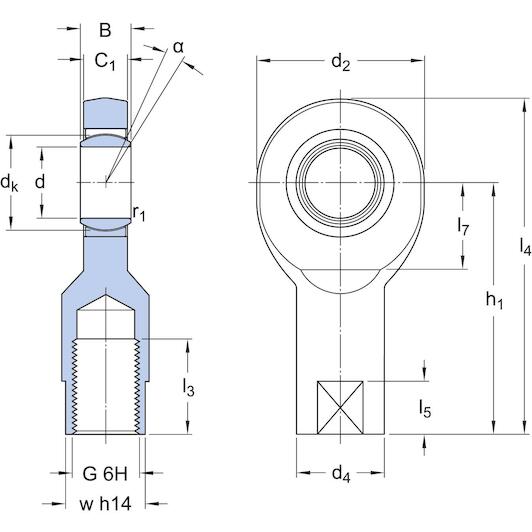

Bore diameter, bearing inner ring
25
Attachment feature, rod end shank
Left-hand female thread
Material, housing
Steel
Sliding contact surface combination
Steel/PTFE sintered bronze
Housing length, total
128
Maintenance
Maintenance-free
Thread designation
M 24x2
Material, outer ring
Deep-drawing steel
Outside diameter, housing eye
65
Sealing
Without
Basic static load rating
90
Material, inner ring
Bearing steel
Width, bearing inner ring
20
Width, housing eye
18
Basic dynamic load rating
51
Centre height, housing (from end of shank)
94
