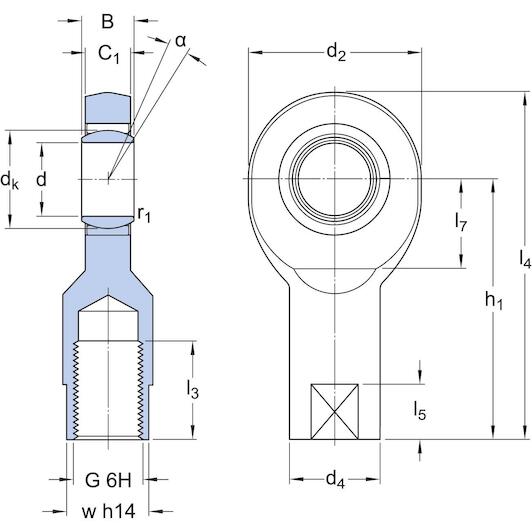

SKF SIL 8 E Rod head with female thread, left-hand thread 8 mm, M 8

Supplier number: SKF SIL 8 E | EAN 7316577003522
Recommended Retail Price €120.79
59.60 tax incl.
€49.26 excl. VAT (incl. all environmental contributions)
On order: delivered from 20/10/2026

  • Ordered before 20:00 - delivered as of 20/10/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL
  • Delivered from Belgium


€59.60
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 8 mm
  • Connection type: Internal thread
  • Thread type: Metric - Left
  • Sealing (bearing): Without seals
  • Maintenance free: Nein
  • Connection size: M8

Product description

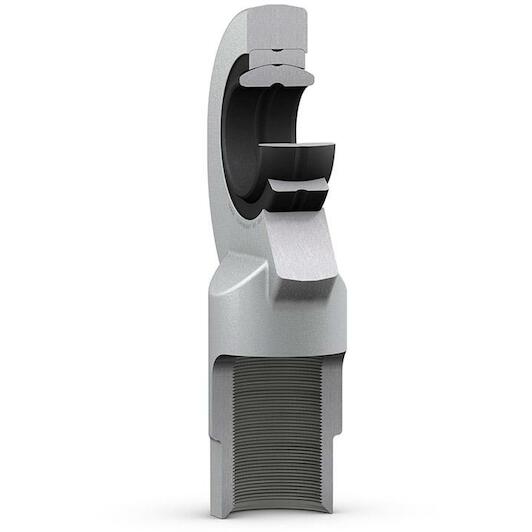

These SKF rod ends contain a spherical plain bearing with a steel/steel sliding contact surface combination. The bearing requires maintenance and can only be relubricated from the side. The female thread is available with a left- (prefix SIL) or right-hand thread.

  • Suitable for heavy static, alternating or impact loads
  • Simple and ready-to-mount

Documents

All Features

Inner diameter
8 mm
Connection type
Internal thread
Thread type
Metric - Left
Sealing (bearing)
Without seals
Maintenance free
Nein
Connection size
M8
Bore diameter, bearing inner ring
8
Attachment feature, rod end shank
Left-hand female thread
Material, housing
Steel
Sliding contact surface combination
Steel/steel, standard
Housing length, total
50
Maintenance
Relubrication required
Thread designation
M 8
Material, outer ring
Bearing steel
Outside diameter, housing eye
25
Sealing
Without
Basic static load rating
12.9
Material, inner ring
Bearing steel
Width, bearing inner ring
8
Width, housing eye
6.5
Basic dynamic load rating
5.5
Centre height, housing (from end of shank)
36
  • Brand SKF
  • EAN 7316577003522
  • Supplier number SKF SIL 8 E
