SKF SIQG 20 ES Rod head with female thread 20 mm, M 16x1.5

Recommended Retail Price €278.03

137.60 tax incl.

€113.72 excl. VAT (incl. all environmental contributions)

SKF SIQG 20 ES Rod head with female thread 20 mm, M 16x1.5

€137.60 Recommended Retail Price €278.03

On order: delivered from 28/05/2026

each

Ordered before 20:00 - delivered as of 28/05/2026
Free shipping
Delivery by DHL
Delivered from Belgium

Product information
Additional info

Product description

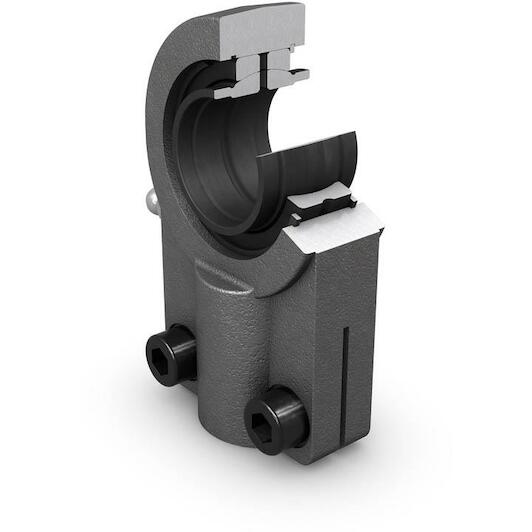

These SKF rod ends contain a spherical plain bearing with a steel/steel sliding contact surface combination. The inner ring is extended on both sides. The bearing requires maintenance and can be relubricated via grease fitting in the housing and for sizes 16 and larger also via the shaft. The female thread is available with a left- (prefix SIL) or right-hand thread.

Easy to relubricate
Suitable for heavy static, alternating or impact loads
Simple and ready-to-mount

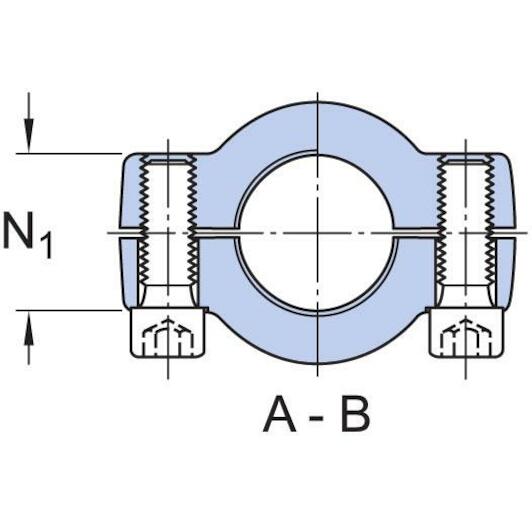

Slotted shank with clamping screws
Suitable for hydraulic cylinders
Bearing can be exchanged

Key features according to our expert

Inner diameter: 20 mm
Connection type: Inner thread
Thread type: Metric
Seal (bearing): Without seal
Maintenance free: Nein
Connection size: M16 x 1,5

Specifications / All features

Brand: SKF
01390218
EAN: 7316577042804
Supplier number: SKF SIQG 20 ES

Inner diameter: 20 mm
Connection type: Inner thread
Thread type: Metric
Seal (bearing): Without seal
Maintenance free: Nein
Connection size: M16 x 1,5

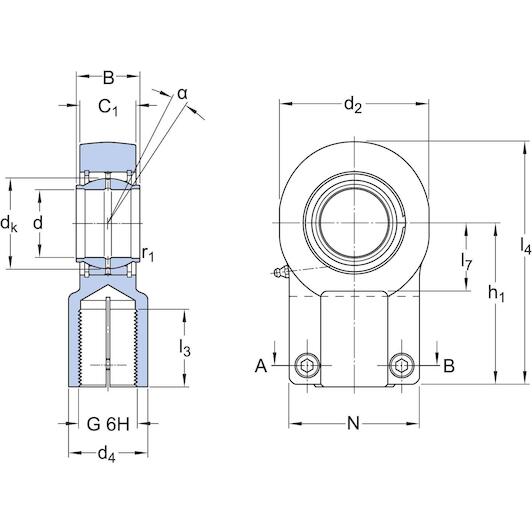

Bore diameter, bearing inner ring: 20
Attachment feature, rod end shank: Right-hand female thread and clamping screws
Material, housing: Steel
Sliding contact surface combination: Steel/steel, standard
Housing length, total: 77
Maintenance: Relubrication required
Thread designation: M 16x1.5
Material, outer ring: Bearing steel
Outside diameter, housing eye: 48
Sealing: Without
Basic static load rating: 43
Material, inner ring: Bearing steel
Width, bearing inner ring: 20
Width, housing eye: 17.5
Basic dynamic load rating: 30
Centre height, housing (from end of shank): 52
