What is the bearing seat diameter of this housing?

The seat diameter for the bearing is 120 mm.

What material is the SKF SNL 213 made of?

The bearing housing is made of cast iron.

What is the advantage of a split pillow block housing?

The two-piece design allows easy installation, inspection, and maintenance without dismounting the shaft.

What mounting bolts are required for installation?

The housing mounts using two M16 attachment bolts with a centre distance of 230 mm.

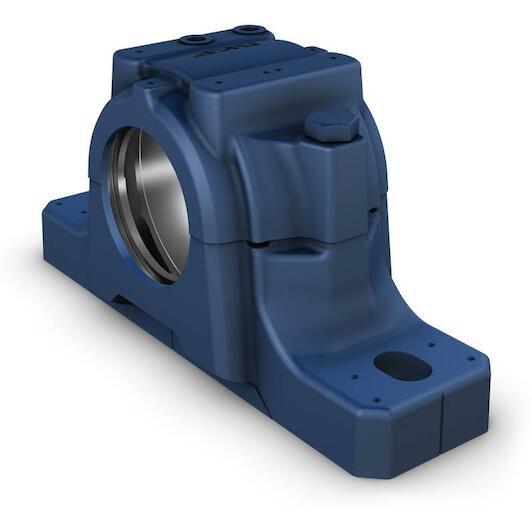

SKF SNL 213 standing bearing housing cast iron two-piece 120 mm

Supplier number: SKF SNL 213 | EAN 7316570219258

Recommended Retail Price €482.15

238.60 tax incl.

€197.19 excl. VAT (incl. all environmental contributions)

On order: delivered from 23/10/2026

Ordered before 20:00 - delivered as of 23/10/2026
Free shipping
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Rigid bearing support for machinery

Practical benefits

Durable cast iron housing: You gain dependable strength from the cast iron construction that withstands demanding mechanical loads.
Split design simplifies maintenance: The two-piece Skf design allows you to inspect and replace bearings easily without dismantling the whole shaft.
Precise 120 mm bore seat: With an exact 120 mm seating diameter, you ensure accurate bearing alignment and smooth rotation.

In a nutshell

The right choise for

With the Skf snl 213 pillow block housing, you secure a dependable foundation for demanding bearing arrangements in industrial machinery and conveyor systems. Its robust cast iron construction delivers outstanding stability, absorbs vibrations, and protects bearings from mechanical overload and premature wear. The two-piece split design allows you to inspect, service, or replace bearings quickly without having to dismount the shaft. Featuring a precision-machined 120 mm seating diameter for an exact fit, this housing installs securely using two M16 attachment bolts with a centre distance of 230 mm.

Product information FAQ

€238.60

tax incl.

Key features according to our expert

Seat diameter: 120 mm
Material (bearing housing): Cast iron

Product description

SNL plummer (pillow) block housings are the most popular SKF bearing housings on the market, developed to be the first choice for design, quality and economy. They enable the incorporated bearings to achieve maximum service life with less need for maintenance. Different housing variants and seal designs are available, making the use of tailored housings virtually unnecessary and enabling cost-effective bearing arrangements to be made.

Easy to install
Cost-effective bearing arrangement
Reduce maintenance
Minimize lubricant leakage

Documents

⤓ Technical data sheet PDF

All Features

Seat diameter: 120 mm
Material (bearing housing): Cast iron
Tightening torque, attachment bolt: 200
Bearing housing seal type: Without
Material, housing: Cast iron
Tightening torque, cap bolt: 80
Grease fill, 40%: 160
Grease fill, 20%: 100
Diameter of bearing seat: 120
Centre height (pillow block): 80
Width of bearing seat: 51
Housing type: Plummer/pillow block
Number of bolt holes for fasteners: 2
Housing configuration: Two-piece
Centre distance between bolt holes: 230
Attachment bolt diameter: 16
Mounting arrangement: Through shaft/Shaft end
Fastening bolt hole type: With holes (unspecified type)
Housing lubrication feature/possibility: Grease
Cap bolt: M12x65

Brand SKF
01231163
EAN 7316570219258
Supplier number SKF SNL 213

Frequently asked questions about this product

Answered by specialists

What is the bearing seat diameter of this housing?: The seat diameter for the bearing is 120 mm.
What material is the SKF SNL 213 made of?: The bearing housing is made of cast iron.
What is the advantage of a split pillow block housing?: The two-piece design allows easy installation, inspection, and maintenance without dismounting the shaft.
What mounting bolts are required for installation?: The housing mounts using two M16 attachment bolts with a centre distance of 230 mm.
