What is the bearing seat diameter of the SKF SNL 216 housing?

The seating diameter is 140 mm with a G7 tolerance class.

What material is this bearing housing made of?

The SKF SNL 216 housing is made of cast iron.

What is the centre height of this plummer block housing?

The centre height from base to bore centreline is 95 mm.

What is the advantage of a split housing construction?

The two-piece design greatly simplifies installation, inspection, and maintenance.

How many mounting holes are on the housing base?

The base has 2 bolt holes with a centre distance of 260 mm.

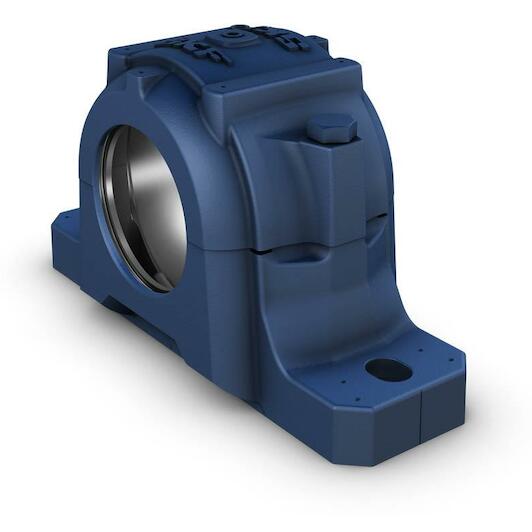

SKF SNL 216 standing bearing housing cast iron two-piece 140 mm

Supplier number: SKF SNL 216 | EAN 7316570850840

Recommended Retail Price €547.78

270.95 tax incl.

€223.93 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Ordered before 20:00 - delivered as of 12/10/2026
Free shipping
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Solid support with Skf

Practical benefits

Simplified assembly and inspection: The split housing design allows you to install and maintain bearings without dismounting the entire shaft assembly.
Durable cast iron construction: Heavy-duty cast iron delivers superior mechanical strength and ensures steady shaft alignment under load.
Precise 140 mm bore: The 140 mm seating diameter ensures an accurate, secure fit for your compatible spherical roller bearings.

In a nutshell

The right choise for

With the Skf snl 216 plummer block housing, you gain a robust and dependable shaft support solution built for demanding industrial environments. The split cast iron housing allows you to install, inspect, and replace bearings quickly without dismounting the complete shaft assembly. Its precision-machined 140 mm bearing seat with a G7 tolerance class ensures an accurate, secure fit and smooth running performance. Featuring a solid base with a 260 mm bolt hole centre distance and a 95 mm centre height, this housing easily absorbs heavy mechanical loads, helping you minimize downtime on industrial conveyors, ventilation fans, and drive systems.

Product information FAQ

€270.95

In stock - tax incl.

Key features according to our expert

Seat diameter: 140 mm
Material (bearing housing): Cast iron

Product description

SNL plummer (pillow) block housings are the most popular SKF bearing housings on the market, developed to be the first choice for design, quality and economy. They enable the incorporated bearings to achieve maximum service life with less need for maintenance. Different housing variants and seal designs are available, making the use of tailored housings virtually unnecessary and enabling cost-effective bearing arrangements to be made.

Easy to install
Cost-effective bearing arrangement
Reduce maintenance
Minimize lubricant leakage

Documents

⤓ Technical data sheet PDF

All Features

Seat diameter: 140 mm
Material (bearing housing): Cast iron
Tightening torque, attachment bolt: 385
Bearing housing seal type: Without
Material, housing: Cast iron
Tightening torque, cap bolt: 80
Grease fill, 40%: 280
Grease fill, 20%: 170
Diameter of bearing seat: 140
Centre height (pillow block): 95
Width of bearing seat: 58
Housing type: Plummer/pillow block
Number of bolt holes for fasteners: 2
Housing configuration: Two-piece
Centre distance between bolt holes: 260
Attachment bolt diameter: 20
Mounting arrangement: Through shaft/Shaft end
Fastening bolt hole type: With holes (unspecified type)
Housing lubrication feature/possibility: Grease
Cap bolt: M12x70

Brand SKF
01231165
EAN 7316570850840
Supplier number SKF SNL 216

Frequently asked questions about this product

Answered by specialists

What is the bearing seat diameter of the SKF SNL 216 housing?: The seating diameter is 140 mm with a G7 tolerance class.
What material is this bearing housing made of?: The SKF SNL 216 housing is made of cast iron.
What is the centre height of this plummer block housing?: The centre height from base to bore centreline is 95 mm.
What is the advantage of a split housing construction?: The two-piece design greatly simplifies installation, inspection, and maintenance.
How many mounting holes are on the housing base?: The base has 2 bolt holes with a centre distance of 260 mm.
