SKF

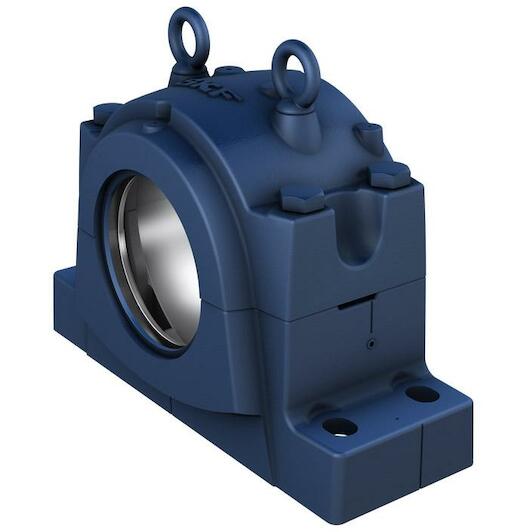

SKF SNL 3144 standing bearing housing cast iron two-piece 370 mm

Recommended Retail Price €7,826.99
3,874.95 tax incl.
€3,202.44 excl. VAT (incl. all environmental contributions)
On order: delivered from 29/05/2026
each

  • Ordered before 20:00 - delivered as of 29/05/2026
  • Free shipping
  • Delivery by DHL
  • Delivered from Belgium

Product description

SNL plummer (pillow) block housings in the 30, 31 and 32 series are robust and suitable for tough operating conditions. They enable the incorporated bearings to achieve maximum service life with less need for maintenance. Different housing variants and seal designs are available, making the use of tailored housings virtually unnecessary and enabling cost-effective bearing arrangements to be made

  • Easy to install
  • Cost-effective bearing arrangement
  • Reduce maintenance
  • Minimize lubricant leakage
Key features according to our expert
  • Seat diameter: 370 mm
  • Material (bearing housing): Cast iron

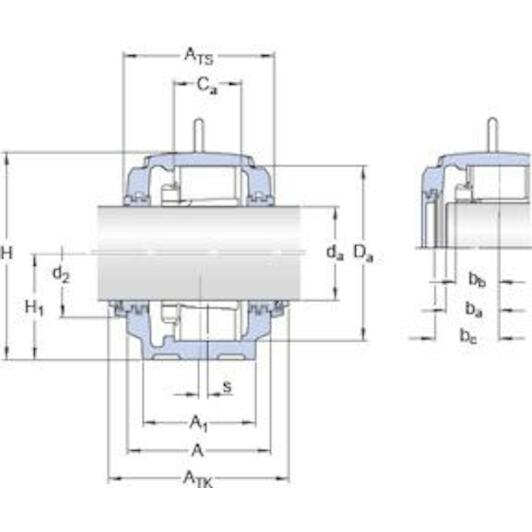

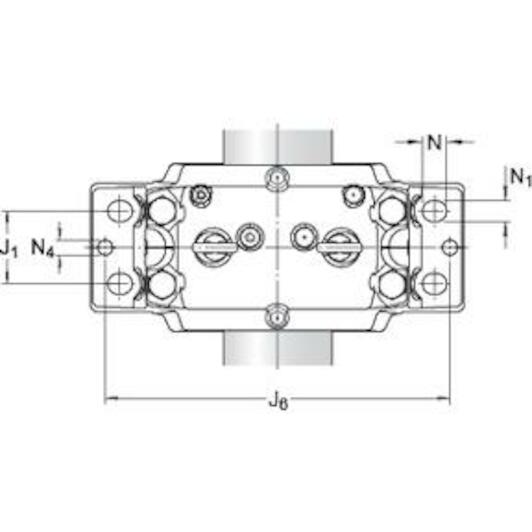

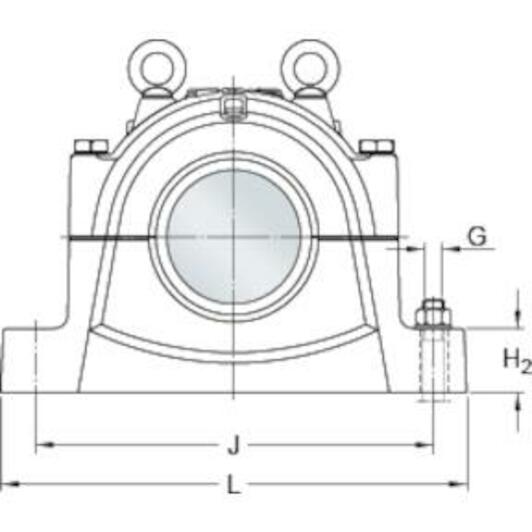

Specifications / All features
  • Brand: SKF
  • EAN: 7316571680491
  • Supplier number: SKF SNL 3144
Seat diameter
370 mm
Material (bearing housing)
Cast iron
Tightening torque, attachment bolt
1310
Bearing housing seal type
Without
Eye bolt
M20
Material, housing
Cast iron
Tightening torque, cap bolt
350
Grease fill, 40%
2700
Grease fill, 20%
1700
Diameter of bearing seat
370
Centre height (pillow block)
220
Width of bearing seat
140
Housing type
Plummer/pillow block
Number of bolt holes for fasteners
4
Housing configuration
Two-piece
Centre distance between bolt holes
540
Centre distance between bolt holes (axial direction)
140
Attachment bolt diameter
30
Mounting arrangement
Through shaft/Shaft end
Fastening bolt hole type
With holes (unspecified type)
Housing lubrication feature/possibility
Grease
Cap bolt
M24x160
