SKF

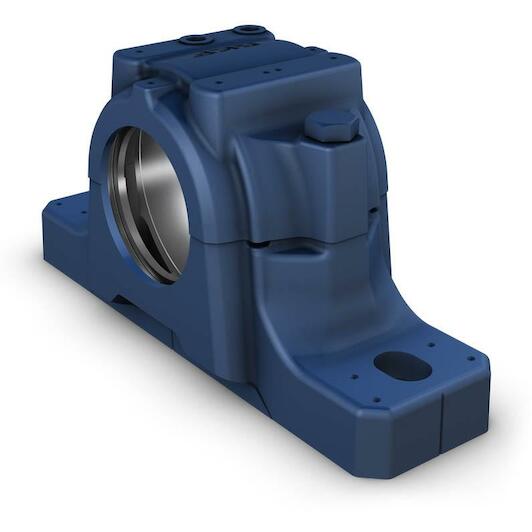

SKF SNL 511-609 standing bearing housing cast iron two-piece 100 mm

Recommended Retail Price €289.78
143.40 tax incl.
€118.51 excl. VAT (incl. all environmental contributions)
On stock, immediately available.
each

  • Ordered before 20:00 - delivered as of 15/05/2026
  • Free shipping
  • Delivery by DHL
  • Delivered from Belgium

Product description

SNL plummer (pillow) block housings are the most popular SKF bearing housings on the market, developed to be the first choice for design, quality and economy. They enable the incorporated bearings to achieve maximum service life with less need for maintenance. Different housing variants and seal designs are available, making the use of tailored housings virtually unnecessary and enabling cost-effective bearing arrangements to be made.

  • Easy to install
  • Cost-effective bearing arrangement
  • Reduce maintenance
  • Minimize lubricant leakage
Key features according to our expert
  • Seat diameter: 100 mm
  • Material (bearing housing): Cast iron
Specifications / All features
  • Brand: SKF
  • EAN: 7316571097411
  • Supplier number: SKF SNL 511-609
Seat diameter
100 mm
Material (bearing housing)
Cast iron
Tightening torque, attachment bolt
200
Bearing housing seal type
Without
Material, housing
Cast iron
Tightening torque, cap bolt
80
Grease fill, 40%
90
Grease fill, 20%
55
Diameter of bearing seat
100
Centre height (pillow block)
70
Width of bearing seat
44
Housing type
Plummer/pillow block
Number of bolt holes for fasteners
2
Housing configuration
Two-piece
Centre distance between bolt holes
210
Attachment bolt diameter
16
Mounting arrangement
Through shaft/Shaft end
Fastening bolt hole type
With holes (unspecified type)
Housing lubrication feature/possibility
Grease
Cap bolt
M12x60
