SKF

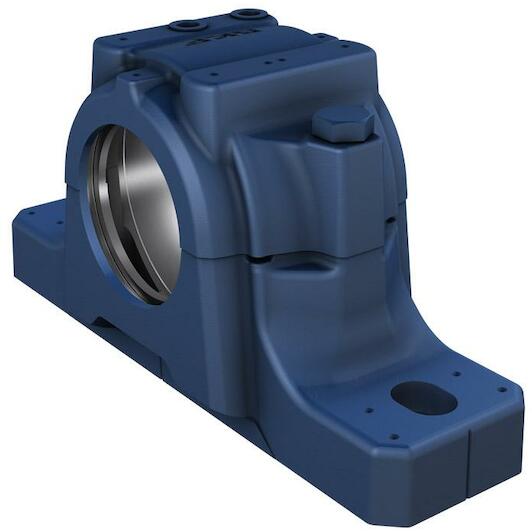

SKF SNL 520-617 K7 standing bearing housing cast iron two-piece 180 mm

Recommended Retail Price €848.40
419.95 tax incl.
€347.07 excl. VAT (incl. all environmental contributions)
On order: delivered from 28/05/2026
each

  • Ordered before 20:00 - delivered as of 28/05/2026
  • Free shipping
  • Delivery by DHL
  • Delivered from Belgium

Product description

SNL plummer (pillow) block housings are the most popular SKF bearing housings on the market, developed to be the first choice for design, quality and economy. They enable the incorporated bearings to achieve maximum service life with less need for maintenance. Different housing variants and seal designs are available, making the use of tailored housings virtually unnecessary and enabling cost-effective bearing arrangements to be made.

  • Easy to install
  • Cost-effective bearing arrangement
  • Reduce maintenance
  • Minimize lubricant leakage
Key features according to our expert
  • Seat diameter: 180 mm
  • Material (bearing housing): Cast iron
Specifications / All features
  • Brand: SKF
  • EAN: 7316571286471
  • Supplier number: SKF SNL 520-617 K7
Seat diameter
180 mm
Material (bearing housing)
Cast iron
Bearing housing seal type
Without
Material, housing
Cast iron
Diameter of bearing seat
180
Centre height (pillow block)
112
Width of bearing seat
70
Housing type
Plummer/pillow block
Housing configuration
Two-piece
Number of bolt holes for fasteners
2
Attachment bolt diameter
24
Centre distance between bolt holes
320
Mounting arrangement
Through shaft/Shaft end
Fastening bolt hole type
With holes (unspecified type)
Housing lubrication feature/possibility
Grease
Cap bolt
M 20x100
