Product information
Additional info

Product description

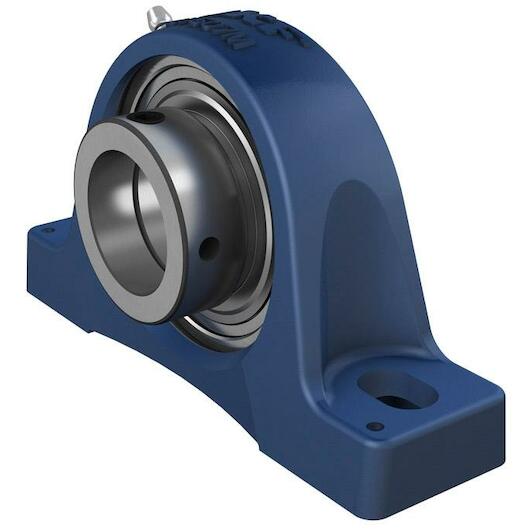

Pillow (plummer) block ball bearing units consist of an insert bearing mounted in a cast iron housing that can be bolted to a support surface. This variant is intended for use in applications where the direction of rotation is constant. It has an extended inner ring on both sides and is locked onto the shaft by an eccentric locking collar, making it easy to mount.

Strong
Ready to mount
Lubricated and sealed bearing
Designed for rotation in one direction
Accommodate static initial misalignment

Key features according to our expert

Shaft diameter: 35 mm
Bore type: Cylindrical
Material (bearing housing): Cast iron
Material (bearing): Steel

Specifications / All features

Brand: SKF
01191083
EAN: 7316570886825
Supplier number: SKF SY 35 WF

Shaft diameter: 35 mm
Bore type: Cylindrical
Material (bearing housing): Cast iron
Material (bearing): Steel
Number of bolt holes for fasteners: 2
Lubricant: Grease
Rubber seating ring: Without
Sealing type: Contact, standard
Sealing, bearing: Seal and flinger on both sides
Material, bearing: Bearing steel
Housing type: Pillow block
Material, housing: Cast iron
Basic static load rating: 15.3
Note: Limiting speed with shaft tolerance h6
Hexagonal key size for set screw: 5
Tightening torque, set screw: 16.5
Centre height (pillow block): 47.6
Grease fitting: With
Application: For material handling applications; For air handling applications
Retaining feature, inner ring: Eccentric collar
Bearing width, total: 51.1
Basic dynamic load rating: 25.5
Coating: Without
Housing overall width: 45
Centre distance between bolt holes: 126
Relubrication hole: With
Fastening bolt hole type: Plain
Limiting speed: 5300
Sealing, unit: Optional end cover
Attachment bolt diameter: 12
Set screw: M10x1
