Which bearings are compatible with the SKF SYF 505 housing?

It is designed for SKF insert bearings with a 52 mm spherical outside diameter.

Is the insert bearing included with this product?

No, this product includes only the cast iron pillow block housing without the insert bearing.

What material is the housing made of?

The housing is made of durable cast iron, providing high rigidity and load capacity.

How is this short-base pillow block mounted?

It bolts directly to a support surface via two M10 threaded attachment holes in the base.

Can the fitted bearing be relubricated through this housing?

Yes, the housing is equipped with a relubrication hole and a grease fitting.

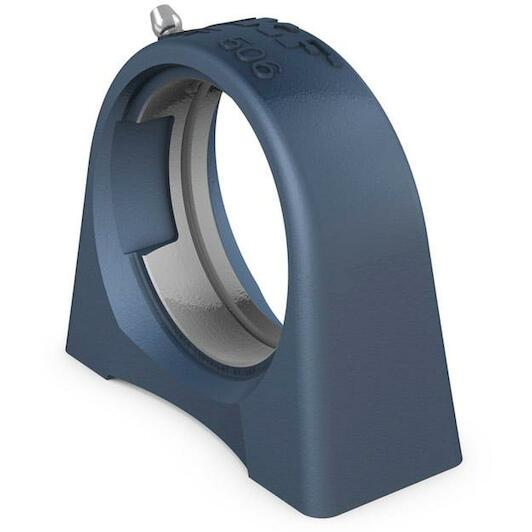

SKF SYF 505 standing bearing housing cast iron 52 mm

Supplier number: SKF SYF 505 | EAN 7316571076119

Recommended Retail Price €57.29

28.20 tax incl.

€23.31 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 5 products in stock.

Ordered before 20:00 - delivered tomorrow 10/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Robust mounting with Skf

Practical benefits

Sturdy cast iron housing: The solid cast iron build delivers high stiffness to easily support heavy loads from various directions.
Compact short base design: Thanks to the narrow footprint with a short base, you mount it easily onto confined support surfaces.
Precise 52 mm seat: The 52 mm spherical seating diameter provides a secure and accurate fit for your insert bearings.

In a nutshell

The right choise for

With the Skf syf 505 pillow block housing, you mount rotating shafts reliably onto confined support surfaces. Thanks to its compact short base design, this cast iron housing fits seamlessly into industrial conveyors, agricultural machinery or packaging equipment with limited space. The solid cast iron construction delivers high stiffness, absorbing heavy multidirectional loads while reducing vibrations. Its precise 52 mm spherical seat ensures a secure fit for your insert bearing. You bolt the housing firmly in place using the two M10 threaded holes in the base, while the integrated grease fitting allows for effortless relubrication.

Product information FAQ

€28.20

In stock - tax incl.

Key features according to our expert

Seat diameter: 52 mm
Material (bearing housing): Cast iron

Product description

Short base pillow (plummer) block housings are designed to accommodate an insert bearing. They are strong, stiff and cost-effective, and are suitable for most applications. The housings has threads for attachment bolts so that it can be bolted directly to a support surface.

Accommodate heavy loads in different directions
Strong
High degree of stiffness
Narrow design

Documents

⤓ Technical data sheet PDF

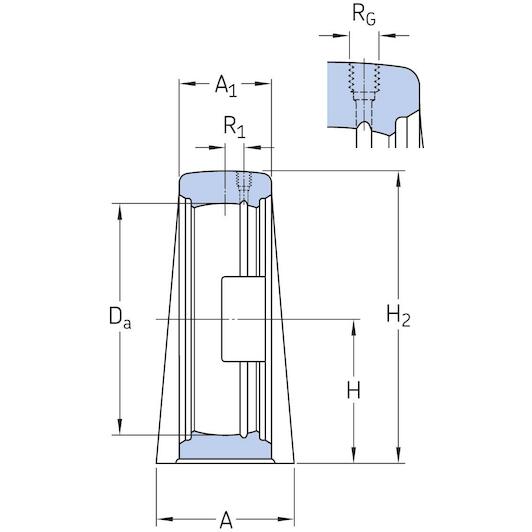

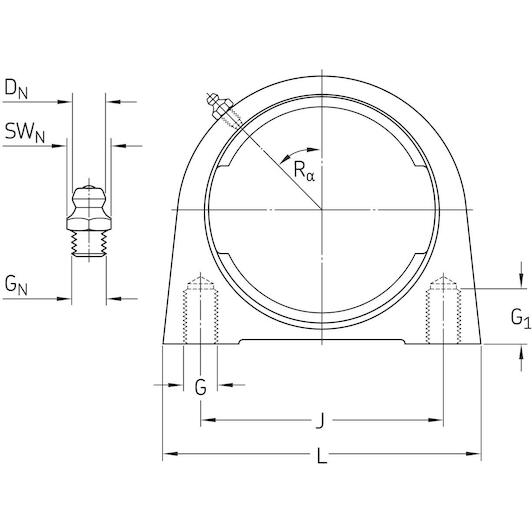

All Features

Seat diameter: 52 mm
Material (bearing housing): Cast iron
Grease fitting: With
Centre height (pillow block): 36.5
Spherical seating diameter: 52
Housing type: Pillow block
Number of bolt holes for fasteners: 2
Centre distance between bolt holes: 50.8
Fastening bolt hole type: Threaded
Relubrication hole: With
Housing overall width: 36
Coating: Without
Material, housing: Cast iron

Brand SKF
01190736
EAN 7316571076119
Supplier number SKF SYF 505

Frequently asked questions about this product

Answered by specialists

Which bearings are compatible with the SKF SYF 505 housing?: It is designed for SKF insert bearings with a 52 mm spherical outside diameter.
Is the insert bearing included with this product?: No, this product includes only the cast iron pillow block housing without the insert bearing.
What material is the housing made of?: The housing is made of durable cast iron, providing high rigidity and load capacity.
How is this short-base pillow block mounted?: It bolts directly to a support surface via two M10 threaded attachment holes in the base.
Can the fitted bearing be relubricated through this housing?: Yes, the housing is equipped with a relubrication hole and a grease fitting.
