What is the SKF SYF 510 used for?

This short base pillow block housing is designed to accommodate an insert bearing (Y-bearing) on a support surface.

What is the housing seat diameter of this unit?

The spherical seating diameter of the SKF SYF 510 is 90 mm.

What material is the housing made of?

It is made of durable cast iron, providing high rigidity and strength under load.

Is the insert bearing included with the SKF SYF 510?

No, this item includes the cast iron housing only and does not come with an insert bearing.

How do you mount this short base housing?

You bolt it directly to the mounting surface using the two threaded holes in its base.

SKF SYF 510 standing bearing housing cast iron 90 mm

Supplier number: SKF SYF 510 | EAN 7316570909845

Recommended Retail Price €119.71

59.20 tax incl.

€48.93 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered tomorrow 10/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Reliable shaft support with Skf

Practical benefits

Robust cast iron housing: Thanks to the solid cast iron design, you benefit from a stiff and durable body that easily handles heavy radial loads.
Space saving short base: The compact base with threaded bolt holes allows you to bolt the unit directly onto tight mounting surfaces.
Precise 90 mm seating: The accurately machined 90 mm spherical seating ensures you achieve stable alignment and smooth operation for your insert bearing.

In a nutshell

The right choise for

With the Skf syf 510 cast iron pillow block housing, you can mount insert bearings with total stability, even where space is tight. Thanks to the compact short base with threaded mounting holes, you can bolt the housing directly onto narrow surfaces where standard pillow blocks will not fit. Its solid cast iron construction delivers exceptional rigidity and easily handles heavy radial loads across machinery and conveyor systems. The accurately machined 90 mm spherical seating ensures stable alignment and support for your insert bearing. This allows you to achieve dependable, long-lasting shaft support in demanding industrial and agricultural setups.

Product information FAQ

€59.20

In stock - tax incl.

Key features according to our expert

Seat diameter: 90 mm
Material (bearing housing): Cast iron

Product description

Short base pillow (plummer) block housings are designed to accommodate an insert bearing. They are strong, stiff and cost-effective, and are suitable for most applications. The housings has threads for attachment bolts so that it can be bolted directly to a support surface.

Accommodate heavy loads in different directions
Strong
High degree of stiffness
Narrow design

Documents

⤓ Technical data sheet PDF

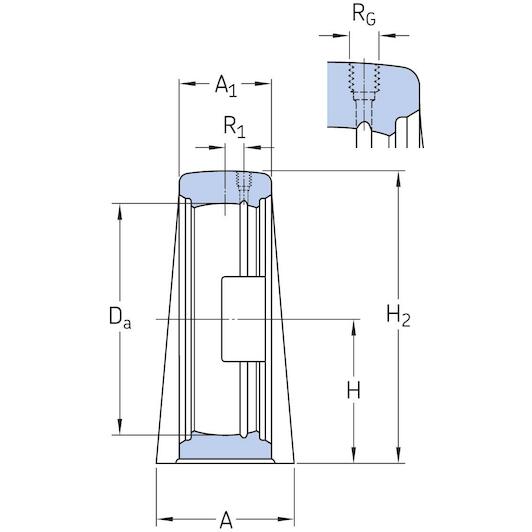

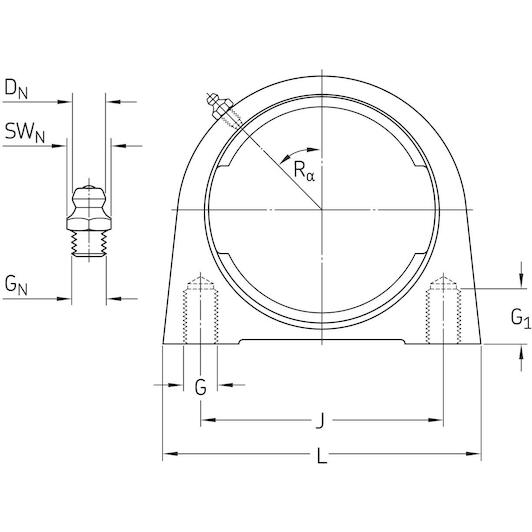

All Features

Seat diameter: 90 mm
Material (bearing housing): Cast iron
Grease fitting: With
Centre height (pillow block): 57.2
Spherical seating diameter: 90
Housing type: Pillow block
Number of bolt holes for fasteners: 2
Centre distance between bolt holes: 101.6
Fastening bolt hole type: Threaded
Relubrication hole: With
Housing overall width: 54
Coating: Without
Material, housing: Cast iron

Brand SKF
01193085
EAN 7316570909845
Supplier number SKF SYF 510

Frequently asked questions about this product

Answered by specialists

What is the SKF SYF 510 used for?: This short base pillow block housing is designed to accommodate an insert bearing (Y-bearing) on a support surface.
What is the housing seat diameter of this unit?: The spherical seating diameter of the SKF SYF 510 is 90 mm.
What material is the housing made of?: It is made of durable cast iron, providing high rigidity and strength under load.
Is the insert bearing included with the SKF SYF 510?: No, this item includes the cast iron housing only and does not come with an insert bearing.
How do you mount this short base housing?: You bolt it directly to the mounting surface using the two threaded holes in its base.
