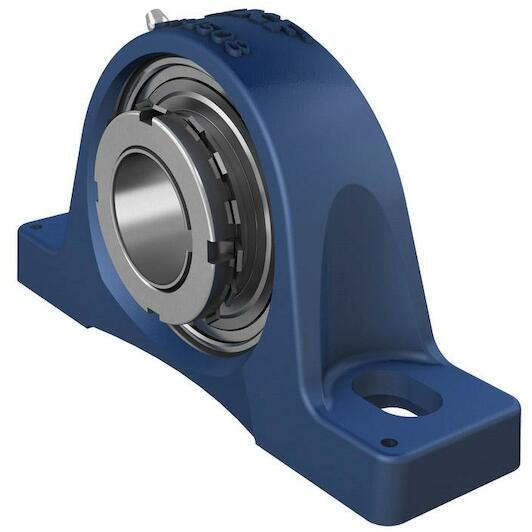

SKF SYJ 35 KF ball bearing unit 30 mm

SKF
Supplier number: SKF SYJ 35 KF | EAN 7316570122169
Recommended Retail Price €147.67
72.95 tax incl.
€60.29 excl. VAT (incl. all environmental contributions)
On order: delivered from 16/10/2026

  • Ordered before 20:00 - delivered as of 16/10/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL
  • Delivered from Belgium
↓ Documents (1) ✆ Talk to a specialist


Product information
€72.95
tax incl.

Product information

Key features according to our expert

  • Shaft diameter: 30 mm
  • Bore type: Tapered
  • Material (bearing housing): Cast iron
  • Material (bearing): Steel

Product description

Pillow (plummer) block ball bearing units consist of an insert bearing mounted in a cast iron housing that can be bolted to a support surface. This variant is suitable for applications with both constant and alternating directions of rotation. It is locked with an adapter sleeve, enabling quick and easy mounting onto the shaft. Adapter sleeve needs to be ordered separately.

  • Strong
  • Ready to mount
  • Designed for a constant and alternating rotation
  • Lubricated and sealed bearing
  • Quick locking onto the shaft
  • Cost-effective

Documents

⤓ Technical data sheet PDF

All Features

Shaft diameter
30 mm
Bore type
Tapered
Material (bearing housing)
Cast iron
Material (bearing)
Steel
Grease fitting
With
Tightening angle
100
Centre height (pillow block)
47.6
Housing type
Pillow block
Retaining feature, inner ring
Adapter sleeve
Sealing, bearing
Seal and flinger on both sides
Sealing type
Contact, standard
Rubber seating ring
Without
Lubricant
Grease
Number of bolt holes for fasteners
2
Basic static load rating
15.3
Bearing width, total
30.5
Material, bearing
Bearing steel
Sealing, unit
Without
Centre distance between bolt holes
129
Attachment bolt diameter
14
Limiting speed
5300
Fastening bolt hole type
Plain
Relubrication hole
With
Associated mounting tool
HN 7
Housing overall width
46
Basic dynamic load rating
25.5
Coating
Without
Material, housing
Cast iron
  • Brand SKF
  • EAN 7316570122169
  • Supplier number SKF SYJ 35 KF
