SKF SYJ 65 KF ball bearing unit 60 mm

SKF
Supplier number: SKF SYJ 65 KF | EAN 7316571200743
Recommended Retail Price €514.07
254.40 tax incl.
€210.25 excl. VAT (incl. all environmental contributions)
On order: delivered from 30/10/2026

  • Ordered before 20:00 - delivered as of 30/10/2026
  • Free shipping
  • Delivery by DHL
  • Delivered from Belgium
↓ Documents (1) ✆ Talk to a specialist


Product information
€254.40
tax incl.

Product information

Key features according to our expert

  • Shaft diameter: 60 mm
  • Bore type: Tapered
  • Material (bearing housing): Cast iron
  • Material (bearing): Steel

Product description

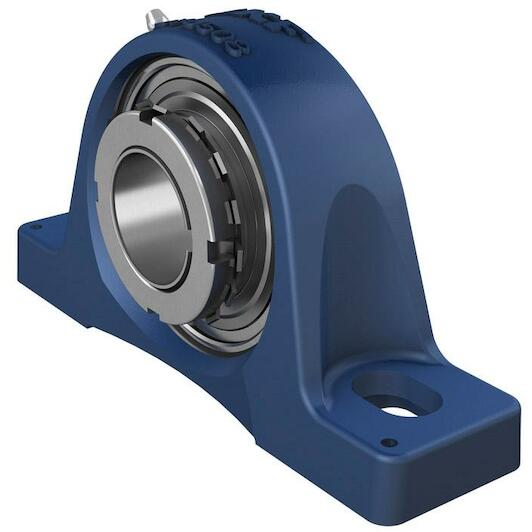

Pillow (plummer) block ball bearing units consist of an insert bearing mounted in a cast iron housing that can be bolted to a support surface. This variant is suitable for applications with both constant and alternating directions of rotation. It is locked with an adapter sleeve, enabling quick and easy mounting onto the shaft. Adapter sleeve needs to be ordered separately.

  • Strong
  • Ready to mount
  • Designed for a constant and alternating rotation
  • Lubricated and sealed bearing
  • Quick locking onto the shaft
  • Cost-effective

Documents

⤓ Technical data sheet PDF

All Features

Shaft diameter
60 mm
Bore type
Tapered
Material (bearing housing)
Cast iron
Material (bearing)
Steel
Grease fitting
With
Tightening angle
100
Centre height (pillow block)
76.2
Housing type
Pillow block
Retaining feature, inner ring
Adapter sleeve
Sealing, bearing
Seal and flinger on both sides
Sealing type
Contact, standard
Rubber seating ring
Without
Lubricant
Grease
Number of bolt holes for fasteners
2
Basic static load rating
40
Bearing width, total
43.4
Material, bearing
Bearing steel
Sealing, unit
Without
Centre distance between bolt holes
203
Attachment bolt diameter
20
Limiting speed
3000
Fastening bolt hole type
Plain
Relubrication hole
With
Associated mounting tool
HN 13
Housing overall width
70
Basic dynamic load rating
57.2
Coating
Without
Material, housing
Cast iron
  • Brand SKF
  • EAN 7316571200743
  • Supplier number SKF SYJ 65 KF
