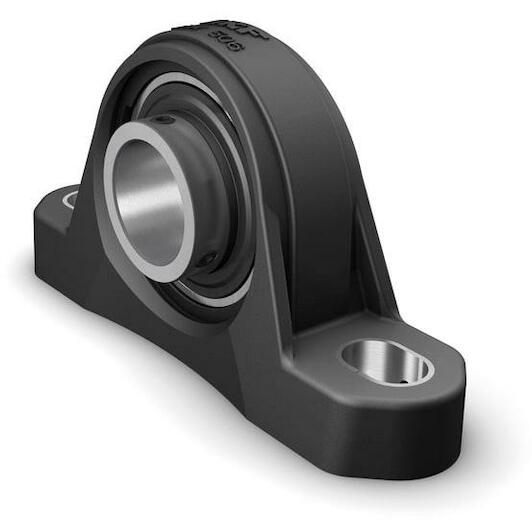

SKF SYK 20 TR ball bearing unit 20 mm

SKF
Supplier number: SKF SYK 20 TR | EAN 7316570979596
Recommended Retail Price €94.13
46.60 tax incl.
€38.51 excl. VAT (incl. all environmental contributions)
On order: delivered from 21/10/2026

  • Ordered before 20:00 - delivered as of 21/10/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL
  • Delivered from Belgium
↓ Documents (1) ✆ Talk to a specialist


Product information
€46.60
tax incl.

Product information

Key features according to our expert

  • Shaft diameter: 20 mm
  • Bore type: Cylindrical
  • Material (bearing housing): Composite
  • Material (bearing): Steel

Product description

Pillow (plummer) block ball bearing units consist of an insert bearing mounted in a composite housing that is lightweight but robust and has excellent corrosion resistance. This variant is suitable for applications with both constant and alternating directions of rotation. It has an inner ring extended on both sides and is locked onto the shaft by tightening a set screw on the inner ring, making it easy to mount.

  • Designed for a constant and alternating rotation
  • Excellent corrosion resistance
  • Lightweight
  • Recyclable

Documents

⤓ Technical data sheet PDF

All Features

Shaft diameter
20 mm
Bore type
Cylindrical
Material (bearing housing)
Composite
Material (bearing)
Steel
Number of bolt holes for fasteners
2
Lubricant
Grease
Rubber seating ring
Without
Sealing type
Contact, multiple
Sealing, bearing
Seal and flinger on both sides
Material, bearing
Bearing steel
Housing type
Pillow block
Material, housing
Composite
Basic static load rating
6.55
Note
Limiting speed with shaft tolerance h6
Hexagonal key size for set screw
3
Tightening torque, set screw
4
Centre height (pillow block)
33.3
Grease fitting
Without
Application
For agricultural applications
Retaining feature, inner ring
Set screws
Bearing width, total
31
Basic dynamic load rating
12.7
Coating
Without
Housing overall width
32
Centre distance between bolt holes
96.5
Relubrication hole
Without
Fastening bolt hole type
Plain
Limiting speed
5000
Sealing, unit
Optional end cover
Attachment bolt diameter
10
Set screw
M6x0.75
  • Brand SKF
  • EAN 7316570979596
  • Supplier number SKF SYK 20 TR
