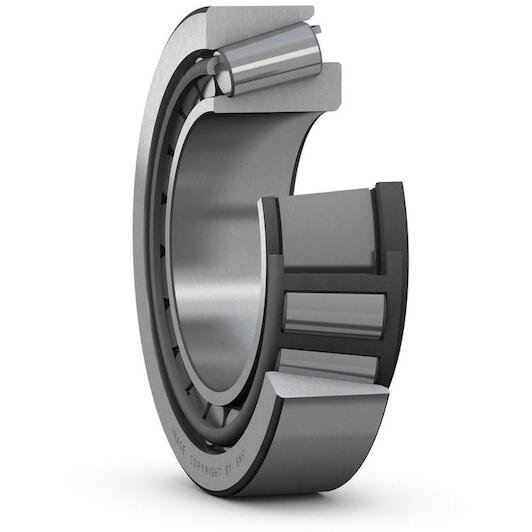

SKF T4CB 120 single-row tapered roller bearing 120 x 170 x 27 mm with 17.5° contact angle

Recommended Retail Price €906.85
448.80 tax incl.
€370.91 excl. VAT (incl. all environmental contributions)
On order: delivered from 28/05/2026
each

  • Ordered before 20:00 - delivered as of 28/05/2026
  • Free shipping
  • Delivery by DHL
  • Delivered from Belgium

Product description

Single row tapered roller bearings are designed to accommodate combined radial and axial loads and provide low friction during operation. The inner ring, with rollers and cage, can be mounted separately from the outer ring. These separable and interchangeable components facilitate mounting, dismounting and maintenance. By mounting one single row tapered roller bearing against another and applying a preload, a rigid bearing application can be achieved.

  • High radial and axial load carrying capacity
  • Accommodate axial loads in one direction
  • Low friction and long service life
  • Separable and interchangeable components
Key features according to our expert
  • Inner diameter: 120 mm
  • Number of rows: 1
  • Outer diameter: 170 mm
  • Width: 27 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316570643411
  • Supplier number: SKF T4CB 120
Inner diameter
120 mm
Number of rows
1
Outer diameter
170 mm
Width
27 mm
Bore type
Cylindrical
Cage
Sheet metal
Width, outer ring
19.5
Lubricant
None
Arrangement of contact angle (double-row bearing)
Not applicable
Reference speed
2800
Relubrication feature
Without
Matched arrangement
No
Basic static load rating
250
Bearing part
Complete bearing
Locating feature, bearing outer ring
None
Sealing
Without
Skf performance class
SKF Explorer
Width, inner ring
25
Width, total
27
Contact angle
17.500000000043
Limiting speed
3600
Bore diameter
120
Basic dynamic load rating
195
Coating
Without
Outside diameter
170
Unit system
Metric
