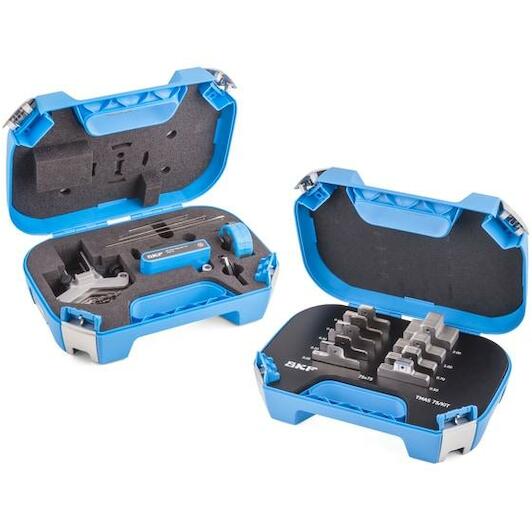

SKF TKSA 11/KIT75 shaft alignment device with set of shims in case

Scope of delivery

• Measuring unit
• 3x reference bars (3.9, 5.9 and 2 in.)
• 2x axle brackets with chains 480 mm (18.9 in.) and threaded rods 80 mm (3.1 in.)
• Micro-USB to USB charging cable
• Measuring tape
• Printed calibration and conformity certificate
• Printed quick start guide (EN)
• Set of shims TMAS 75
• SKF carrying case

Product description

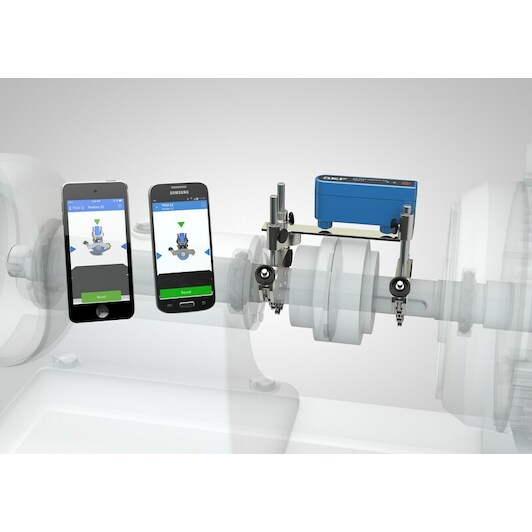

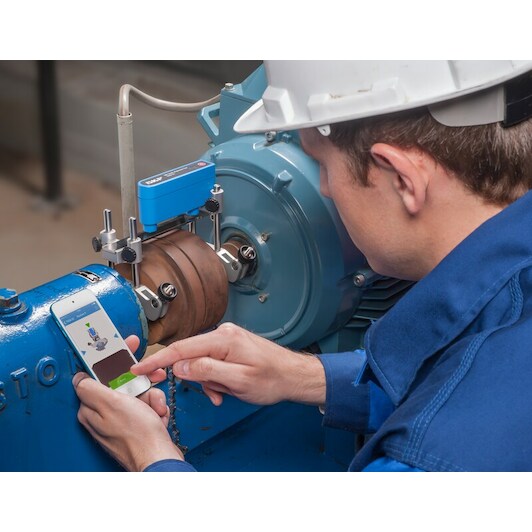

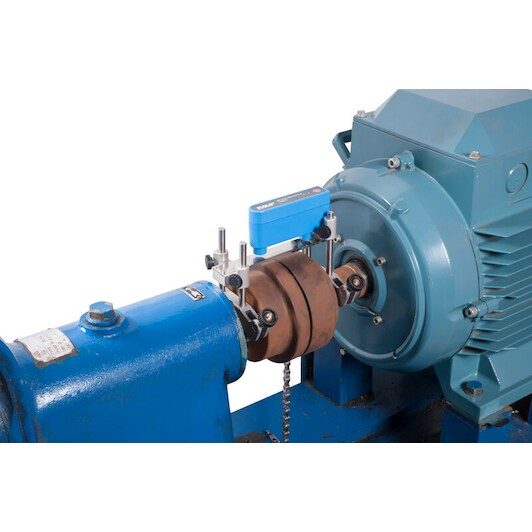

The TKSA 11/KIT75 includes the TKSA 11 shaft alignment instrument and the TMAS 75 shim kit. The TKSA 11 uses smartphones and tablets to intuitively guide the user through the shaft alignment process. The TKSA 11 is designed for core alignment tasks and is very easy-to-use. The small size makes the instrument ideal for quick checks during inspection routes and compact installations. The SKF TKSA uses inductive proximity sensors, enabling accurate and reliable shaft alignment. The SKF Machinery shim kit, for accurate machine adjustment, is included.

• Live view for intuitive measurements and easy horizontal corrections
• Fully functional demonstration mode in free app
• Fast return on investment and very affordable
• Inductive proximity sensors are not affected by bright sunlight, increase the robustness of the instrument and reduce the influence of backlash
• Automatic alignment reports can be customised with notes and pictures and can easily be exported as pdf
• Also available as complete ready-to-use system with rugged, industrial display device and pre-installed apps
• Shim kit is included
