Which devices are compatible with the SKF TKSA 51?

The system connects wirelessly via Bluetooth to iOS and Android smartphones and tablets using free SKF apps.

What is the maximum measurement distance between the units?

The measuring units operate accurately across a distance range of 0.07 to 5 m.

What is the minimum shaft rotation required for a measurement?

Measurements require a total rotation of only 40°, making it suitable for applications with limited space.

What shaft diameters can this kit accommodate?

With the included standard chains and extension chains, the system fits shaft diameters up to 450 mm.

Can this system measure vertical machines and soft foot?

Yes, dedicated SKF apps support horizontal and vertical shaft alignments as well as soft foot detection and correction.

SKF TKSA 51 shaft alignment device

Supplier number: SKF TKSA 51 | EAN 7316576798863

6,943.95 tax incl.

€5,738.80 excl. VAT (incl. all environmental contributions)

On order: delivered from 24/10/2026

Ordered before 20:00 - delivered as of 24/10/2026
Free shipping
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Precise wireless shaft alignment made easy

Practical benefits

Flexible measurement at any angle: You can perform measurements in confined spaces with a minimal shaft rotation of only 40 degrees.

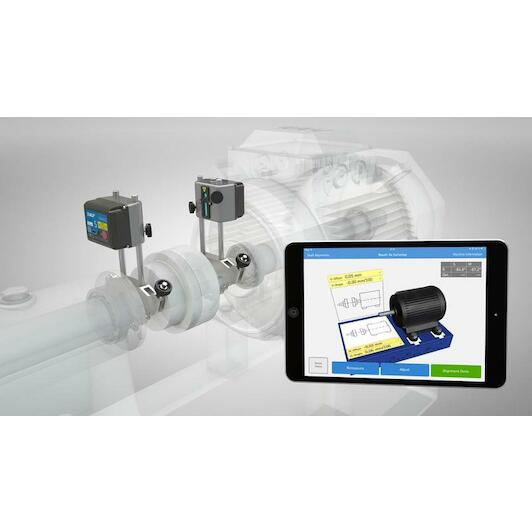

Realtime 3D live view: The Skf TKSA 51 system displays live horizontal and vertical corrections directly on your mobile device.
Automated customized PDF reports: You generate complete alignment reports with touchscreen signatures, notes, and machine pictures ready for instant sharing.

In a nutshell

The right choise for

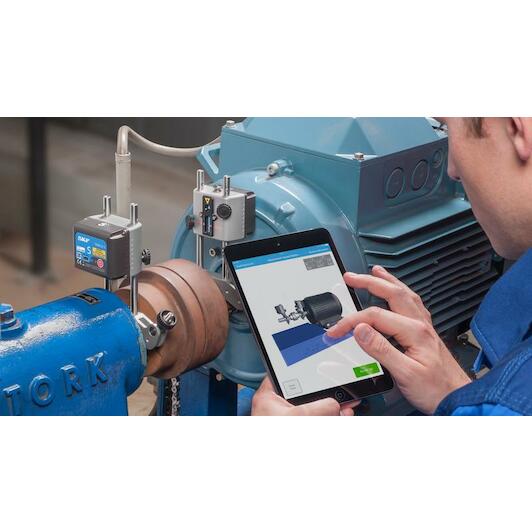

With the Skf tksa 51 wireless laser shaft alignment system, you align rotating machinery such as pumps, motors, and gearboxes with high precision. This prevents excessive vibration, coupling wear, and premature bearing failure. Wireless connectivity to your smartphone or tablet gives you real-time horizontal and vertical corrections in an intuitive 3D live view. Even in cramped spaces, a minimal shaft rotation of just 40 degrees is enough to perform accurate measurements. Supporting distances up to 5 m and shaft diameters up to 450 mm with the included chains, this kit lets you complete alignments smoothly and export detailed pdf reports on the spot.

Product information FAQ

€6,943.95

tax incl.

Key features according to our expert

Scope of delivery

Set of 2 Measuring units (M and S)
Set of 2 shaft brackets with chains 480 mm (18.9 in) and threaded rods 80 mm (3.2 in) and magnets
Set of 4 threaded extension rods 120 mm (4.7 in)
Set of 2 extension chains 980 mm (38.6 in)
Micro USB to USB split charging cable
Measuring tape
Set of 2, A5 sheets with 6 QR code stickers per sheet (total of 12 stickers)
Certificate of calibration and conformance
Quick start guide
SKF carrying case

Product description

The TKSA 51 provides high measurement flexibility and performance, suitable for entry-level to expert alignment jobs. Designed to work with the SKF shaft alignment apps on a tablet or smart phone, this intuitive tool is easy to use and requires no special training. The included accessories enable use of the TKSA 51 for a wide range of alignment applications with horizontal and vertical shafts, such as motors, drives, fans, pumps, gearboxes and more. The apps include tutorial videos to show operators how to perform accurate measurements.

Measurements can start at any angle and require a total minimal rotation of only 40 degrees
Alignment reports are generated automatically and can be customised
Reports can be exported as PDF files and shared with other mobile apps

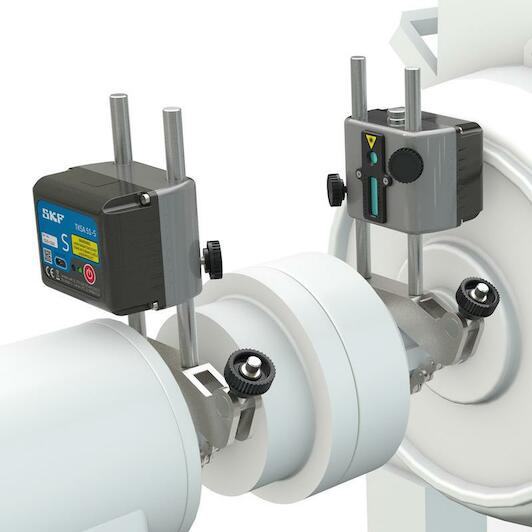

A range of components are included, such as magnetic mounting brackets, extension rods and chains
3-D live view enables 3-D rotation of the virtual motor to correspond with the actual machine position
Measurement values are averaged over time to provide accuracy in presence of vibration or other external disturbances
Is supplied in a sturdy SKF carrying case
Extensive range of accessories is available

Documents

⤓ Technical data sheet PDF

All Features

Sensors: 20 mm PSD;Inclinometer ±0.1°
Communications: Bluetooth 4.0 LE
Case dimensions (l x h x w): 360 x 110 x 260 mm (14.2 x 4.3 x 10.2 in.)
Live correction values: Vertical and horizontal
Operating temperature range: 0-45
Laser power class: 2
Operating system: min. Android 9; min. Apple iOS 9
Recommended applications: Horizontal shafts;Vertical shafts;Soft foot
Display: None, Smartphone or tablet needed
Certifications: Calibration certificate (2 years validity)
Mounting: 2x V-brackets (width 15 mm) with chains and magnets
Maximum coupling height: 45
Measuring error (percent): 1
Alignment methods: 3 position measurement 9 -12 -3;Automatic measurement;Free measurement (only 40° shaft rotation needed)
Software update: Via Apple AppStore and Google Play Store
Maximum coupling height with extension: 170
Degree of protection (ip): IP 54
Battery life: 10
Laser type: Red line
Shaft diameter: 20 to 150 mm
Material: Measurement units: anodized aluminum front and PC/ABS plastic back cover
Measurement distance: 0.07 to 5 m

Brand SKF
02664513
EAN 7316576798863
Supplier number SKF TKSA 51

Frequently asked questions about this product

Answered by specialists

Which devices are compatible with the SKF TKSA 51?: The system connects wirelessly via Bluetooth to iOS and Android smartphones and tablets using free SKF apps.
What is the maximum measurement distance between the units?: The measuring units operate accurately across a distance range of 0.07 to 5 m.
What is the minimum shaft rotation required for a measurement?: Measurements require a total rotation of only 40°, making it suitable for applications with limited space.
What shaft diameters can this kit accommodate?: With the included standard chains and extension chains, the system fits shaft diameters up to 450 mm.
Can this system measure vertical machines and soft foot?: Yes, dedicated SKF apps support horizontal and vertical shaft alignments as well as soft foot detection and correction.
