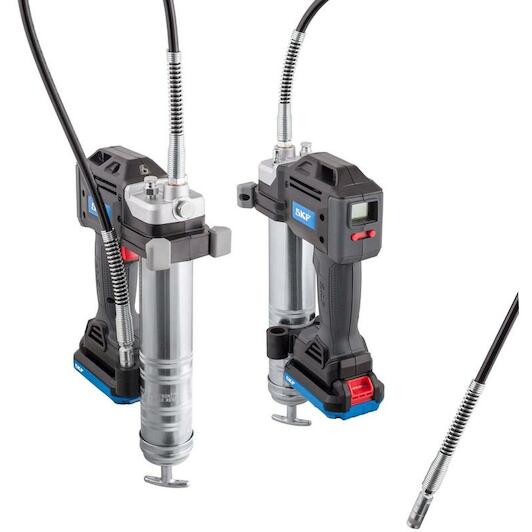

SKF TLGB 20 20V cordless grease gun

SKF
Supplier number: SKF TLGB 20 | EAN 7316576830792
This product has been discontinued.

Successor to this product

skf_tlgb20
SKF TLGB 21/230V cordless grease gun in case (1x 2.5Ah battery...
View product
↓ Documents (1) ✆ Talk to a specialist


Product information

Product information

Key features according to our expert

  • Battery voltage: 20 V
  • Capacity (battery): 1,5 Ah
  • Max. working pressure: 400 bar
  • Number of batteries included: 1

Product description

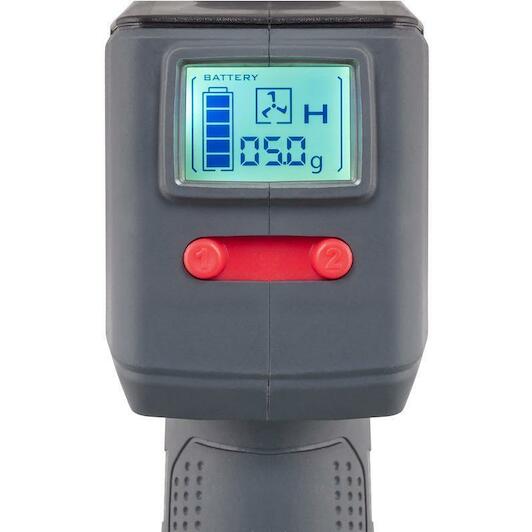

  • Developed for maximum efficiency, the SKF Battery Driven Grease Gun TLGB 20 includes an integrated grease meter to help prevent over- and under-lubrication. This unique tool features a durable, ergonomic design with a three-point stand for operator comfort and convenience and a lithium-ion battery for longer life. The tool's display indicates battery charge level, amount of grease dispensed, pump/motor speed and blocked lubrication points. This versatile grease gun provides two flow rates - low and high - and can dispense up to 15 grease cartridges per battery charge. The TLGB 20 can deliver pressures up to 700 bar (10000 psi) and features a built-in light to illuminate the work area.

Avantages

  • Integrated grease meter tracks dispensed grease
  • Battery charge display indicates lithium battery charge level
  • LED light illuminates work area to help locate grease fittings in dimly lit environments
  • Lithium-ion battery dispenses up to 15 grease cartridges per charge and maintains stable energy output

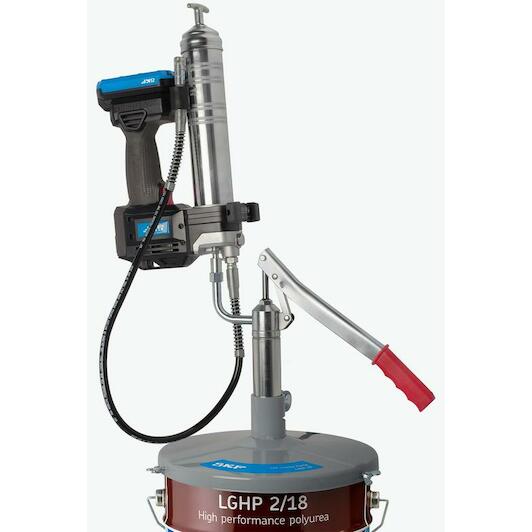

  • Filler nipple facilitates clean and simple filling from drums using filler pumps
  • Lightweight, ergonomic design with optimized balance for operator comfort

Documents

⤓ Technical data sheet PDF

All Features

Battery voltage
20 V
Capacity (battery)
1,5 Ah
Max. working pressure
400 bar
Number of batteries included
1
Grease output at 70 bar (1000 psi) - low speed (mp_)
100 ml/min
Grease output at 70 bar (1000 psi) - high speed (mp_)
160 ml/min
Total weight (mp_)
5.7 kg
Nlgi class of lubricant (max) (mp_)
2
Battery charge time (max) (mp_)
90
Operating temperature range (mp_)
-20 - 50 °C
Case dimensions (l x w x h) (mp_)
590 x 110 x 370 mm
Battery capacity (mp_)
1500 A-h
Cartridges per battery charge (mp_)
15
Battery charger (mp_)
200-240V, 50-60 Hz
Number of available pump speeds (mp_)
2
Maximum peak pressure (mp_)
700 bar
Product weight (mp_)
3 kg
Battery (mp_)
20V Li-ion battery
Maximum pressure (mp_)
40 MPa
Hose length (mp_)
900 mm
  • Brand SKF
  • EAN 7316576830792
  • Supplier number SKF TLGB 20
