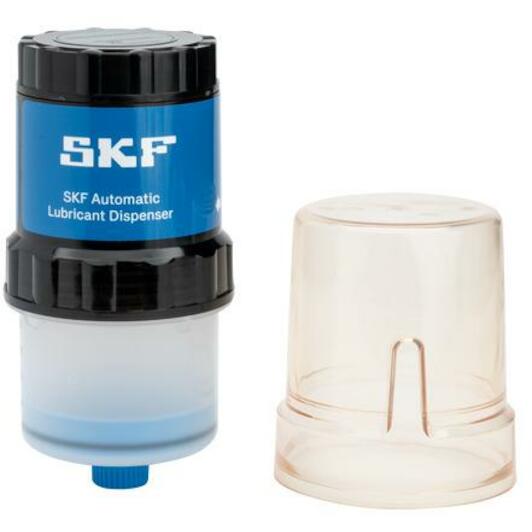

SKF TLRD 250 automatic single-point lubricator refillable 250 ml (empty)

Supplier number: SKF TLRD 250 | EAN 7316581947140

299.95 tax incl.

€247.89 excl. VAT (incl. all environmental contributions)

On order: delivered from 23/10/2026

Ordered before 20:00 - delivered as of 23/10/2026
Free shipping
Delivery by DHL
Delivered from Belgium

✆ Talk to a specialist

Product information Accessories

€299.95

tax incl.

Key features according to our expert

Capacity: 250 ml
Connection size: 1/2"
Connection type: External thread
Thread type: BSPP
Max. working pressure: 5 bar
Weight: 0,69 kg

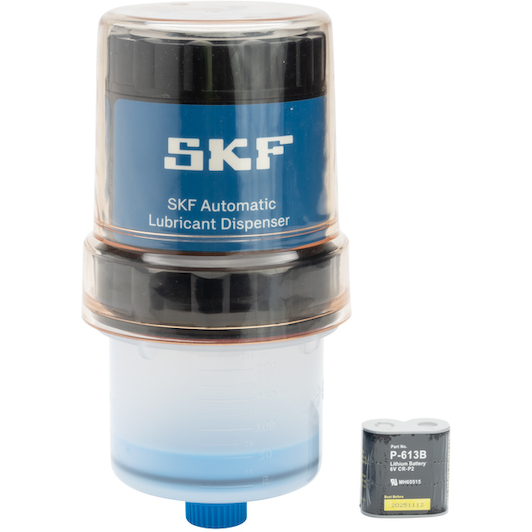

Scope of delivery

Drive unit with top cover
Empty grease container
Battery pack
Instructions for use

Product description

Battery-powered drive unit with a translucent empty cartridge which can be easily be filled with any compatible grease. Once installed and set, it automatically delivers the desired flow of grease in a continuous way. The dispense rate can be adjusted on the lubricator directly. Once empty, it can easily be refilled, equipped with a new battery pack and installed again.

Can be filled and refilled with any compatible grease
Flexible dispense rate from 1 to 12 months
LED status indicators
Compact size allows installation in restrictive areas
Suitable for both direct and remote installation
Makes lubrication easy and time effective

All Features

Capacity: 250 ml
Connection size: 1/2"
Connection type: External thread
Thread type: BSPP
Max. working pressure: 5 bar
Weight: 0,69 kg
Led indicator: Red LED flashing : feed blockage or empty battery or empty cup
Power source: Battery
Connecting thread: G 1/2
Special features: Delivered without grease. Easily fillable and refillable
Ambient temperature range: -20-60
Nominal emptying time: 1-12
Highest dispense setting: 8.2
Lowest dispense setting: 0.7
Recommended storage temperature: 0-50
Degree of protection (ip): IP 65
Dimensions (w x l x h): 102 x 102 x 196 mm
Maximum pressure: 5
Lubricator capacity: 250
Relative humidity: 0 to 75%, non-condensing
Battery type: CR-P2 Lithium
Shelf life: 2
Battery voltage: 6
Drive mechanism: Electro mechanical
Battery capacity: 1.4
Volume: Drive unit with top cover;Empty grease container;Battery pack;Instructions for use
Battery: Battery pack, 6V
Maximum feed line length: 3
