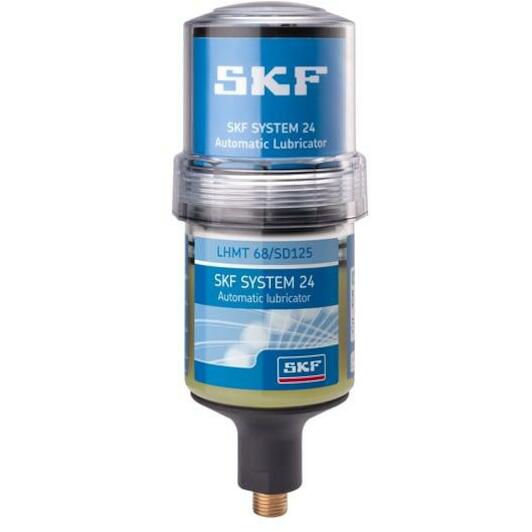

SKF TLSD 125/HMT68 automatic single-point lubrication system with LHMT 68 chain oil 125 ml

120.80 tax incl.

€99.83 excl. VAT (incl. all environmental contributions)

€120.80

On order: delivered from 26/05/2026

each

Ordered before 20:00 - delivered as of 26/05/2026
Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

Product information

Product description

TLSD 125/HMT68 is filled with SKF LHMT 68 high-performance mineral chain oil with high anti-wear protection. Our electro-mechanical single point automatic lubricators are available in many configurations, pre-filled with SKF lubricants, both as battery or cable driven. Using automatic lubricators improves employee safety, increases machine reliability and optimizes maintenance operations.

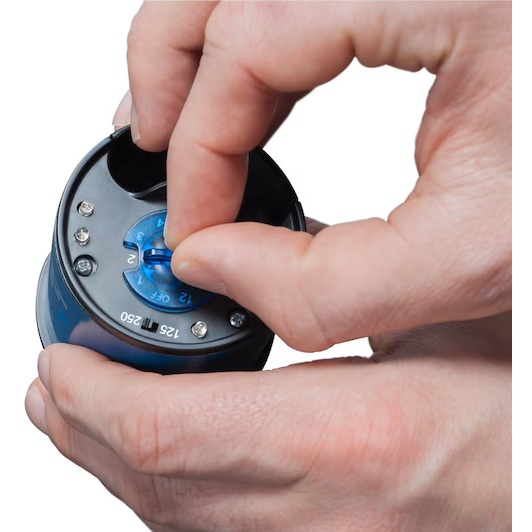

Flexible dispense rate from 1 to 12 months
Maximum discharge pressure of 5 bar during the dispensing period
LED status indicators
Compact size allows installation in restrictive areas

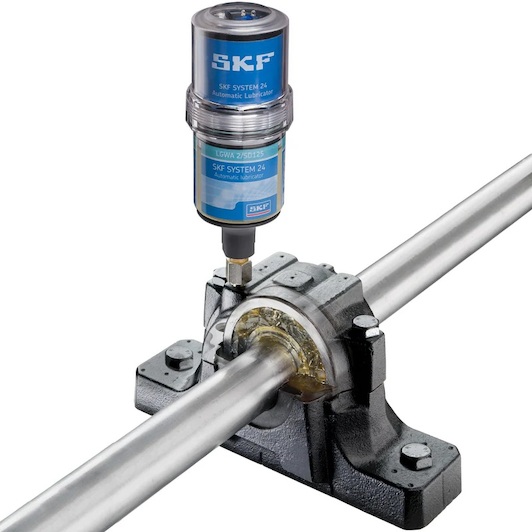

Suitable for both direct and remote installation
Supplied with support flange for enhanced sturdiness

Key features according to our expert

Capacity: 125 ml
Connection size: 1/4"
Connection type: Outer thread
Thread type: BSPP
Max. working pressure: 5 bar
Weight: 0,56 kg

Specifications / All features

Brand: SKF
02683307
EAN: 7316575835637
Supplier number: SKF TLSD 125/HMT68

Capacity: 125 ml
Connection size: 1/4"
Connection type: Outer thread
Thread type: BSPP
Max. working pressure: 5 bar
Weight: 0,56 kg
Recommended applications: Conveyor, Drive and Lift chains operating at medium temperatures;Ovens
Connecting thread: G 1/4
Ambient temperature range: 0-50
Nominal emptying time: 1-12
Highest dispense setting: 4.1
Lowest dispense setting: 0.3
Lubricant quantity: 125
Lubricant operating temperature range: -20 to +100 °C
Maximum pressure: 5
Power source: Battery pack
Lubricant: LHMT 68
Lubricant description: High-performance mineral chain oil
Degree of protection (ip): IP 65
Battery type: Alkaline manganese
Battery voltage: 4.5
Drive mechanism: Electro mechanical
Battery capacity: 2.7
Maximum feed line length: 5
