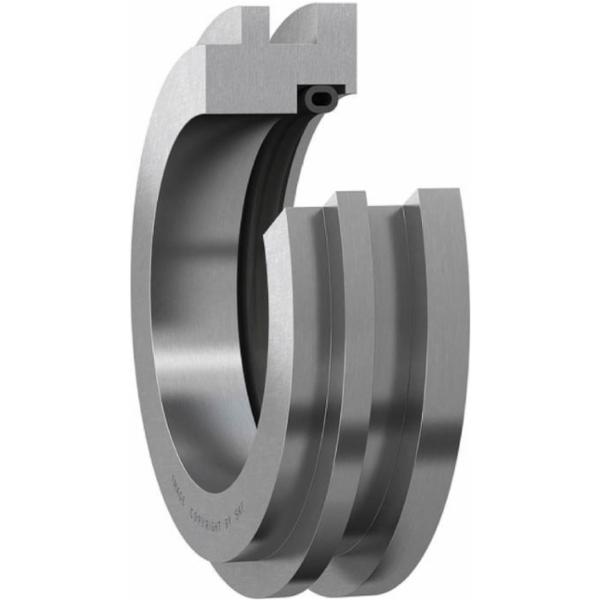

SKF TSN 206 S Labyrinth bearing housing seal

SKF
Supplier number: SKF TSN 206 S | EAN 7316570496260
This product has been discontinued.

✆ Talk to a specialist


Product information

Product information

Key features according to our expert

  • Inner diameter: 35 mm
  • Outer diameter: 52,5 mm
  • Width: 18 mm
  • Type of seal: Labyrinth seal

Product description:

  • Single or multiple labyrinth seals are more effective than simple gap seals, but are more expensive
  • They are mainly used in grease lubrication
  • Their effectiveness can be increased by regularly applying a water-insoluble grease, e.g. a lithium calcium soap grease, through a channel into the labyrinth
  • The edges of the labyrinth are directed axially for undivided houses and radially for divided houses
  • The width of the axial gap in the labyrinth remains unchanged when the shaft moves axially during operation and can therefore be very small
  • When misalignment of the shaft occurs with respect to the house, labyrinths with a sloping profile are used

All Features

Inner diameter
35 mm
Outer diameter
52,5 mm
Width
18 mm
Type of seal
Labyrinth seal
Outer diameter
52.5 mm
Material
Steel with silicone element
Shaft diameter
35 mm
Housing groove diameter
54.5 mm
Sealing type
Labyrinth
Accessory type
Housing seal
  • Brand SKF
  • EAN 7316570496260
  • Supplier number SKF TSN 206 S
