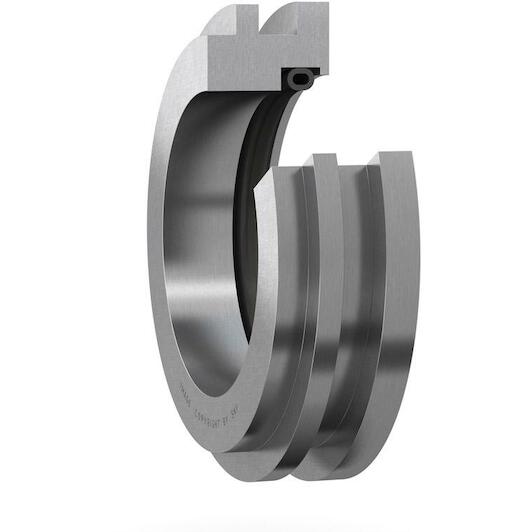

SKF TSN 530 S Labyrinth bearing housing seal

Supplier number: SKF TSN 530 S | EAN 7316570668520
Recommended Retail Price €823.59
407.60 tax incl.
€336.86 excl. VAT (incl. all environmental contributions)
On order: delivered from 23/10/2026

  • Ordered before 20:00 - delivered as of 23/10/2026
  • Free shipping
  • Delivery by DHL
  • Delivered from Belgium


€407.60
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 135 mm
  • Outer diameter: 200 mm
  • Width: 27 mm
  • Type of seal: Labyrinth seal

Product description

SNL housing seals are the first barrier against contamination. For applications where there are high speeds or extreme temperatures, SKF recommends using labyrinth seals, and for highly contaminated environments, SKF recommends the three-barrier solution. This cost-effective sealing solution can have a significant impact on bearing service life as contaminants have to pass through three barriers to reach the bearing.

  • Good protection from contamination
  • Keep the lubricant in the housing
  • Part of the three barrier solution
  • Cost-effective

Documents

All Features

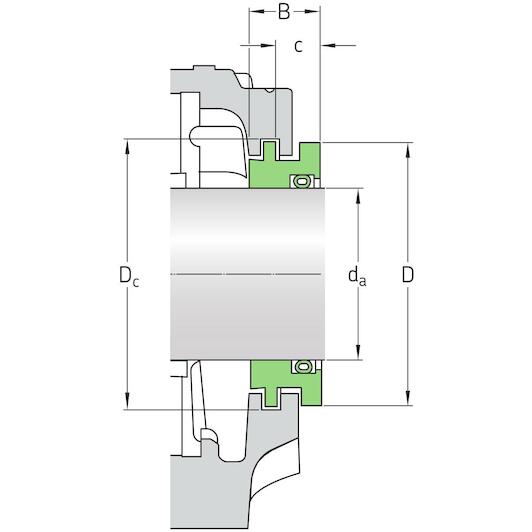

Inner diameter
135 mm
Outer diameter
200 mm
Width
27 mm
Type of seal
Labyrinth seal
Outer diameter
200
Material
Steel with silicone element
Shaft diameter
135
Housing groove diameter
202.5
Sealing type
Labyrinth
Accessory type
Housing seal
  • Brand SKF
  • EAN 7316570668520
  • Supplier number SKF TSN 530 S
