What shaft diameter is this SKF take-up unit suitable for?

This unit is designed for shafts with a diameter of 30 mm.

How is the bearing secured to the shaft?

The extended inner ring is quickly and securely locked onto the shaft using set screws.

What materials are used in this unit?

The housing is made of durable cast iron and the insert bearing is manufactured from bearing steel.

Can this take-up ball bearing unit be relubricated?

Yes, the cast iron housing is equipped with a grease fitting and relubrication hole for easy maintenance.

Is this unit suitable for alternating directions of rotation?

Yes, the unit is engineered to accommodate both constant and alternating rotational directions.

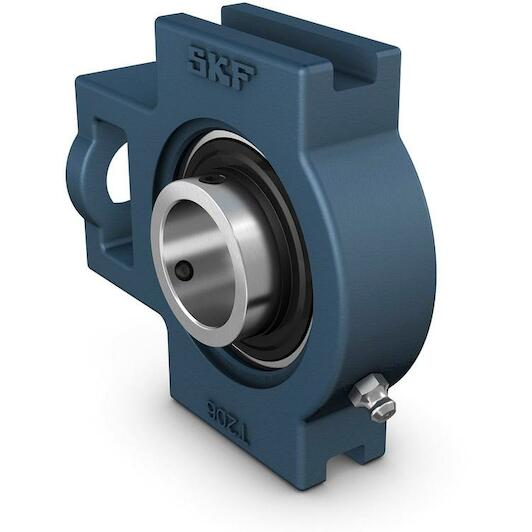

SKF TU 30 TF ball bearing unit 30 mm

Supplier number: SKF TU 30 TF | EAN 7316570121117

Recommended Retail Price €142.31

70.40 tax incl.

€58.18 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 5 products in stock.

Ordered before 20:00 - delivered tomorrow 10/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Reliable Skf take-up unit

Practical benefits

Quick and secure mounting: You mount the extended inner ring securely onto the 30 mm shaft using the integrated set screws.
Robust cast iron housing: The heavy-duty grey cast iron body withstands high mechanical loads and ensures stable alignment in tensioning frames.
Effective bearing seal protection: Contact seals keep contaminants out of the ball bearing, ensuring you achieve a long and smooth operating life.

In a nutshell

The right choise for

With the Skf tu 30 tf take-up ball bearing unit, you adjust and re-tension conveyor belts and drive systems smoothly without dismounting bearing components. Designed for 30 mm shafts, this unit delivers stable guidance in tensioning frames and easily accommodates initial static misalignment. The extended inner ring with integrated set screws allows you to lock the steel insert bearing firmly onto the shaft, perfectly supporting both constant and alternating rotational directions. Its durable cast iron housing withstands demanding industrial loads, while protective seals keep contaminants out. Equipped with a grease fitting for simple relubrication, it ensures reliable performance and a long service life.

Product information FAQ

€70.40

In stock - tax incl.

Key features according to our expert

Shaft diameter: 30 mm
Material (bearing housing): Cast iron
Material (bearing): Steel

Product description

Take-up ball bearing units, consisting of an insert bearing based on a sealed deep groove ball bearing mounted in a grey cast iron housing. Typically mounted in take-up frames, the unit has an inner ring extended on both sides and is locked by tightening a set screw on the inner ring, which makes it easy to mount.

Designed for an alternating rotation
Quick and easy to mount onto the shaft
Accommodate static initial misalignment
Long service life
Reduced noise and vibration levels

Documents

⤓ Technical data sheet PDF

All Features

Shaft diameter: 30 mm
Material (bearing housing): Cast iron
Material (bearing): Steel
Material, housing: Cast iron
Grease fitting: With
Tightening torque, set screw: 4
Hexagonal key size for set screw: 3
Note: Limiting speed with shaft tolerance h6
Application: For material handling applications
Housing type: Take-up
Bore type: Cylindrical
Material, bearing: Bearing steel
Sealing, bearing: Seal and flinger on both sides
Sealing type: Contact, standard
Rubber seating ring: Without
Lubricant: Grease
Bearing width, total: 38.1
Basic static load rating: 11.2
Retaining feature, inner ring: Set screws
Sealing, unit: Optional end cover
Limiting speed: 6300
Relubrication hole: With
Housing overall width: 37
Basic dynamic load rating: 19.5
Coating: Without
Set screw: M6x0.75

Brand SKF
01190448
EAN 7316570121117
Supplier number SKF TU 30 TF

Frequently asked questions about this product

Answered by specialists

What shaft diameter is this SKF take-up unit suitable for?: This unit is designed for shafts with a diameter of 30 mm.
How is the bearing secured to the shaft?: The extended inner ring is quickly and securely locked onto the shaft using set screws.
What materials are used in this unit?: The housing is made of durable cast iron and the insert bearing is manufactured from bearing steel.
Can this take-up ball bearing unit be relubricated?: Yes, the cast iron housing is equipped with a grease fitting and relubrication hole for easy maintenance.
Is this unit suitable for alternating directions of rotation?: Yes, the unit is engineered to accommodate both constant and alternating rotational directions.
