SKF

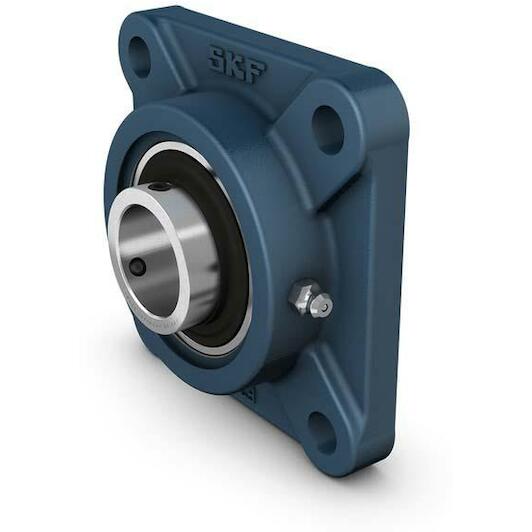

SKF UCF 212/H ball bearing unit with square flange and locking with set screw, cast iron bearing housing, JIS

Recommended Retail Price €196.06
96.95 tax incl.
€80.12 excl. VAT (incl. all environmental contributions)
On stock, immediately available. we have 1 products in stock.
each

  • Ordered before 20:00 - delivered tomorrow 16/05/2026
  • Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL
  • Delivered from Belgium

Product description

These square flanged ball bearing units are compliant with Japanese Industrial Standards (JIS). They consist of an insert bearing, with an extended inner ring and set screw locking, and are suitable for applications where the direction of rotation is constant or alternating. The bearing is mounted in a cast iron housing, which can be bolted to a machine wall or frame. Ball bearing units can accommodate moderate initial misalignment, but normally do not permit axial displacement.

  • Resist high levels of contamination
  • Designed for high temperatures and speeds
  • Accommodate relatively heavy loads
  • Cost-effective
Key features according to our expert
  • Shaft diameter: 60 mm
  • Material (bearing housing): Cast iron
  • Material (bearing): Steel
  • High temperature: No
  • Bore type: Cylindrical
  • Shape (bearing housing): Square
Specifications / All features
  • Brand: SKF
  • EAN: 7316579751629
  • Supplier number: SKF UCF 212/H
Shaft diameter
60 mm
Material (bearing housing)
Cast iron
Material (bearing)
Steel
High temperature
No
Bore type
Cylindrical
Shape (bearing housing)
Square
Material, bearing
Bearing steel
Number of bolt holes for fasteners
4
Lubricant
Grease
Rubber seating ring
Without
Sealing type
Contact, standard
Sealing, bearing
Seal and flinger on both sides
Housing type
Flanged
Flanged housing type
Square
Bearing width, total
65.1
Application
For material handling applications
Note
Limiting speed with shaft tolerance h6
Hexagonal key size for set screw
5
Grease fitting
With
Material, housing
Cast iron
Basic static load rating
36
Attachment bolt diameter
16
Retaining feature, inner ring
Set screws
Basic dynamic load rating
52.7
Coating
Without
Housing overall width
47.5
Centre distance between bolt holes
143
Relubrication hole
With
Fastening bolt hole type
Plain
Limiting speed
2700
Width, total
68.7
Sealing, unit
Optional end cover
Set screw
M10x1
