SKF

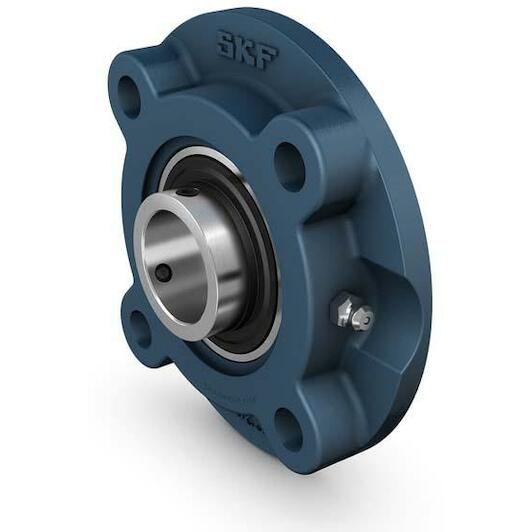

SKF UCFC 206/H ball bearing unit with round flange, widened inner ring and locking with set screw, cast iron bearing housing, JIS

Recommended Retail Price €85.66
42.40 tax incl.
€35.04 excl. VAT (incl. all environmental contributions)
On order: delivered from 02/06/2026
each

  • Ordered before 20:00 - delivered as of 02/06/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL
  • Delivered from Belgium

Product description

These round flanged ball bearing units are compliant with JIS standards. They consist of an insert bearing, with an extended inner ring and set screw locking, and are suitable for applications where the direction of rotation is constant or alternating. The bearing is mounted in a cast iron housing, which can be bolted to a machine wall or frame. Ball bearing units can accommodate moderate initial misalignment, but normally do not permit axial displacement.

  • Resist high levels of contamination
  • Designed for high temperatures and speeds
  • Accommodate relatively heavy loads
  • Cost-effective
Key features according to our expert
  • Shaft diameter: 30 mm
  • Material (bearing housing): Cast iron
  • Material (bearing): Steel
  • High temperature: No
  • Bore type: Cylindrical
  • Shape (bearing housing): Round
Specifications / All features
  • Brand: SKF
  • EAN: 7316579751711
  • Supplier number: SKF UCFC 206/H
Shaft diameter
30 mm
Material (bearing housing)
Cast iron
Material (bearing)
Steel
High temperature
No
Bore type
Cylindrical
Shape (bearing housing)
Round
Material, bearing
Bearing steel
Number of bolt holes for fasteners
4
Lubricant
Grease
Rubber seating ring
Without
Sealing type
Contact, standard
Sealing, bearing
Seal and flinger on both sides
Housing type
Flanged
Flanged housing type
Round
Bearing width, total
38.1
Application
For material handling applications
Note
Limiting speed with shaft tolerance h6
Hexagonal key size for set screw
3
Grease fitting
With
Material, housing
Cast iron
Basic static load rating
11.2
Attachment bolt diameter
10
Retaining feature, inner ring
Set screws
Basic dynamic load rating
19.5
Coating
Without
Housing overall width
30
Pitch diameter of bolt holes of round and triangle flange type housing
100
Relubrication hole
With
Fastening bolt hole type
Plain
Limiting speed
5000
Width, total
32.2
Sealing, unit
Optional end cover
Set screw
M6x0.75
