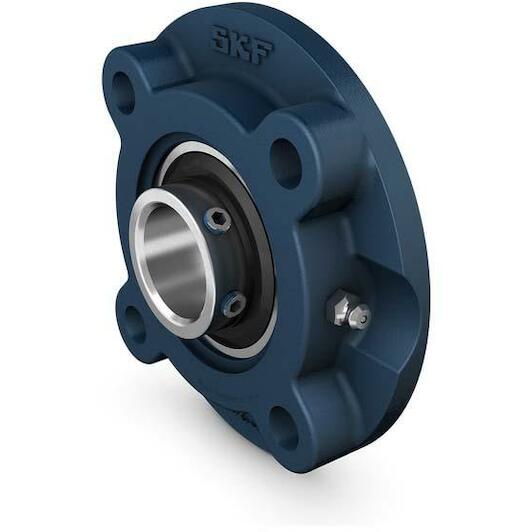

SKF UCFC 215 ball bearing unit with round flange, widened inner ring and locking with set screw, cast iron bearing housing, JIS

SKF
Supplier number: SKF UCFC 215 | EAN 7316579542760
Recommended Retail Price €439.13
217.40 tax incl.
€179.67 excl. VAT (incl. all environmental contributions)
On order: delivered from 20/10/2026

  • Ordered before 20:00 - delivered as of 20/10/2026
  • Free shipping
  • Delivery by DHL
  • Delivered from Belgium
✆ Talk to a specialist


Product information
€217.40
tax incl.

Product information

Key features according to our expert

  • Shaft diameter: 75 mm
  • Material (bearing housing): Cast iron
  • Material (bearing): Steel
  • High temperature: No
  • Bore type: Cylindrical
  • Shape (bearing housing): Round

Product description

These round flanged ball bearing units are compliant with JIS standards. They consist of an insert bearing, with an extended inner ring and set screw locking, and are suitable for applications where the direction of rotation is constant or alternating. The bearing is mounted in a cast iron housing, which can be bolted to a machine wall or frame. Ball bearing units can accommodate moderate initial misalignment, but normally do not permit axial displacement.

  • Resist high levels of contamination
  • Designed for high temperatures and speeds
  • Accommodate relatively heavy loads
  • Cost-effective

All Features

Shaft diameter
75 mm
Material (bearing housing)
Cast iron
Material (bearing)
Steel
High temperature
No
Bore type
Cylindrical
Shape (bearing housing)
Round
Material, bearing
Bearing steel
Number of bolt holes for fasteners
4
Lubricant
Grease
Rubber seating ring
Without
Sealing type
Contact, standard
Sealing, bearing
Seal and flinger on both sides
Housing type
Flanged
Flanged housing type
Round
Bearing width, total
77.8
Application
For material handling applications
Note
Limiting speed with shaft tolerance h6
Hexagonal key size for set screw
6.08
Grease fitting
With
Material, housing
Cast iron
Basic static load rating
49
Attachment bolt diameter
16
Retaining feature, inner ring
Set screws
Basic dynamic load rating
66.3
Coating
Without
Housing overall width
56
Pitch diameter of bolt holes of round and triangle flange type housing
184
Relubrication hole
With
Fastening bolt hole type
Plain
Limiting speed
2100
Width, total
62.5
Sealing, unit
Optional end cover
Set screw
M12x1.5
  • Brand SKF
  • EAN 7316579542760
  • Supplier number SKF UCFC 215
