SKF

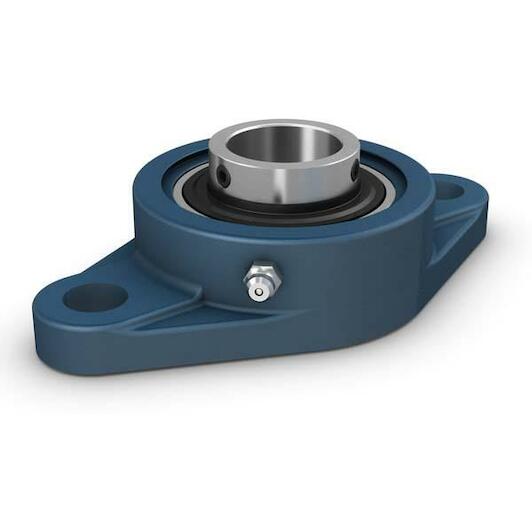

SKF UCFL 204/H ball bearing unit with oval flange, widened inner ring and locking with set screw, cast iron bearing housing, JIS

Recommended Retail Price €49.71
24.60 tax incl.
€20.33 excl. VAT (incl. all environmental contributions)
On order: delivered from 22/05/2026
each

  • Ordered before 20:00 - delivered as of 22/05/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL
  • Delivered from Belgium

Product description

These oval flanged ball bearing units are compliant with JIS standards. They consist of an insert bearing, with an extended inner ring and set screw locking, and are suitable for applications where the direction of rotation is constant or alternating. The bearing is mounted in a cast iron housing, which can be bolted to a machine wall or frame. Ball bearing units can accommodate moderate initial misalignment, but normally do not permit axial displacement.

  • Resist high levels of contamination
  • Designed for high temperatures and speeds
  • Accommodate relatively heavy loads
  • Cost-effective
Key features according to our expert
  • Shaft diameter: 20 mm
  • Material (bearing housing): Cast iron
  • Material (bearing): Steel
  • High temperature: No
  • Bore type: Cylindrical
  • Shape (bearing housing): Oval
Specifications / All features
  • Brand: SKF
  • EAN: 7316579751766
  • Supplier number: SKF UCFL 204/H
Shaft diameter
20 mm
Material (bearing housing)
Cast iron
Material (bearing)
Steel
High temperature
No
Bore type
Cylindrical
Shape (bearing housing)
Oval
Material, bearing
Bearing steel
Number of bolt holes for fasteners
2
Lubricant
Grease
Rubber seating ring
Without
Sealing type
Contact, standard
Sealing, bearing
Seal and flinger on both sides
Housing type
Flanged
Flanged housing type
Oval
Bearing width, total
31
Application
For material handling applications
Note
Limiting speed with shaft tolerance h6
Hexagonal key size for set screw
3
Grease fitting
With
Material, housing
Cast iron
Basic static load rating
6.55
Attachment bolt diameter
10
Retaining feature, inner ring
Set screws
Basic dynamic load rating
12.7
Coating
Without
Housing overall width
25.5
Centre distance between bolt holes
90
Relubrication hole
With
Fastening bolt hole type
Plain
Limiting speed
6500
Width, total
33.3
Sealing, unit
Optional end cover
Set screw
M6x0.75
