SKF

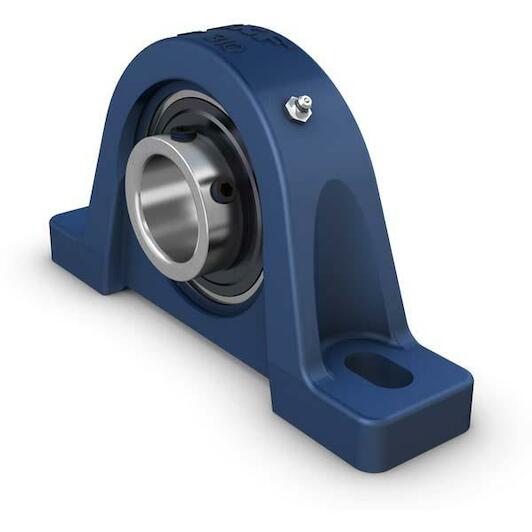

SKF UCP 215 upright ball bearing unit with widened inner ring and locking with set screws, cast iron, Japanese standards

Recommended Retail Price €345.98
171.20 tax incl.
€141.49 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

  • Ordered before 20:00 - delivered as of 26/05/2026
  • Free shipping
  • Delivery by DHL
  • Delivered from Belgium

Product description

Pillow (plummer) block ball bearing units consist of an insert bearing mounted in a cast iron housing that can be bolted to a support surface. This variant is strong and stiff, and is suitable for applications with both constant and alternating directions of rotation. It has an inner ring extended on both sides and is locked onto the shaft by tightening a set screw on the inner ring, making it easy to mount.

  • Strong
  • Designed for a constant and alternating rotation
  • Ready to mount
  • Lubricated and sealed bearing
  • Quick locking onto the shaft
  • Cost-effective
Key features according to our expert
  • Shaft diameter: 75 mm
  • Bore type: Cylindrical
  • Material (bearing housing): Cast iron
  • Material (bearing): Steel
Specifications / All features
  • Brand: SKF
  • EAN: 7316579543057
  • Supplier number: SKF UCP 215
Shaft diameter
75 mm
Bore type
Cylindrical
Material (bearing housing)
Cast iron
Material (bearing)
Steel
Material, housing
Cast iron
Grease fitting
With
Centre height (pillow block)
82.6
Hexagonal key size for set screw
6.08
Note
Limiting speed with shaft tolerance h6
Basic static load rating
49
Housing type
Pillow block
Material, bearing
Bearing steel
Sealing, bearing
Seal and flinger on both sides
Sealing type
Contact, standard
Rubber seating ring
Without
Lubricant
Grease
Number of bolt holes for fasteners
2
Application
For material handling applications
Centre distance between bolt holes
217
Bearing width, total
77.8
Basic dynamic load rating
66.3
Coating
Without
Housing overall width
73
Retaining feature, inner ring
Set screws
Relubrication hole
With
Fastening bolt hole type
Plain
Limiting speed
2100
Sealing, unit
Without
Attachment bolt diameter
20
Set screw
M12x1.5
