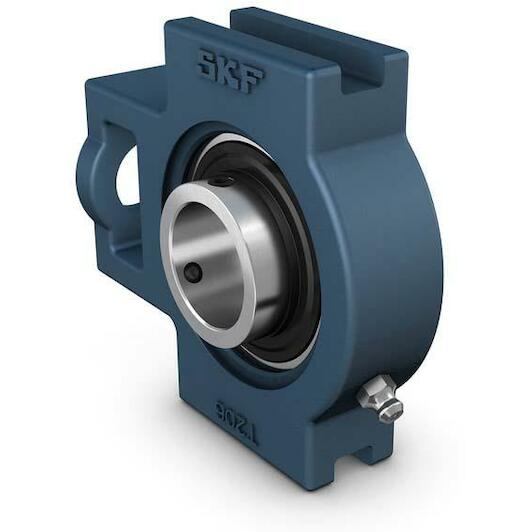

SKF UCT 206/H take-up unit with plug-in ball bearing, locking with set screw and widened inner ring, cast iron, JIS

SKF
Supplier number: SKF UCT 206/H | EAN 7316579751940
Recommended Retail Price €87.28
43.20 tax incl.
€35.70 excl. VAT (incl. all environmental contributions)
On order: delivered from 19/10/2026

  • Ordered before 20:00 - delivered as of 19/10/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL
  • Delivered from Belgium
✆ Talk to a specialist


Product information
€43.20
tax incl.

Product information

Key features according to our expert

  • Shaft diameter: 30 mm
  • Material (bearing): Steel
  • Material (bearing housing): Cast iron

Product description

Take-up ball bearing units, consisting of an insert bearing based on a sealed deep groove ball bearing mounted in a grey cast iron housing. Typically mounted in take-up frames, the unit has an inner ring extended on both sides and is locked by tightening two set screws on the inner ring, which makes it easy to mount. Units with designation suffix /H feature a 120° angle of separation between the set screws that contributes to a higher stability and a better load balance.

  • Designed for an alternating rotation
  • Quick and easy to mount onto the shaft
  • Accommodate static initial misalignment
  • Long service life
  • Reduced noise and vibration levels

All Features

Shaft diameter
30 mm
Material (bearing)
Steel
Material (bearing housing)
Cast iron
Basic static load rating
11.2
Material, housing
Cast iron
Grease fitting
With
Hexagonal key size for set screw
3
Note
Limiting speed with shaft tolerance h6
Application
For material handling applications
Housing type
Take-up
Bore type
Cylindrical
Material, bearing
Bearing steel
Sealing, bearing
Seal and flinger on both sides
Sealing type
Contact, standard
Rubber seating ring
Without
Lubricant
Grease
Retaining feature, inner ring
Set screws
Bearing width, total
38.1
Sealing, unit
Optional end cover
Limiting speed
5000
Relubrication hole
With
Housing overall width
37
Basic dynamic load rating
19.5
Coating
Without
Set screw
M6x0.75
  • Brand SKF
  • EAN 7316579751940
  • Supplier number SKF UCT 206/H
