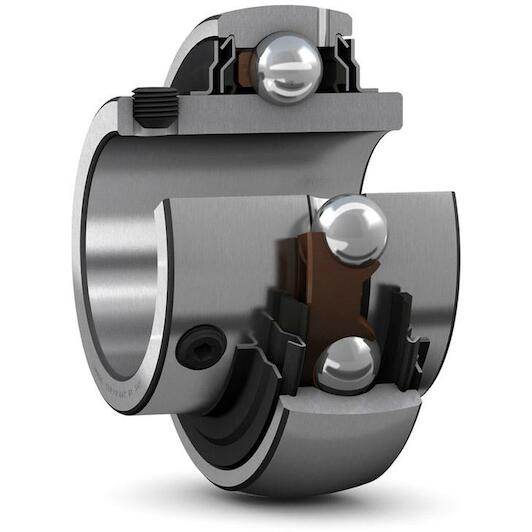

SKF YAR 207-106-2F Y insert bearing cylindrical with set screw for inch shaft, 34.9 x 72 mm

SKF

Supplier number: SKF YAR 207-106-2F | EAN 7316576616990

This product has been discontinued.

↓ Documents (1) ✆ Talk to a specialist

Product information

Key features according to our expert

Inner diameter: 34,925 mm
Width: 42,9 mm
Material (bearing): Steel
Material (cage): Plastic
High temperature: No
Bore type: Cylindrical
Inner ring extension: On both sides
Outer diameter: 72 mm

Product description:

SKF self-aligning thrust washer bearing for heavy duty (2F) or very heavy duty (-2RF) conditions.
Fixation on shaft by means of two socket-head screws on extended inner ring
Spherical outer ring with lubrication holes and inner ring extended on both sides

Documents

⤓ Technical data sheet PDF

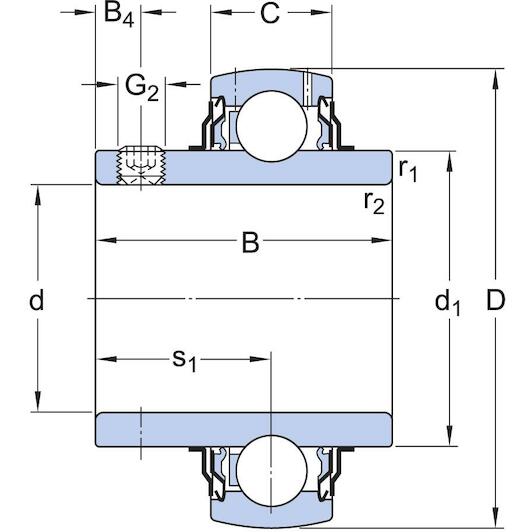

All Features

Inner diameter: 34,925 mm
Width: 42,9 mm
Material (bearing): Steel
Material (cage): Plastic
High temperature: No
Bore type: Cylindrical
Inner ring extension: On both sides
Outer diameter: 72 mm
Lubricant: Grease
Retaining feature, inner ring: Set screws
Basic static load rating: 15.3 kN
Relubrication feature: With
Cage: Non-metallic
Rubber seating ring: Without
Width, outer ring: 19 mm
Sealing type: Contact, standard
Outer ring type: Spherical
Material, bearing: Bearing steel
Sealing: Seal and flinger on both sides
Limiting speed: 5,300 r/min
Note: Limiting speed with shaft tolerance h6
Width, total: 42.9 mm
Width, inner ring: 42.9 mm
Bore diameter: 34.925 mm
Basic dynamic load rating: 25.5 kN
Coating: Without
Outer diameter: 72 mm
Rolling elements: Balls

Brand SKF
01190893
EAN 7316576616990
Supplier number SKF YAR 207-106-2F
