What shaft diameter is this insert bearing suitable for?

This bearing has a cylindrical bore designed for shafts with a 35 mm diameter.

How is this bearing secured to the shaft?

It locks securely onto the shaft using set screws on the extended inner ring.

What are the main dimensions of this SKF bearing?

It has an inside diameter of 35 mm, an outside diameter of 72 mm, and a total width of 42.9 mm.

Is this insert bearing suitable for alternating directions of rotation?

Yes, it is designed for applications with both constant and alternating rotation.

Is this bearing designed for high-temperature use?

No, this standard steel bearing with a plastic cage is not rated for high temperatures.

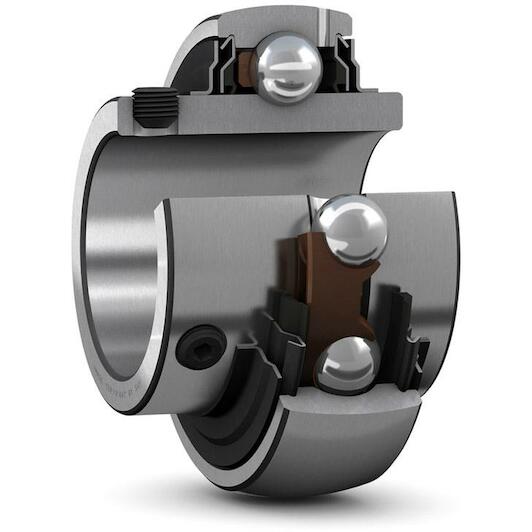

SKF YAR 207-2F Y insert bearing cylindrical with set screw for metric shaft, 35 x 72 mm

Supplier number: SKF YAR 207-2F | EAN 7316577031181

Recommended Retail Price €87.80

43.40 tax incl.

€35.87 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered tomorrow 10/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Reliable shaft support with the Skf insert bearing

Practical benefits

Quick and secure mounting: You securely lock the bearing onto the 35 mm shaft using two integrated set screws on the inner ring.
Stable in alternating rotations: The inner ring extended on both sides ensures smooth operation in both constant and alternating rotational directions.
Effective protection against contamination: The robust seals on both sides retain lubricant while shielding the steel bearing components from external debris.

In a nutshell

The right choise for

With the Skf yar 207-2F insert bearing, you achieve quick and dependable shaft support on a 35 mm metric shaft. Thanks to the two integrated set screws on the extended inner ring, you lock the steel bearing firmly onto the shaft without press-fitting, significantly reducing downtime. The inner ring extension on both sides delivers enhanced operational stability and accommodates both constant and alternating directions of rotation. Featuring a 72 mm outside diameter and a 42.9 mm total width, it fits smoothly into pillow block or flanged housings across conveyor systems, agricultural equipment, and machinery. Built-in seals on both sides reliably protect the steel bearing and plastic cage from external contamination.

Product information FAQ

€43.40

In stock - tax incl.

Key features according to our expert

Inner diameter: 35 mm
Width: 42,9 mm
Material (bearing): Steel
Material (cage): Plastic
High temperature: No
Bore type: Cylindrical
Inner ring extension: On both sides
Outer diameter: 72 mm

Product description

Insert bearings are based on sealed deep groove ball bearings. This variant is suitable for applications with both constant and alternating directions of rotation. It has an inner ring extended on both sides and is locked onto the shaft by tightening two (set) screws on the inner ring, making it easy to mount.

Designed for a constant and alternating rotation
Quick and easy to mount onto the shaft
Reduce noise and vibration levels

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 35 mm
Width: 42,9 mm
Material (bearing): Steel
Material (cage): Plastic
High temperature: No
Bore type: Cylindrical
Inner ring extension: On both sides
Outer diameter: 72 mm
Width, outer ring: 19
Basic static load rating: 15.3
Relubrication feature: With
Lubricant: Grease
Rubber seating ring: Without
Sealing type: Contact, standard
Cage: Non-metallic
Material, bearing: Bearing steel
Sealing: Seal and flinger on both sides
Rolling elements: Balls
Application: For agricultural applications
Retaining feature, inner ring: Set screws
Limiting speed: 5300
Outer ring type: Spherical
Width, total: 42.9
Width, inner ring: 42.9
Shaft diameter: 35
Bore diameter: 35
Basic dynamic load rating: 25.5
Coating: Without
Outer diameter: 72
Note: Limiting speed with shaft tolerance h6

Brand SKF
01190040
EAN 7316577031181
Supplier number SKF YAR 207-2F

Frequently asked questions about this product

Answered by specialists

What shaft diameter is this insert bearing suitable for?: This bearing has a cylindrical bore designed for shafts with a 35 mm diameter.
How is this bearing secured to the shaft?: It locks securely onto the shaft using set screws on the extended inner ring.
What are the main dimensions of this SKF bearing?: It has an inside diameter of 35 mm, an outside diameter of 72 mm, and a total width of 42.9 mm.
Is this insert bearing suitable for alternating directions of rotation?: Yes, it is designed for applications with both constant and alternating rotation.
Is this bearing designed for high-temperature use?: No, this standard steel bearing with a plastic cage is not rated for high temperatures.
