Which shaft diameter is this Y-bearing suitable for?

This insert bearing is designed for a metric shaft with a diameter of 40 mm.

How is this insert bearing mounted onto the shaft?

You secure the extended inner ring to the shaft by tightening the two set screws.

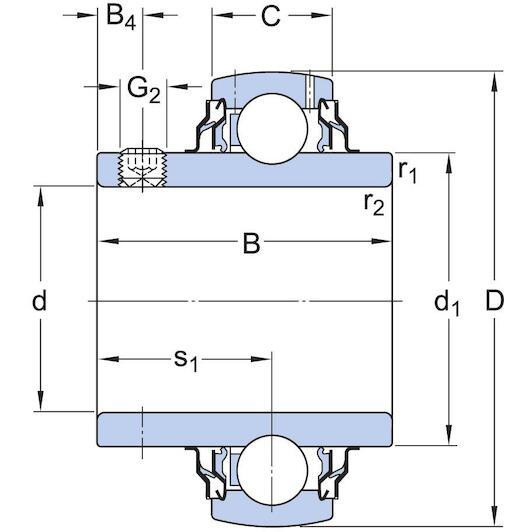

What are the main dimensions of the SKF YAR 208-2RF?

The bearing has a 40 mm bore diameter, an 80 mm outside diameter, and an overall width of 49.2 mm.

Is this bearing suitable for high-temperature applications?

No, this model is not designed for high-temperature environments.

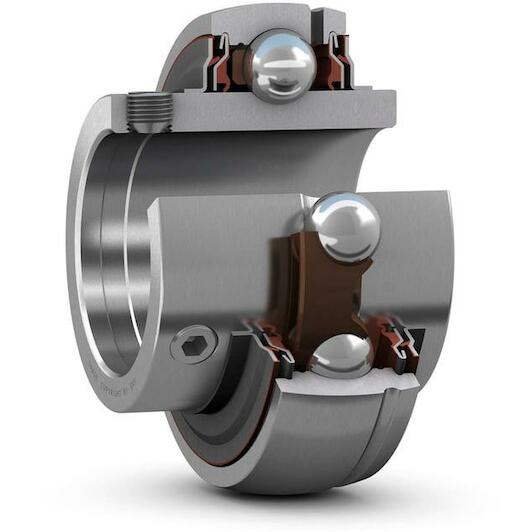

SKF YAR 208-2RF Y insert bearing cylindrical with set screw for metric shaft, 40 x 80 mm

Supplier number: SKF YAR 208-2RF | EAN 7316570207361

Recommended Retail Price €117.66

58.20 tax incl.

€48.10 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 6 products in stock.

Ordered before 20:00 - delivered as of 12/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Reliable shaft mounting with the Skf YAR 208-2RF

Practical benefits

Quick and secure mounting: You easily lock the bearing onto your 40 mm shaft using two set screws on the extended inner ring.
Handles alternating rotation directions: You maintain smooth, low-vibration performance across machinery operating in either constant or reversing rotational directions.
Effective seal against contamination: Built-in contact seals and flingers keep dust and dirt out to extend operational bearing life.

In a nutshell

The right choise for

Mount your 40 mm shaft quickly and securely with the Skf yar 208-2RF insert bearing. The inner ring, extended on both sides, provides stable support and prevents shaft tilting, while two integrated set screws allow fast locking without a press fit. This makes the steel bearing ideal for machinery operating with either constant or alternating rotation directions, such as conveyor systems and agricultural equipment. The multi-lip 2RF contact seal with flingers keeps out dust, dirt, and moisture to protect the internal components. It serves as a direct replacement in existing housing units, ensuring smooth, low-vibration operation and long-lasting performance for your mechanical drive train.

Product information FAQ

€58.20

In stock - tax incl.

Key features according to our expert

Inner diameter: 40 mm
Width: 49,2 mm
Material (bearing): Steel
Material (cage): Plastic
High temperature: No
Bore type: Cylindrical
Inner ring extension: On both sides
Outer diameter: 80 mm

Product description

Insert bearings are based on sealed deep groove ball bearings. This variant is suitable for applications with both constant and alternating directions of rotation. It has an inner ring extended on both sides and is locked onto the shaft by tightening two (set) screws on the inner ring, making it easy to mount.

Designed for a constant and alternating rotation
Quick and easy to mount onto the shaft
Reduce noise and vibration levels

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 40 mm
Width: 49,2 mm
Material (bearing): Steel
Material (cage): Plastic
High temperature: No
Bore type: Cylindrical
Inner ring extension: On both sides
Outer diameter: 80 mm
Width, outer ring: 21
Basic static load rating: 19
Relubrication feature: With
Lubricant: Grease
Rubber seating ring: Without
Sealing type: Contact, multiple
Cage: Non-metallic
Material, bearing: Bearing steel
Sealing: Seal and flinger on both sides
Rolling elements: Balls
Application: For material handling applications
Retaining feature, inner ring: Set screws
Limiting speed: 2800
Outer ring type: Spherical
Width, total: 49.2
Width, inner ring: 49.2
Shaft diameter: 40
Bore diameter: 40
Basic dynamic load rating: 30.7
Coating: Without
Outer diameter: 80
Note: Limiting speed with shaft tolerance h6

Brand SKF
01190659
EAN 7316570207361
Supplier number SKF YAR 208-2RF

Frequently asked questions about this product

Answered by specialists

Which shaft diameter is this Y-bearing suitable for?: This insert bearing is designed for a metric shaft with a diameter of 40 mm.
How is this insert bearing mounted onto the shaft?: You secure the extended inner ring to the shaft by tightening the two set screws.
What are the main dimensions of the SKF YAR 208-2RF?: The bearing has a 40 mm bore diameter, an 80 mm outside diameter, and an overall width of 49.2 mm.
Is this Y-bearing suitable for alternating directions of rotation?: Yes, it is designed for applications with both constant and alternating rotation directions.
Is this bearing suitable for high-temperature applications?: No, this model is not designed for high-temperature environments.
