SKF

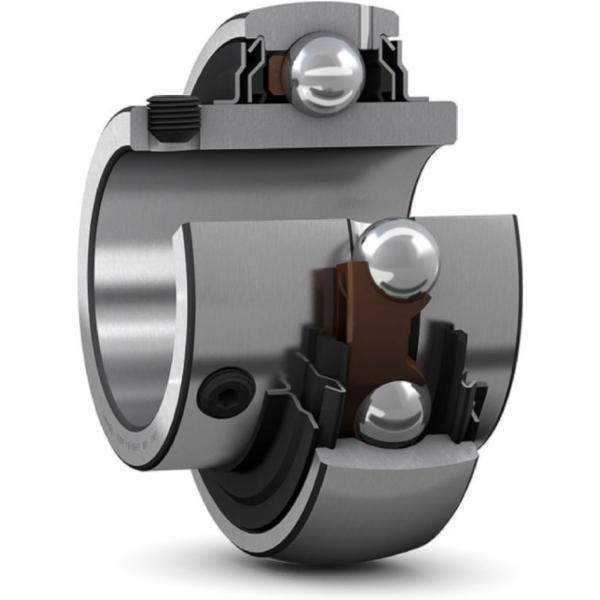

SKF YAR 216-300-2F Y insert bearing cylindrical with set screw for inch shaft, 76.2 x 140 mm

This article is not available

Product description:

  • SKF self-aligning thrust washer bearing for heavy duty (2F) or very heavy duty (-2RF) conditions.
  • Fixation on shaft by means of two socket-head screws on extended inner ring
  • Spherical outer ring with lubrication holes and inner ring extended on both sides
Key features according to our expert
  • Inner diameter: 76,2 mm
  • Width: 77,8 mm
  • Material (bearing): Steel
  • Material (cage): Plastic
  • High temperature: No
  • Bore type: Cylindrical
  • Inner ring extension: On both sides
  • Outer diameter: 140 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316571257600
  • Supplier number: SKF YAR 216-300-2F
Inner diameter
76,2 mm
Width
77,8 mm
Material (bearing)
Steel
Material (cage)
Plastic
High temperature
No
Bore type
Cylindrical
Inner ring extension
On both sides
Outer diameter
140 mm
Lubricant
Grease
Retaining feature, inner ring
Set screws
Basic static load rating
53 kN
Relubrication feature
With
Cage
Non-metallic
Rubber seating ring
Without
Width, outer ring
30 mm
Sealing type
Contact, standard
Outer ring type
Spherical
Material, bearing
Bearing steel
Sealing
Seal and flinger on both sides
Note
Limiting speed with shaft tolerance h6
Width, total
77.8 mm
Width, inner ring
77.8 mm
Limiting speed
2,400 r/min
Bore diameter
76.2 mm
Basic dynamic load rating
72.8 kN
Coating
Without
Outside diameter
140 mm
Rolling elements
Balls
