SKF

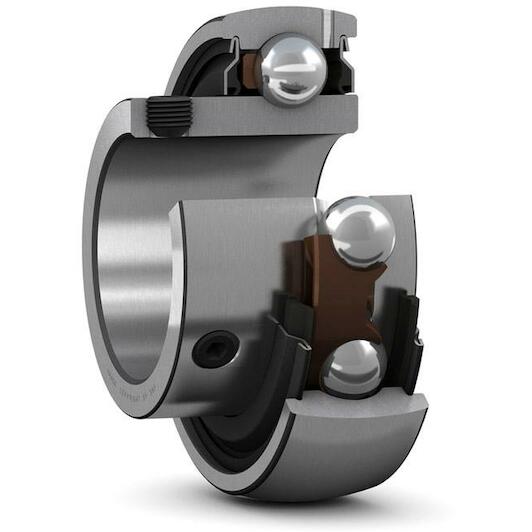

SKF YAT 205/VP076 Y insert bearing cylindrical with set screw for metric shaft, 25 x 52 mm

Recommended Retail Price €72.33
35.80 tax incl.
€29.59 excl. VAT (incl. all environmental contributions)
On order: delivered from 30/05/2026
each

  • Ordered before 20:00 - delivered as of 30/05/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL
  • Delivered from Belgium

Product description:

  • Self-aligning snap ring bearing for normal conditions
  • Fitted on shaft by two socket screws on extended inner ring
  • Spherical outer ring, fitted with lubrication holes and an extended inner ring on one side
Key features according to our expert
  • Inner diameter: 25 mm
  • Width: 27,2 mm
  • Material (bearing): Steel
  • Material (cage): Plastic
  • High temperature: No
  • Bore type: Cylindrical
  • Inner ring extension: On both sides
  • Outer diameter: 52 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316570340112
  • Supplier number: SKF YAT 205/VP076
Inner diameter
25 mm
Width
27,2 mm
Material (bearing)
Steel
Material (cage)
Plastic
High temperature
No
Bore type
Cylindrical
Inner ring extension
On both sides
Outer diameter
52 mm
Lubricant
Grease
Retaining feature, inner ring
Set screws
Basic static load rating
7.8 kN
Relubrication feature
With
Cage
Non-metallic
Rubber seating ring
Without
Width, outer ring
15 mm
Sealing type
Non-contact
Outer ring type
Spherical
Material, bearing
Bearing steel
Sealing
Shield on both sides
Limiting speed
8,500 r/min
Note
Limiting speed with shaft tolerance h6
Width, total
27.2 mm
Width, inner ring
27.2 mm
Bore diameter
25 mm
Basic dynamic load rating
14 kN
Coating
Without
Outside diameter
52 mm
Rolling elements
Balls
