What shaft diameter is this insert bearing designed for?

It features a 35 mm bore and fits metric cylindrical shafts of exactly 35 mm.

How is the bearing secured to the shaft?

It locks quickly and securely onto the shaft using an eccentric locking collar.

Which rotation direction is this bearing suitable for?

Insert bearings with an eccentric locking collar are intended for applications with a constant direction of rotation.

What are the main dimensions of this SKF bearing?

It has an inside diameter of 35 mm, an outside diameter of 72 mm, and a total width of 51.1 mm.

Is this bearing suitable for high-temperature applications?

No, this standard model is not rated for high-temperature environments.

SKF YEL 207-2F Y insert bearing cylindrical with eccentric ring for metric shaft, 35 x 72 mm

Supplier number: SKF YEL 207-2F | EAN 7316570688726

Recommended Retail Price €114.09

56.40 tax incl.

€46.61 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 4 products in stock.

Ordered before 20:00 - delivered as of 12/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Reliable shaft mounting with Skf YEL 207-2F

Practical benefits

Quick and secure mounting: The eccentric locking collar allows you to clamp the bearing easily and firmly onto a 35 mm shaft.
Enhanced stability during operation: The extended inner ring on both sides provides additional support and alignment for your rotating machinery.
Protection against contamination ingress: Effective contact seals keep lubricant locked inside while preventing dust and debris from entering the bearing.

In a nutshell

The right choise for

With the Skf yel 207-2F insert bearing, you achieve reliable and stable shaft mounting on industrial machinery, conveyor systems, or agricultural equipment. Designed for 35 mm cylindrical metric shafts in applications with a constant direction of rotation, this steel bearing delivers solid performance. Thanks to the eccentric locking collar, you can clamp the bearing quickly and securely onto the shaft without needing a press. The inner ring extended on both sides provides additional shaft support and operational stability. In addition, the integrated seal keeps lubricant locked inside while protecting internal components from dirt and dust ingress. With an outside diameter of 72 mm and a width of 51.1 mm, it keeps your equipment running smoothly.

Product information FAQ

€56.40

In stock - tax incl.

Key features according to our expert

Inner diameter: 35 mm
Width: 51,1 mm
Material (bearing): Steel
Material (cage): Plastic
High temperature: No
Bore type: Cylindrical
Inner ring extension: On both sides
Outer diameter: 72 mm

Product description

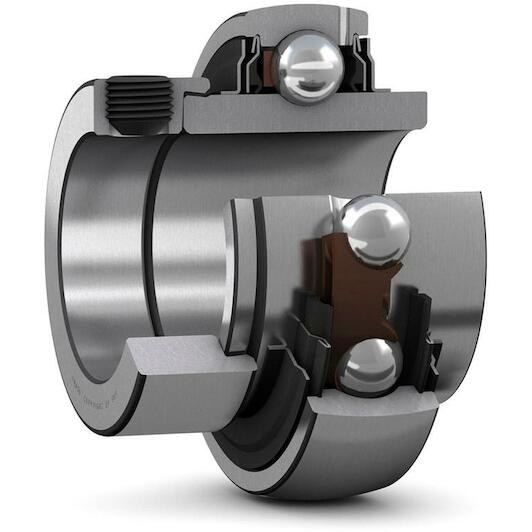

Insert bearings are based on sealed deep groove ball bearings. This variant is intended for use in applications where the direction of rotation is constant. It has an inner ring extended on both sides, with an eccentric locking collar, enabling quick and easy mounting onto the shaft.

Quick and easy to mount onto the shaft
Long service life
Reduce noise and vibration levels

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 35 mm
Width: 51,1 mm
Material (bearing): Steel
Material (cage): Plastic
High temperature: No
Bore type: Cylindrical
Inner ring extension: On both sides
Outer diameter: 72 mm
Width, outer ring: 19
Basic static load rating: 15.3
Relubrication feature: With
Lubricant: Grease
Rubber seating ring: Without
Sealing type: Contact, standard
Cage: Non-metallic
Material, bearing: Bearing steel
Sealing: Seal and flinger on both sides
Rolling elements: Balls
Application: For material handling applications
Retaining feature, inner ring: Eccentric collar
Limiting speed: 5300
Outer ring type: Spherical
Width, total: 51.1
Width, inner ring: 37.6
Shaft diameter: 35
Bore diameter: 35
Basic dynamic load rating: 25.5
Coating: Without
Outer diameter: 72
Note: Limiting speed with shaft tolerance h6

Brand SKF
01190479
EAN 7316570688726
Supplier number SKF YEL 207-2F

Frequently asked questions about this product

Answered by specialists

What shaft diameter is this insert bearing designed for?: It features a 35 mm bore and fits metric cylindrical shafts of exactly 35 mm.
How is the bearing secured to the shaft?: It locks quickly and securely onto the shaft using an eccentric locking collar.
Which rotation direction is this bearing suitable for?: Insert bearings with an eccentric locking collar are intended for applications with a constant direction of rotation.
What are the main dimensions of this SKF bearing?: It has an inside diameter of 35 mm, an outside diameter of 72 mm, and a total width of 51.1 mm.
Is this bearing suitable for high-temperature applications?: No, this standard model is not rated for high-temperature environments.
