Which shaft diameter does this SKF insert bearing fit?

This bearing is designed for a metric shaft with a diameter of 45 mm.

How is the SKF YEL 209-2F bearing mounted on the shaft?

You mount it quickly and securely onto the shaft using the eccentric locking collar.

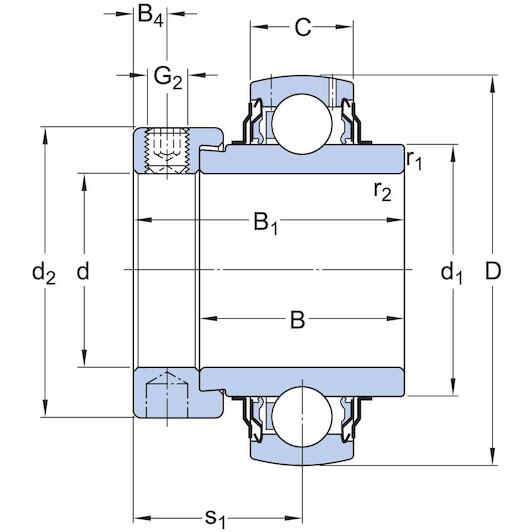

What are the main dimensions of this insert bearing?

It features an inside diameter of 45 mm, an outside diameter of 85 mm, and a total width of 56.3 mm.

For which rotation direction is this bearing intended?

An insert bearing with an eccentric collar is designed for applications with a constant direction of rotation.

Is this SKF insert bearing suitable for high-temperature environments?

No, this bearing is not designed for high-temperature applications.

SKF YEL 209-2F Y insert bearing cylindrical with eccentric ring for metric shaft, 45 x 85 mm

Supplier number: SKF YEL 209-2F | EAN 7316570460773

Recommended Retail Price €159.09

78.60 tax incl.

€64.96 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered as of 12/10/2026
Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Reliable shaft support for constant rotation

Practical benefits

Fast and secure mounting: The eccentric locking collar allows you to mount this Skf insert bearing quickly and firmly onto a 45 mm shaft.
Smooth and stable operation: The extended inner ring on both sides provides enhanced shaft support to significantly reduce noise and vibration levels.
Effective seal against contamination: Standard contact seals with flingers on both sides keep grease inside while protecting internal components from dirt and debris.

In a nutshell

The right choise for

With the Skf yel 209-2F insert bearing, you quickly and securely install a dependable shaft support on a plain 45 mm shaft. Thanks to the eccentric locking collar, you clamp the bearing firmly for applications with a constant direction of rotation, eliminating complex shaft machining. The inner ring extended on both sides provides enhanced stability, noticeably reducing vibration and noise. Featuring an 85 mm outside diameter and contact seals with flingers on both sides, it keeps dirt out and lubricant in, making it ideal for conveyors and agricultural machinery.

Product information FAQ

€78.60

In stock - tax incl.

Key features according to our expert

Inner diameter: 45 mm
Width: 56,3 mm
Material (bearing): Steel
Material (cage): Plastic
High temperature: No
Bore type: Cylindrical
Inner ring extension: On both sides
Outer diameter: 85 mm

Product description

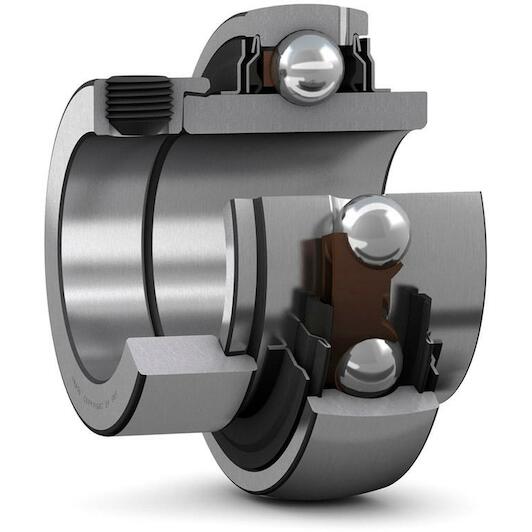

Insert bearings are based on sealed deep groove ball bearings. This variant is intended for use in applications where the direction of rotation is constant. It has an inner ring extended on both sides, with an eccentric locking collar, enabling quick and easy mounting onto the shaft.

Quick and easy to mount onto the shaft
Long service life
Reduce noise and vibration levels

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 45 mm
Width: 56,3 mm
Material (bearing): Steel
Material (cage): Plastic
High temperature: No
Bore type: Cylindrical
Inner ring extension: On both sides
Outer diameter: 85 mm
Width, outer ring: 22
Basic static load rating: 21.6
Relubrication feature: With
Lubricant: Grease
Rubber seating ring: Without
Sealing type: Contact, standard
Cage: Non-metallic
Material, bearing: Bearing steel
Sealing: Seal and flinger on both sides
Rolling elements: Balls
Application: For material handling applications
Retaining feature, inner ring: Eccentric collar
Limiting speed: 4300
Outer ring type: Spherical
Width, total: 56.3
Width, inner ring: 42.8
Shaft diameter: 45
Bore diameter: 45
Basic dynamic load rating: 33.2
Coating: Without
Outer diameter: 85
Note: Limiting speed with shaft tolerance h6

Brand SKF
01190911
EAN 7316570460773
Supplier number SKF YEL 209-2F

Frequently asked questions about this product

Answered by specialists

Which shaft diameter does this SKF insert bearing fit?: This bearing is designed for a metric shaft with a diameter of 45 mm.
How is the SKF YEL 209-2F bearing mounted on the shaft?: You mount it quickly and securely onto the shaft using the eccentric locking collar.
What are the main dimensions of this insert bearing?: It features an inside diameter of 45 mm, an outside diameter of 85 mm, and a total width of 56.3 mm.
For which rotation direction is this bearing intended?: An insert bearing with an eccentric collar is designed for applications with a constant direction of rotation.
Is this SKF insert bearing suitable for high-temperature environments?: No, this bearing is not designed for high-temperature applications.
