SKF YET 204 Y insert bearing cylindrical with eccentric ring for metric shaft, 20 x 47 mm

Recommended Retail Price €57.97

28.60 tax incl.

€23.64 excl. VAT (incl. all environmental contributions)

SKF YET 204 Y insert bearing cylindrical with eccentric ring for metric shaft, 20 x 47 mm

€28.60 Recommended Retail Price €57.97

On stock, immediately available.

each

Ordered before 20:00 - delivered as of 16/05/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

Product information
Additional info

Product description

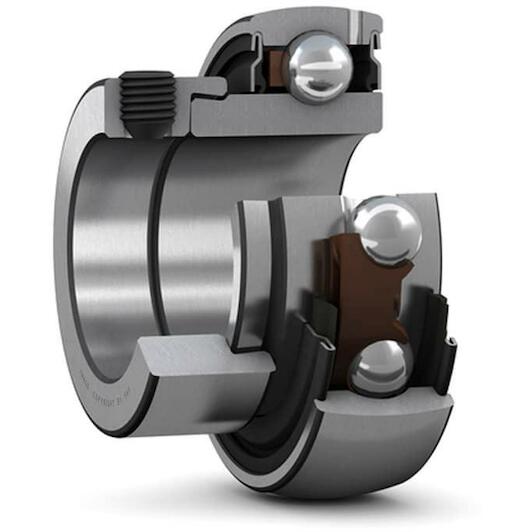

Insert bearings are based on sealed deep groove ball bearings. This variant is intended for use in applications where the direction of rotation is constant. It has a narrow inner ring extended on one side, with an eccentric locking collar, enabling quick and easy mounting onto the shaft.

Designed for rotation in one direction
Quick and easy to mount onto the shaft
Long service life
Reduce noise and vibration levels

Key features according to our expert

Inner diameter: 20 mm
Width: 21 mm
Material (bearing): Steel
Material (cage): Plastic
High temperature: No
Bore type: Cylindrical
Inner ring extension: On one side
Outer diameter: 47 mm

Specifications / All features

Brand: SKF
01190046
EAN: 7316577029300
Supplier number: SKF YET 204

Inner diameter: 20 mm
Width: 21 mm
Material (bearing): Steel
Material (cage): Plastic
High temperature: No
Bore type: Cylindrical
Inner ring extension: On one side
Outer diameter: 47 mm
Width, outer ring: 14
Basic static load rating: 6.55
Relubrication feature: With
Lubricant: Grease
Rubber seating ring: Without
Sealing type: Contact, standard
Cage: Non-metallic
Material, bearing: Bearing steel
Sealing: Seal on both sides
Rolling elements: Balls
Application: For material handling applications; For air handling applications
Retaining feature, inner ring: Eccentric collar
Limiting speed: 8500
Outer ring type: Spherical
Width, total: 30.5
Width, inner ring: 21
Shaft diameter: 20
Bore diameter: 20
Basic dynamic load rating: 12.7
Coating: Without
Outside diameter: 47
Note: Limiting speed with shaft tolerance h6
