SKF

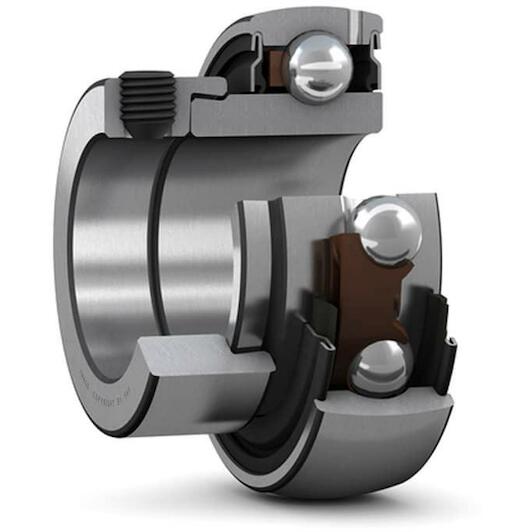

SKF YET 210-115 Y insert bearing cylindrical with eccentric ring for inch shaft, 49.2 x 90 mm

This article is not available

Product description:

  • Self-aligning snap ring bearing for normal conditions
  • Fixation on shaft by means of eccentric ring
  • Spherical outer ring with lubrication holes and inner ring extended at one end
Key features according to our expert
  • Inner diameter: 49,212 mm
  • Width: 30,2 mm
  • Material (bearing): Steel
  • Material (cage): Plastic
  • High temperature: No
  • Bore type: Cylindrical
  • Inner ring extension: On one side
  • Outer diameter: 90 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316576617300
  • Supplier number: SKF YET 210-115
Inner diameter
49,212 mm
Width
30,2 mm
Material (bearing)
Steel
Material (cage)
Plastic
High temperature
No
Bore type
Cylindrical
Inner ring extension
On one side
Outer diameter
90 mm
Lubricant
Grease
Retaining feature, inner ring
Eccentric collar
Basic static load rating
23.2 kN
Relubrication feature
With
Cage
Non-metallic
Rubber seating ring
Without
Width, outer ring
22 mm
Sealing type
Contact, standard
Outer ring type
Spherical
Material, bearing
Bearing steel
Sealing
Seal on both sides
Limiting speed
4,000 r/min
Note
Limiting speed with shaft tolerance h6
Width, total
43.7 mm
Width, inner ring
30.2 mm
Bore diameter
49.2125 mm
Basic dynamic load rating
35.1 kN
Coating
Without
Outside diameter
90 mm
Rolling elements
Balls
