smc_kq2zf04_m5a
SMC

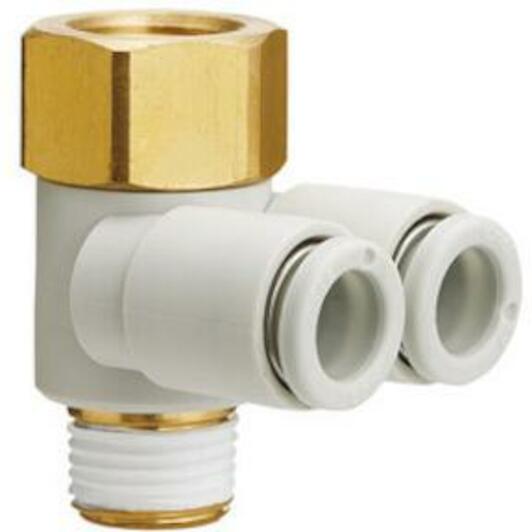

SMC KQ2ZF04-M5 right-angle coupling universal female 4mm M5 - KQ2ZF04-M5A

6.87 tax incl.
€5.68 excl. VAT (incl. all environmental contributions)
On order: delivered from 18/06/2026
each

The minimum purchase order quantity for the product is 10.

  • Ordered before 20:00 - delivered as of 18/06/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL
  • Delivered from Belgium

Product description:



KQ2ZF, One-touch Fitting White Color - Branch Universal Female Elbow
  • At SMC we are continuously investing in research and development to refine and improve the performance and functionality of our products as well as develop new innovations to drive energy savings and deliver competitive advantages for our customers. A good example of this is our New KQ2, general purpose fitting, which requires up to 30% less force for inserting and sealing a tube and 20% less resistance for its removal. This makes the fittings even quicker and easier to assemble, leading to reduced labour costs. In addition to the compact and lightweight solutions in the existing range, the new KQ2 Series offers further reduced dimensions for confined spaces providing shorter widths of up to 23% and up to a 24% reduction in height, making the overall fittings 57% lighter than previous models. The KQ2 Series also has two thread material options of Brass and Brass & Nickel plating and two types of seals, featuring a Sealant or Gasket design, allowing for repeatable piping and preventing contamination in the case of the Gasket. Moreover, the KQ2 Series offers several thread types of M, R, NPT, UNF and Uni, as well as a full range of diameters from Ø2mm that can now deliver air saving in low flow applications and up to Ø16mm to improve cycle times in high flow applications.
  • Branch universal female elbow.
  • Applicable Tubing O.D.: Ø4, Ø6, Ø8, Ø10, Ø12, Ø16.
  • Applicable Port Size: M5, 1/8, 1/4, 3/8, 1/2.
Key features according to our expert
  • Connection size (tube/hose): 4 mm
  • Material (bolt): Brass
  • Application area: Pneumatic
  • Banjo bolt size: M5
  • Surface treatment (bolt): None
  • Surface treatment (housing): None
  • Max. working pressure: 10 bar
  • Material (housing): PBT
  • Drive type: External hexagon
  • Number of pipe connections: 2
  • Thread type (banjo bolt): Metric
  • Connection type (banjo bolt): Inner and outer thread
  • Connection type (tube/hose): Push-in
Specifications / All features
  • Brand: SMC
  • EAN:
  • Supplier number: SMC KQ2ZF04-M5A
Connection size (tube/hose)
4 mm
Material (bolt)
Brass
Application area
Pneumatic
Banjo bolt size
M5
Surface treatment (bolt)
None
Surface treatment (housing)
None
Max. working pressure
10 bar
Material (housing)
PBT
Drive type
External hexagon
Number of pipe connections
2
Thread type (banjo bolt)
Metric
Connection type (banjo bolt)
Inner and outer thread
Connection type (tube/hose)
Push-in
Gate size
M5 x 0.8
Applicable outer hose diameter
Ø 4
Sealant
None (except for port sizes
Thread material /surface treatment
A (Brass)
