Product description

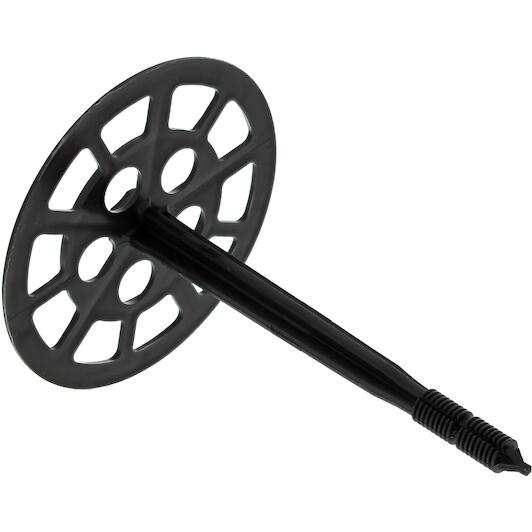

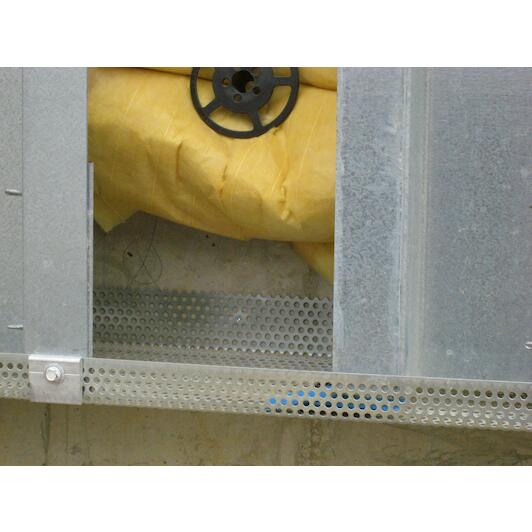

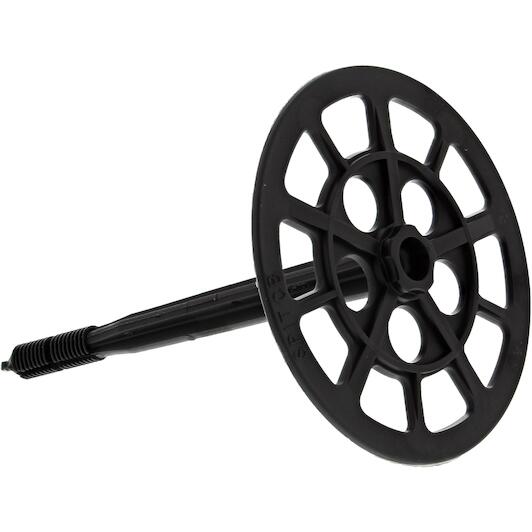

- Insulation anchor for soft and semi-rigid insulation panels
- Insulation anchor perfectly suited for soft insulation
- Made of polypropylene for temperatures from -30 °C to +80 °C
- Up to loads of 50 kg in concrete
- Easy to install through insulation material

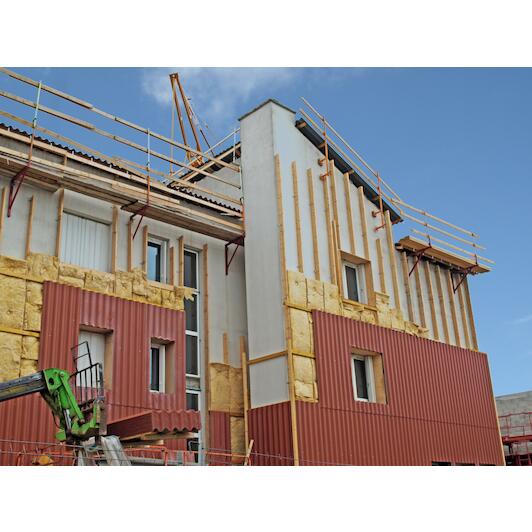

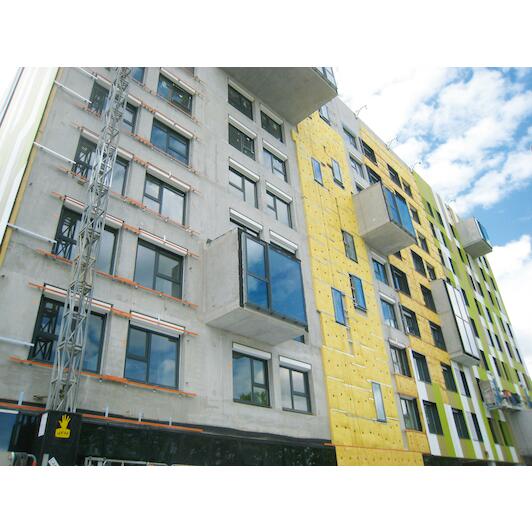

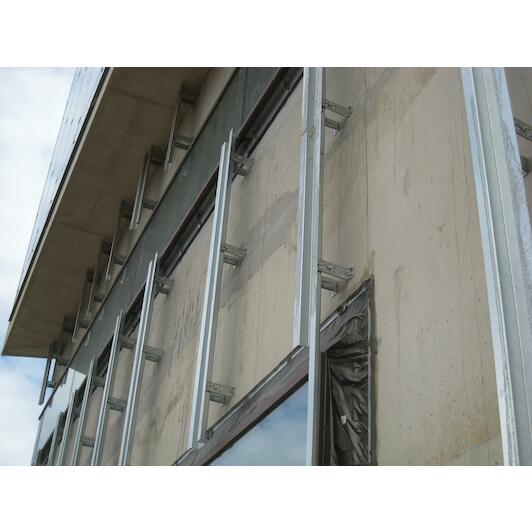

- 90 mm dish, approved for ventilated facades
- Use category: concrete, brick and aerated concrete
- Up to 220 mm insulation thickness
Applications
Key features according to our expert
-
Head diameter: 90 mm
-
With screw: No
-
Max. insulation thickness: 160 mm
-
Wall plug type: Insulation plug
-
Application: Brick; Aerated concrete
-
type (screw head): Not applicable
-
Drilling diameter: 8 mm
-
Diameter (wall plug): 8 mm
-
Material (wall plug): PP - Polypropylene
-
Length (Wall plug): 185
Specifications / All features
-
Brand:
SPIT
-
02665496
-
EAN:
3439510548653
-
Supplier number:
SPIT 054865
- Head diameter
- 90 mm
- With screw
- No
- Max. insulation thickness
- 160 mm
- Wall plug type
- Insulation plug
- Application
- Brick; Aerated concrete
- Type (screw head)
- Not applicable
- Drilling diameter
- 8 mm
- Diameter (wall plug)
- 8 mm
- Material (wall plug)
- PP - Polypropylene
- Length (wall plug)
- 185
- Minimum placement depth
- 20.0 mm
- Base material colour
- PURPLE
- Anchor diameter
- 8.0 mm
- Maximum trapping
- 160 mm
- Anchoring depth
- 20 mm
- Minimum drilling depth
- 50 mm
- Minimum clamping thickness
- 150 mm
- Drill diameter
- 8.0 mm
- Base material
- Aerated concrete, Non-cracked concrete, Solid blocks, Solid brick
- Maximum installation depth
- 30 mm
- Anchor length
- 185 mm
- Product material
- Polypropylene
