SPIT 054904 insulating plug with metal striking pin PTH-KZ 8x40 mm

Name: SPIT 054904 insulating plug with metal striking pin PTH-KZ 8x40 mm
Brand: SPIT
SKU: 02956981
Price: 0.4 EUR
Availability: PreOrder

0.40 tax incl.

€0.33 excl. VAT (incl. all environmental contributions)

SPIT 054904 insulating plug with metal striking pin PTH-KZ 8x40 mm

€0.40

On order: delivered from 21/05/2026

each

The minimum purchase order quantity for the product is 200.

Ordered before 20:00 - delivered as of 21/05/2026
Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

Product information

Product description

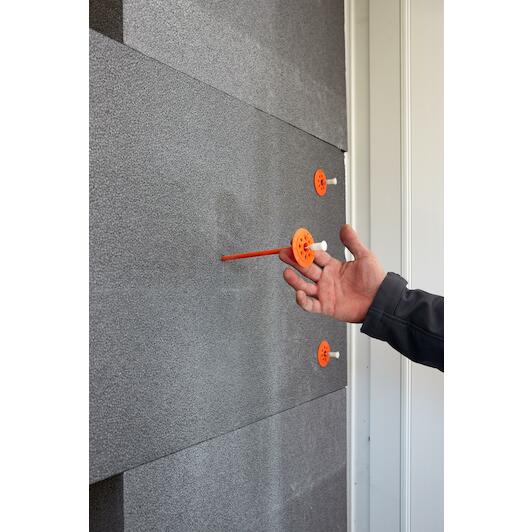

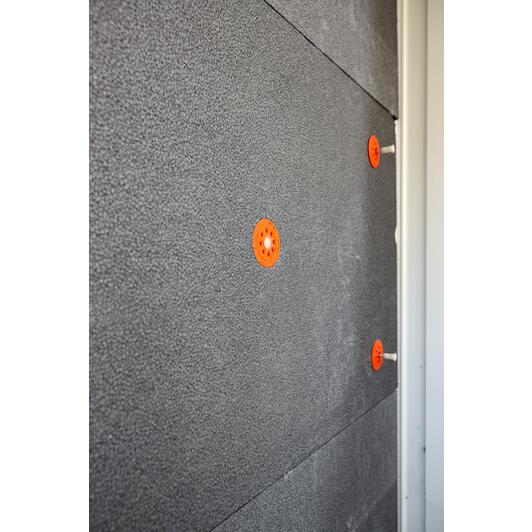

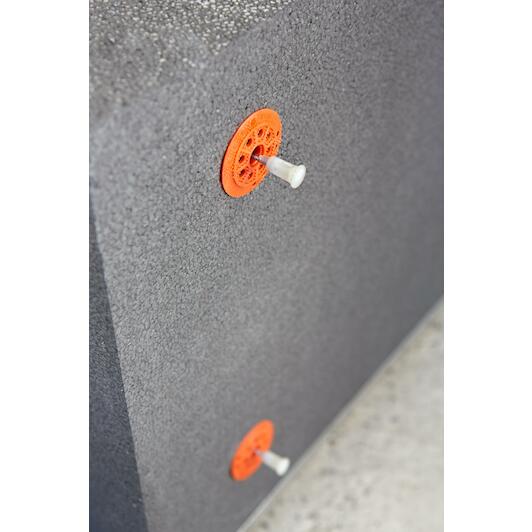

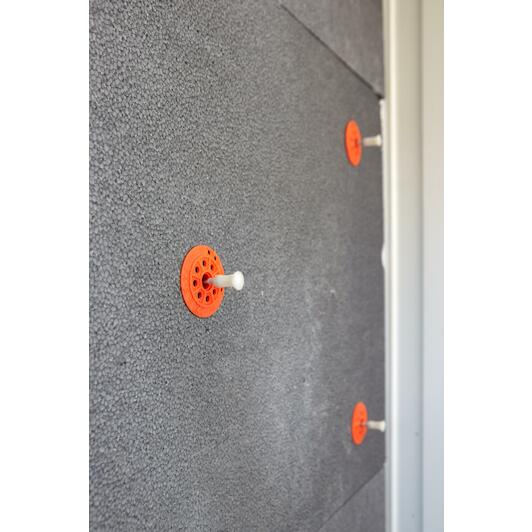

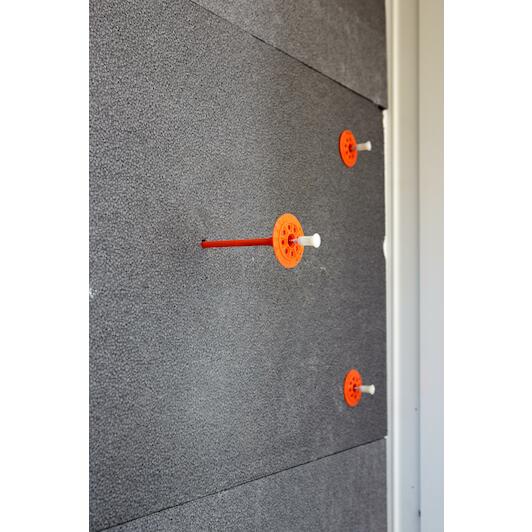

Insulation plug with metal striking pin
Versatile anchor for all rigid insulation materials (light and heavy)
Special surface finish for optimal adhesion of plaster
Small drilling depth and high pull-out values
Low thermal transmission

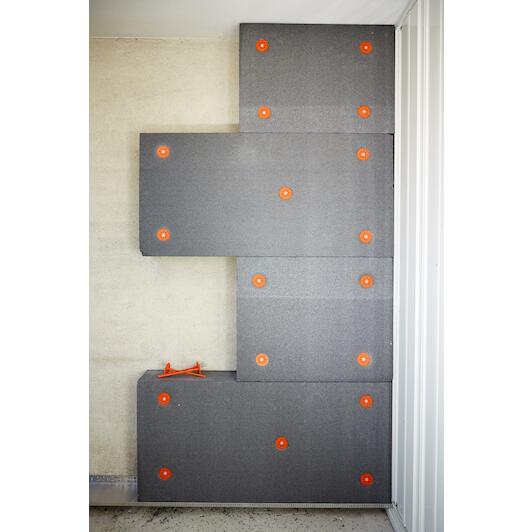

Optimised number of anchors per m²

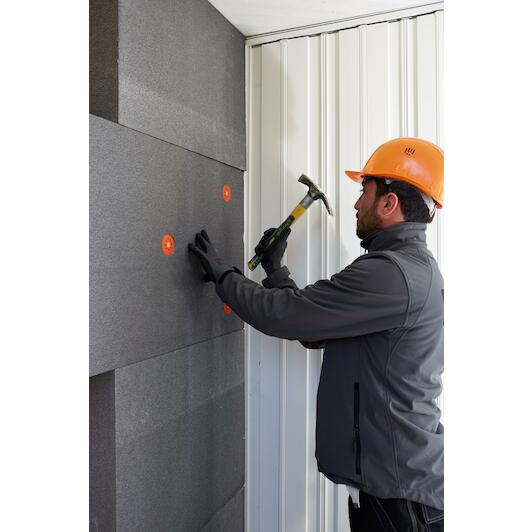

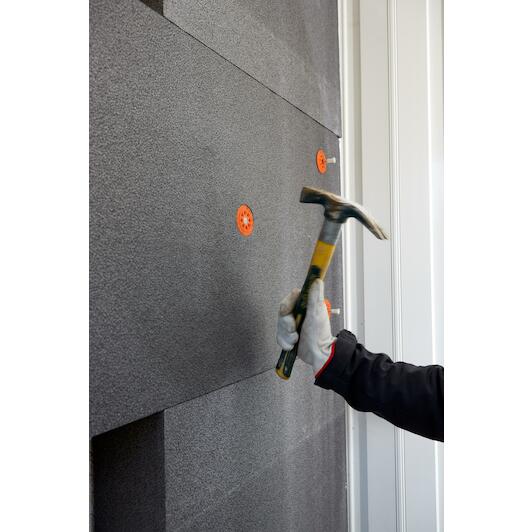

Quick and easy installation
Suitable for insulation with a sizeable thickness
Pre-mounted anchor can be used with PTH dishes

Applications

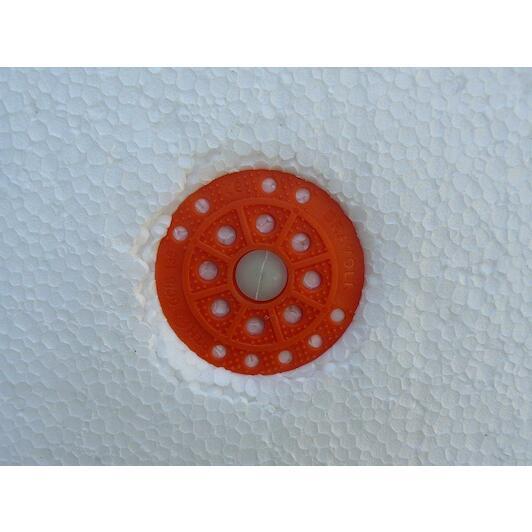

Expanded polystyrene

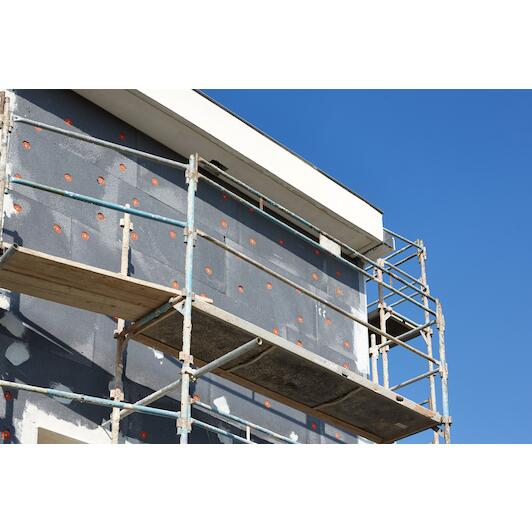

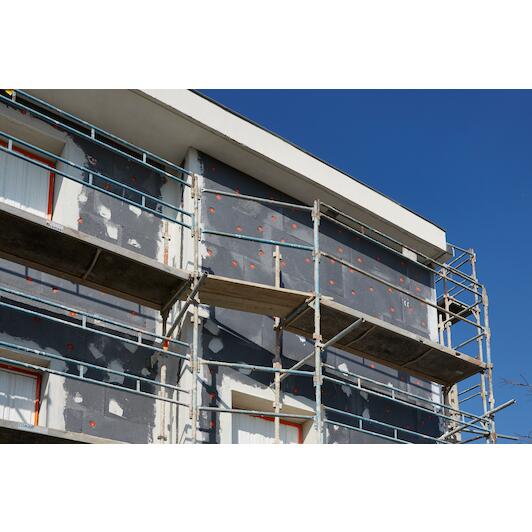

Mineral wool insulation in exterior insulation systems

Key features according to our expert

Head diameter: 60 mm
With screw: Yes
Max. insulation thickness: 40 mm
Wall plug type: Insulation plug
Application: Brick; Aerated concrete
Drilling diameter: 8 mm
Diameter (wall plug): 8 mm
Material (wall plug): PP - Polypropylene
Length (Wall plug): 75 mm

Specifications / All features

Brand: SPIT
02956981
EAN: 3439510549049
Supplier number: SPIT 054904

Head diameter: 60 mm
With screw: Yes
Max. insulation thickness: 40 mm
Wall plug type: Insulation plug
Application: Brick; Aerated concrete
Drilling diameter: 8 mm
Diameter (wall plug): 8 mm
Material (wall plug): PP - Polypropylene
Length (wall plug): 75 mm
Minimum drilling depth: 35 mm
Min. edge distance (mm): 100 mm
Product material: Polypropylene, Steel
Thermal properties: 0,002
Min. anchor distance: 100 mm
Anchor diameter: 8.0 mm
Maximum trapping: 40 mm
Anchoring depth: 25 mm
Min. thickness of base material: 100 mm
Drill diameter: 8.0 mm
Minimum placement depth: 25.0 mm
Base material: Aerated concrete, Hollow blocks, Hollow bricks, Non-cracked concrete, Solid blocks, Solid brick
Maximum installation depth: 25 mm
Anchor length: 75 mm
Treatment: Galvanised
