Product description
- High-performance percussion plug with collar for in all materials
- Easy to install and suitable for all materials
- CE certified percussion plug
- Spreading through hammer blows
- Perfect pressure due to flat collar
- Very good performance in hollow materials
- Flat finish due to countersunk head
- Available with large collar (Hit M-P20)

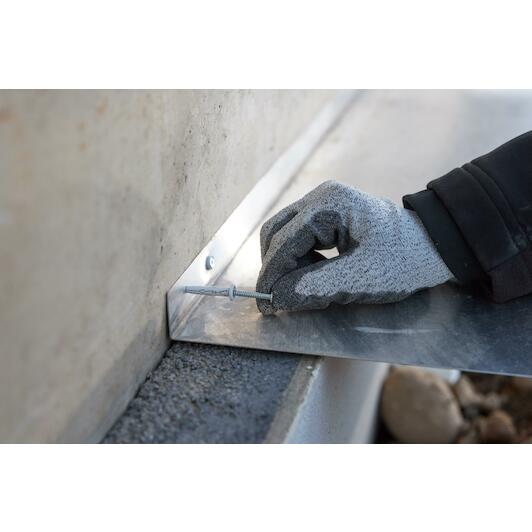

Applications

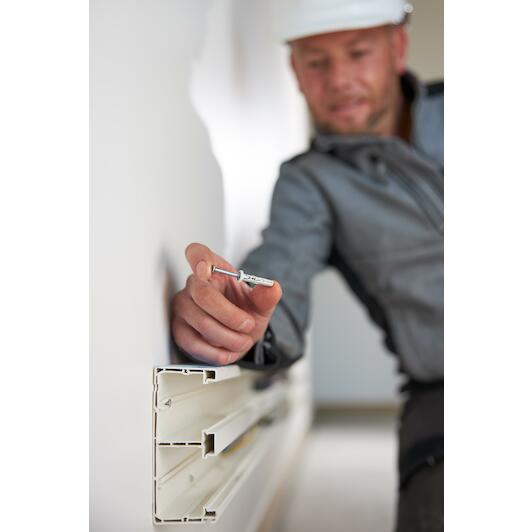

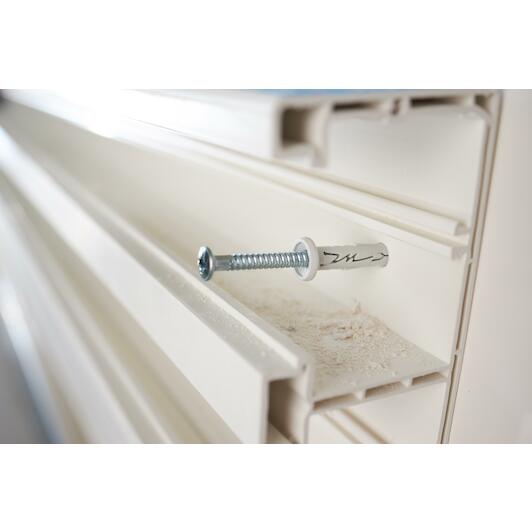

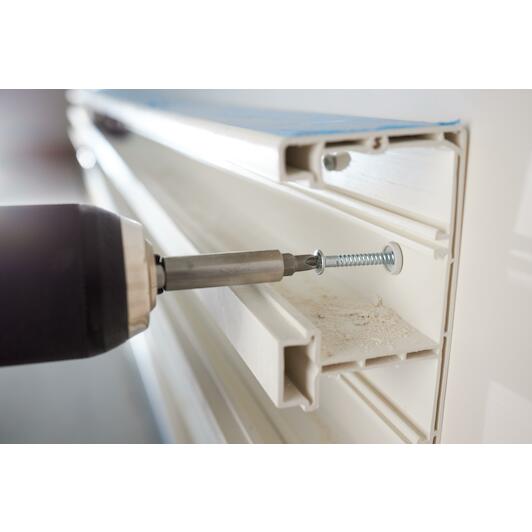

- Electrical installations

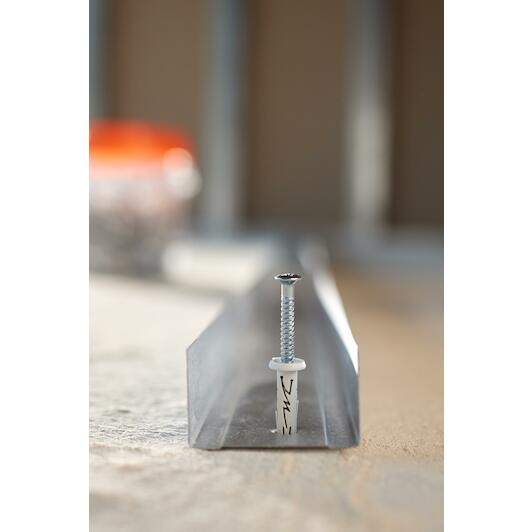

- Metal stud profile
- Beams and rafters
- Signalling
- Insulation supports
- Skirting boards
Key features according to our expert
-
Material (wall plug): Plastic
-
With screw: Yes
-
With collar: Yes
-
Application: Brick; Aerated concrete
-
type (screw head): PZ2
-
Wall plug type: Hammer-in plug
Specifications / All features
-
Brand:
SPIT
-
02711238
-
EAN:
3439510557044
-
Supplier number:
SPIT 055704
- Material (wall plug)
- Plastic
- With screw
- Yes
- With collar
- Yes
- Application
- Brick; Aerated concrete
- Type (screw head)
- PZ2
- Wall plug type
- Hammer-in plug
- Minimum drilling depth
- 35 mm
- Product material
- Nylon
- Head type
- Flat head
- Base material colour
- PURPLE
- Min. anchor distance
- 100 mm
- Anchor diameter
- 6.0 mm
- Maximum trapping
- 5 mm
- Anchoring depth
- 25 mm
- Bit size
- PZ 2
- Min. thickness of base material
- 100 mm
- Anchor length
- 32 mm
- Drill diameter
- 6.0 mm
- Maximum installation depth
- 25 mm
- Throughput diameter
- 6 mm
- Surface treatment
- Galvanised
- Key size
- 2.0 mm
- Head diameter
- 11.0 mm
- Min. edge distance (mm)
- 100 mm
