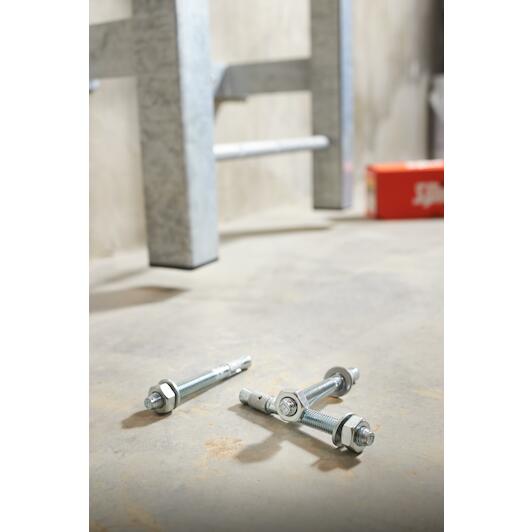

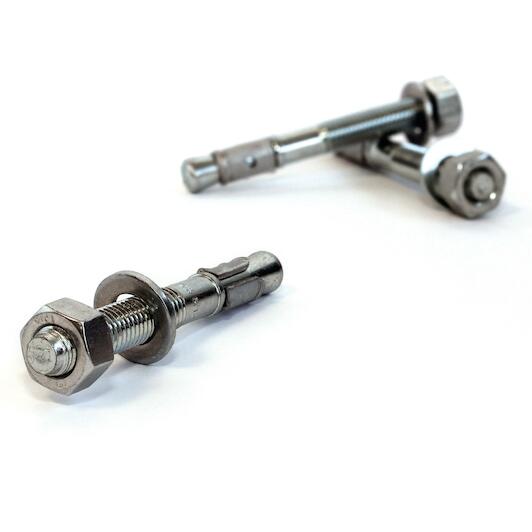

Product description
- Pierce fitting for heavy loads in non-cracked concrete
- ETA approved quality anchor for standard applications
- ETA option 7 for use in non-cracked concrete
- Achieves the highest loads for an ETA option 7 approved anchor
- Fast expansion thanks to special segment design
- Extra large washer for a wide range of applications
- Long thread for flexible fixing thickness
Applications

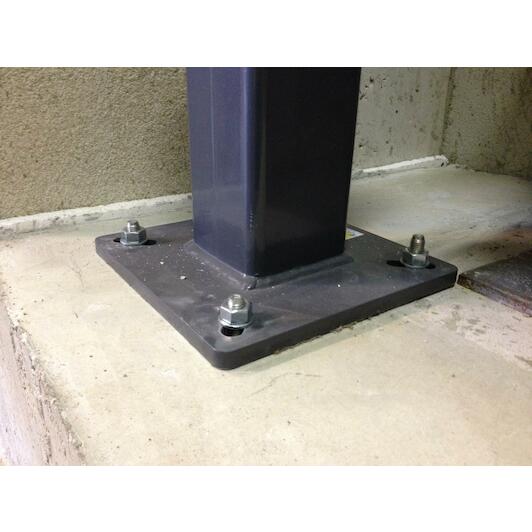

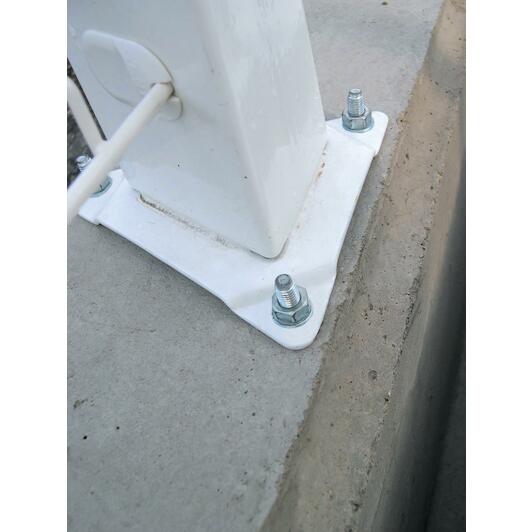

- Steel structures

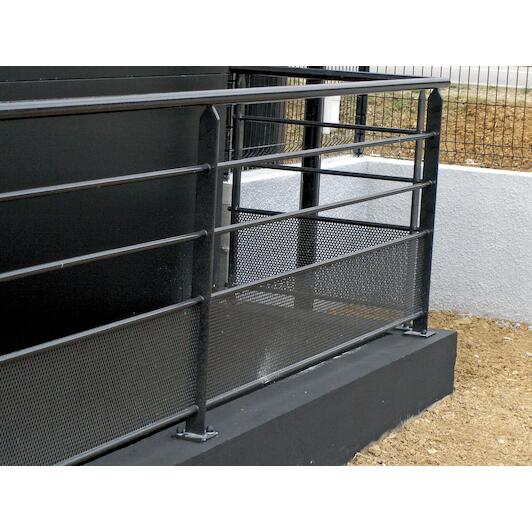

- Stairs
- Pull and pressure braces
- Purlin shoe
- Stadium seating

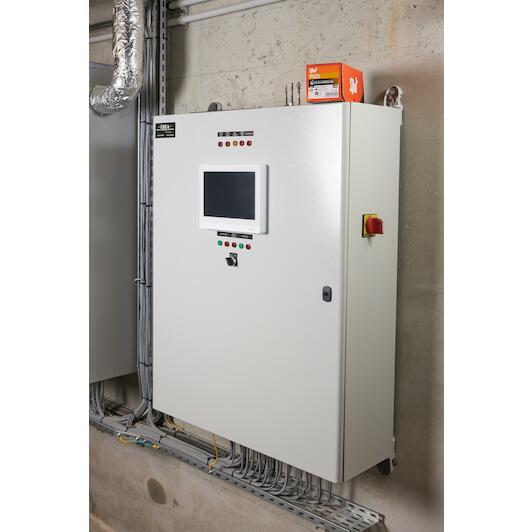

- HVAC

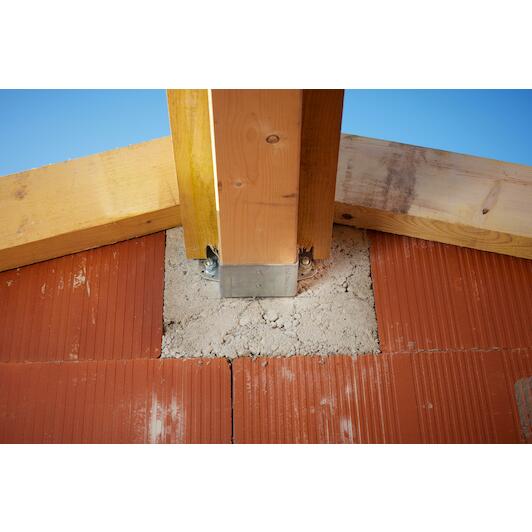

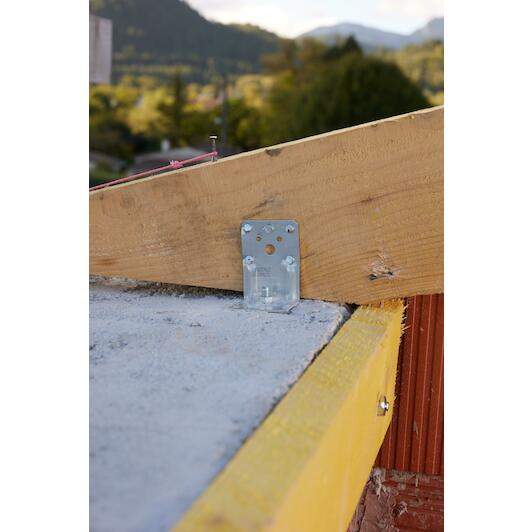

- Wooden structures

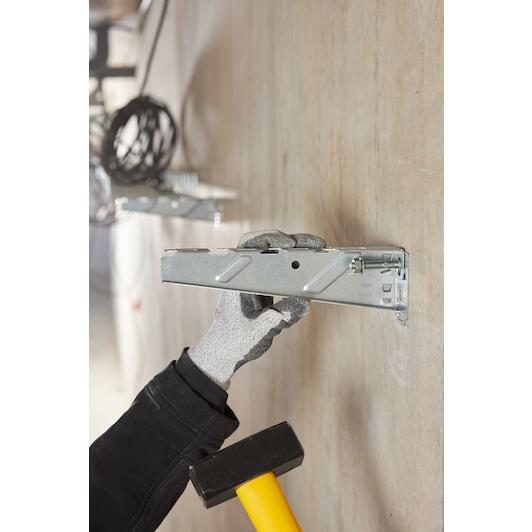

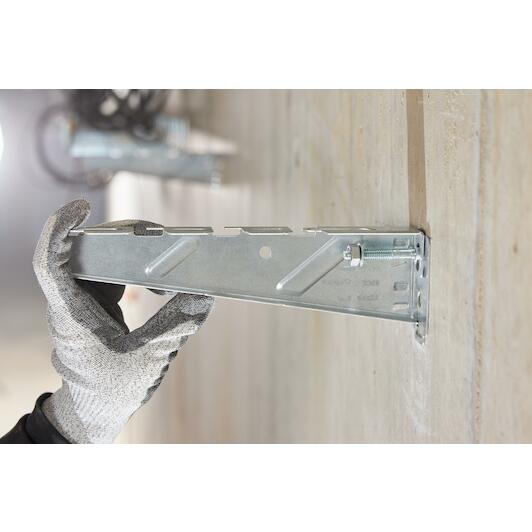

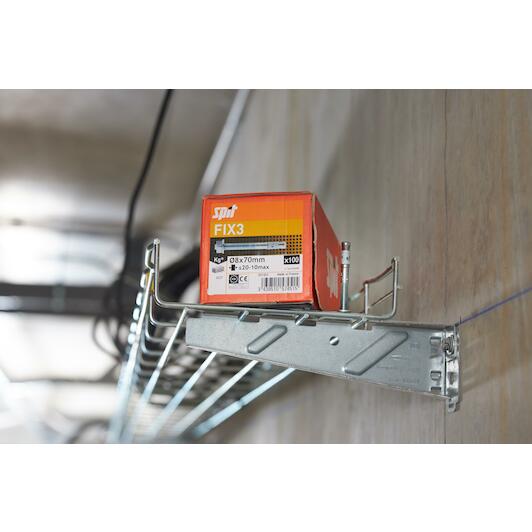

- Brackets

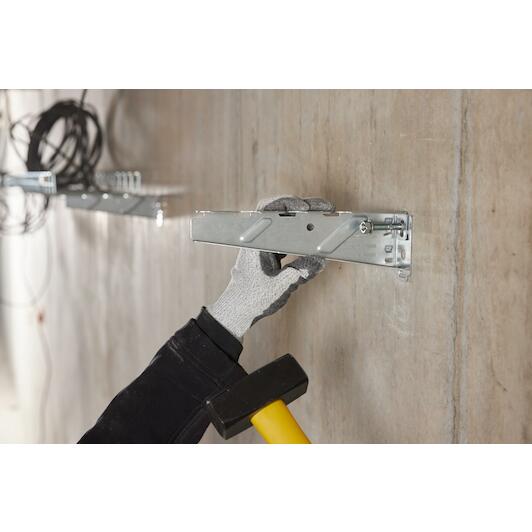

- Metal brackets
Key features according to our expert
-
Drilling diameter: 10 mm
-
Effective length: 36 mm
-
Overall length: 95 mm
-
Material (bolt): Steel
-
Surface treatment (bolt): Zinc plated
-
Thread dimension: M10
Specifications / All features
-
Brand:
SPIT
-
02373240
-
EAN:
3439510574638
-
Supplier number:
SPIT 057463
- Drilling diameter
- 10 mm
- Effective length
- 36 mm
- Overall length
- 95 mm
- Material (bolt)
- Steel
- Surface treatment (bolt)
- Zinc plated
- Thread dimension
- M10
- Anchor diameter
- 10.0 mm
- Min. thickness of base material
- 100 mm
- Tightening torque
- 30 N-m
- Maximum trapping
- 36 mm
- Head type
- Loose nut head
- Min. anchor distance
- 60 mm
- Base material colour
- GREY
- Minimum clamping thickness
- 26 mm
- Product material
- Carbon steel
- Min. edge distance (mm)
- 65 mm
- Treatment
- Galvanised
- Minimum drilling depth
- 70 mm
- Maximum installation depth
- 50 mm
- Drill diameter
- 10.0 mm
- Minimum placement depth
- 40.0 mm
- Base material
- Non-cracked concrete
- Throughput diameter
- 12 mm
- Anchor length
- 95 mm
- Surface treatment
- Galvanised
- Wire diameter
- M10
- Key size
- 17.0 mm
- Anchor screw material
- Steel
