What drill diameter is required for this insulation anchor?

You need a 10 mm drill hole diameter with a minimum drilling depth of 50 mm.

What is the maximum insulation thickness for this anchor?

This anchor is suitable for a maximum insulation thickness of 125 mm.

Which base materials is the Spit ISO insulation anchor suitable for?

It is suitable for solid and hollow substrates, including concrete, brick, and aerated concrete.

Which insulation types can be fixed with this anchor?

It is designed for fixing expanded polystyrene (EPS) and mineral wool insulation boards.

How do you install this insulation anchor?

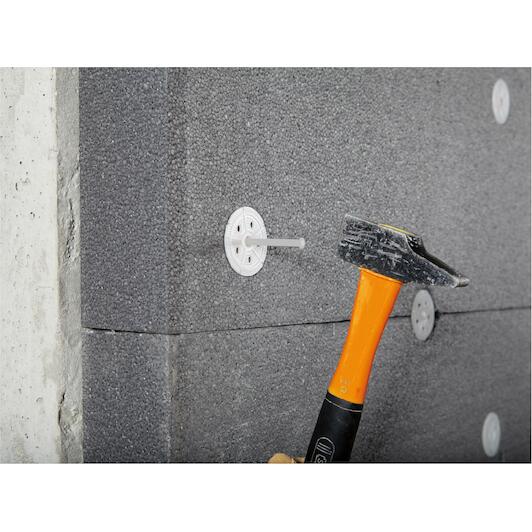

It is a hammer-in anchor: push the plug through the insulation and drive the plastic nail in with a hammer.

SPIT 057640 insulation plug with plastic striking pin for EPS insulation (Ø60) 10x120

Name: SPIT 057640 insulation plug with plastic striking pin for EPS insulation (Ø60) 10x120
Brand: SPIT
SKU: 02345282
Price: 0.45 EUR
Availability: PreOrder

Supplier number: SPIT 057640 | EAN 3439510576403

0.45 tax incl.

€0.37 excl. VAT (incl. all environmental contributions)

On order: delivered from 16/10/2026

The minimum purchase order quantity for the product is 200.

Ordered before 20:00 - delivered as of 16/10/2026
Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Efficient insulation fixing with Spit

Practical benefits

Fast hammer in installation: You drive the plastic nail quickly into place for a speedy and effortless fix.
Prevents unwanted thermal bridges: The synthetic pin design minimises heat loss to preserve the thermal performance of your exterior wall.

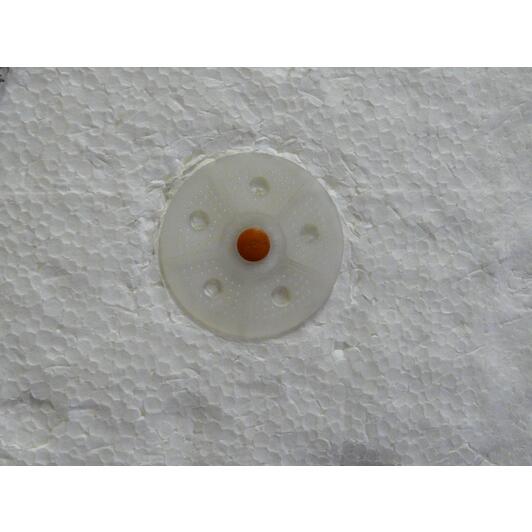

Secure broad surface hold: The 60 mm plate diameter provides reliable clamping pressure across your EPS insulation boards.

In a nutshell

The right choise for

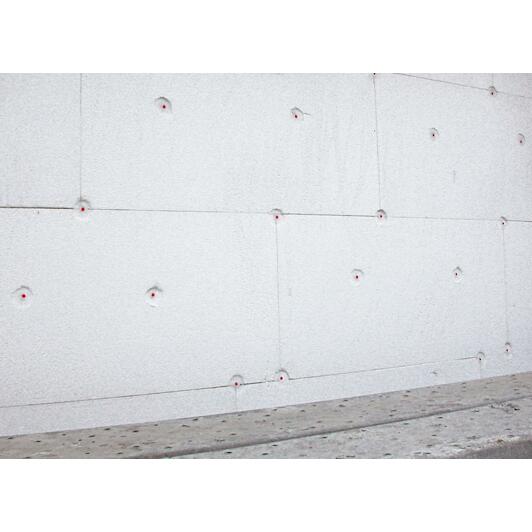

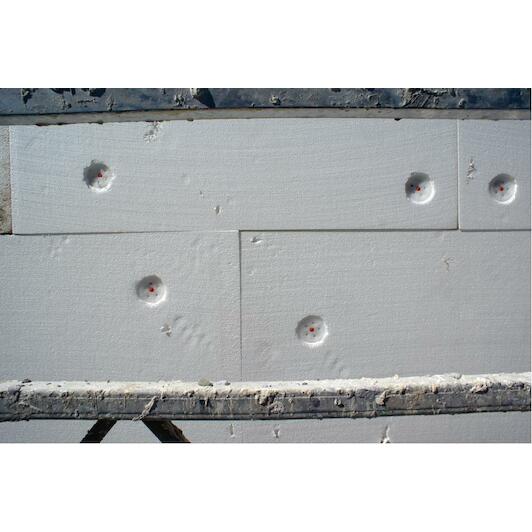

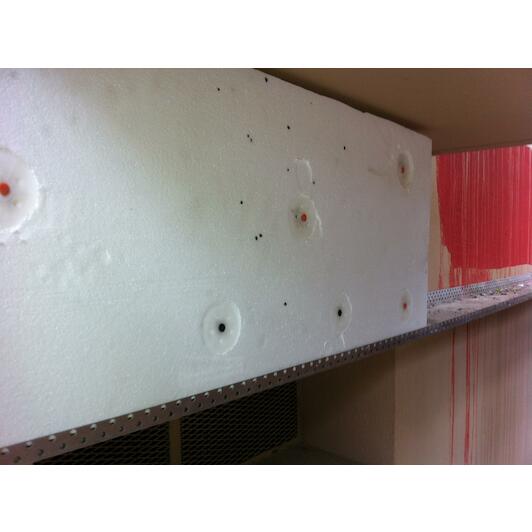

With the Spit iso insulation anchor, you can secure insulation boards quickly, firmly, and without heat loss to brickwork, concrete, or aerated concrete. Thanks to the plastic hammer-in nail, you effectively prevent thermal bridging to protect the insulating performance of your exterior wall. The wide 60 mm plate head provides broad clamping support, preventing eps boards from crushing or deforming. Because you insert this hammer-in anchor directly through the insulation into a 10 mm drill hole and set it with a hammer, you can make rapid progress without screwdriving tools. It delivers a dependable fixing for insulation thicknesses up to 125 mm.

Product information FAQ

€0.45

tax incl.

Key features according to our expert

Head diameter: 60 mm
With screw: Yes
Max. insulation thickness: 125 mm
Wall plug type: Insulation plug
Application: Brick; Aerated concrete
With collar: Yes
Drilling diameter: 10 mm
Diameter (wall plug): 10 mm
Material (wall plug): PP - Polypropylene
Length (Wall plug): 155 mm

Product description

Insulation plug with plastic nail for fixing expanded polyester (EPS) and mineral insulation boards in ETICS system
Expansion insulation plug with striking pin perfectly suited for EPS insulation
Suitable for all base materials for ETICS applications
High pull-out values: 150 kg in concrete for optimum anchor consumption per m2
Secure ETICS fastening
Optimal thermal transfer < 0.002 W/K
Low depth: 25 mm
Expansions for quick and easy fixing
Pre-assembled anchor for faster installation
Special panel surface for optimal adhesion.
Suitable for thick insulation boards.
ETICS use categories: A - B - C - D - E.

Applications

Window hooks
Suspended ceilings
Cladding
Duct & conduit systems

Documents

⤓ Declaration of Conformity PDF

All Features

Head diameter: 60 mm
With screw: Yes
Max. insulation thickness: 125 mm
Wall plug type: Insulation plug
Application: Brick; Aerated concrete
With collar: Yes
Drilling diameter: 10 mm
Diameter (wall plug): 10 mm
Material (wall plug): PP - Polypropylene
Length (wall plug): 155 mm
Minimum drilling depth: 50 mm
Product material: Polypropylene
Thermal properties: 0,001
Head type: Ring head
Base material colour: PURPLE
Min. anchor distance: 100 mm
Anchor diameter: 10.0 mm
Maximum trapping: 125 mm
Anchoring depth: 30 mm
Min. thickness of base material: 100 mm
Minimum clamping thickness: 115 mm
Drill diameter: 10.0 mm
Minimum placement depth: 30.0 mm
Base material: Hollow blocks, Hollow bricks, Non-cracked concrete, Solid blocks, Solid brick
Maximum installation depth: 30 mm
Anchor length: 155 mm
Min. edge distance (mm): 100 mm

Brand SPIT
02345282
EAN 3439510576403
Supplier number SPIT 057640

Frequently asked questions about this product

Answered by specialists

What drill diameter is required for this insulation anchor?: You need a 10 mm drill hole diameter with a minimum drilling depth of 50 mm.
What is the maximum insulation thickness for this anchor?: This anchor is suitable for a maximum insulation thickness of 125 mm.
Which base materials is the Spit ISO insulation anchor suitable for?: It is suitable for solid and hollow substrates, including concrete, brick, and aerated concrete.
Which insulation types can be fixed with this anchor?: It is designed for fixing expanded polystyrene (EPS) and mineral wool insulation boards.
How do you install this insulation anchor?: It is a hammer-in anchor: push the plug through the insulation and drive the plastic nail in with a hammer.
