SPIT 057691 insulation anchor for soft and semi-rigid insulation panels (Ø90) 8x60

Name: SPIT 057691 insulation anchor for soft and semi-rigid insulation panels (Ø90) 8x60
Brand: SPIT
SKU: 02664192
Price: 0.38 EUR
Availability: PreOrder

0.38 tax incl.

€0.31 excl. VAT (incl. all environmental contributions)

SPIT 057691 insulation anchor for soft and semi-rigid insulation panels (Ø90) 8x60

€0.38

On order: delivered from 21/05/2026

each

The minimum purchase order quantity for the product is 300.

Ordered before 20:00 - delivered as of 21/05/2026
Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

Product information

Product description

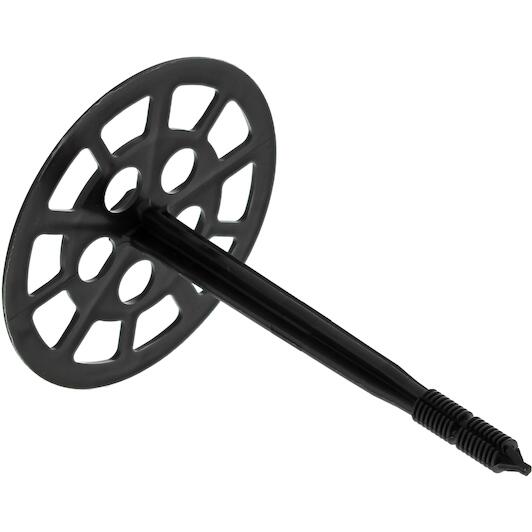

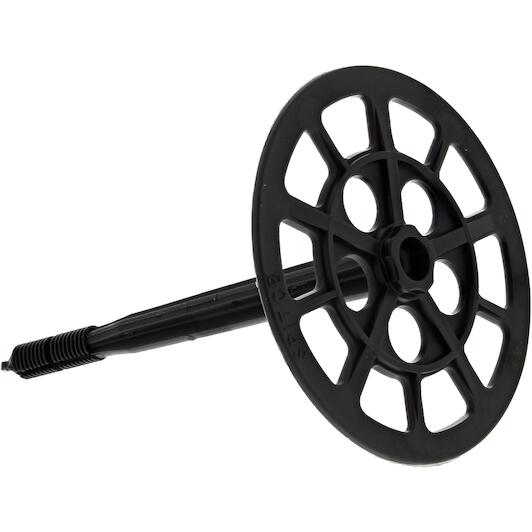

Insulation anchor for soft and semi-rigid insulation panels
Insulation anchor perfectly suited for soft insulation
Made of polypropylene for temperatures from -30 °C to +80 °C
Up to loads of 50 kg in concrete
Easy to install through insulation material
90 mm dish, approved for ventilated facades
Use category: concrete, brick and aerated concrete
Up to 220 mm insulation thickness

Applications

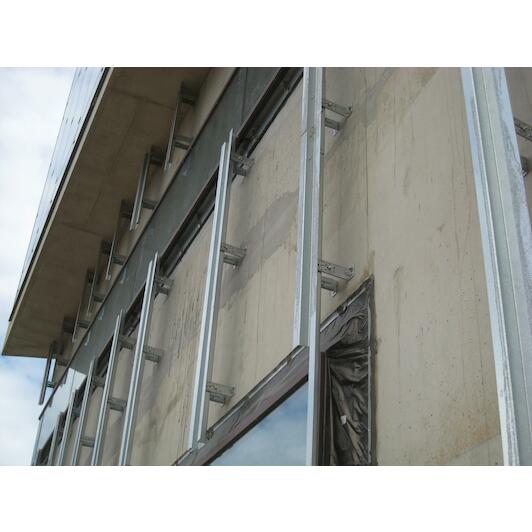

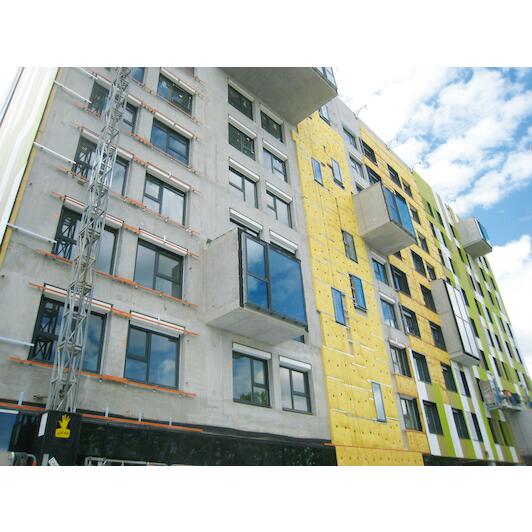

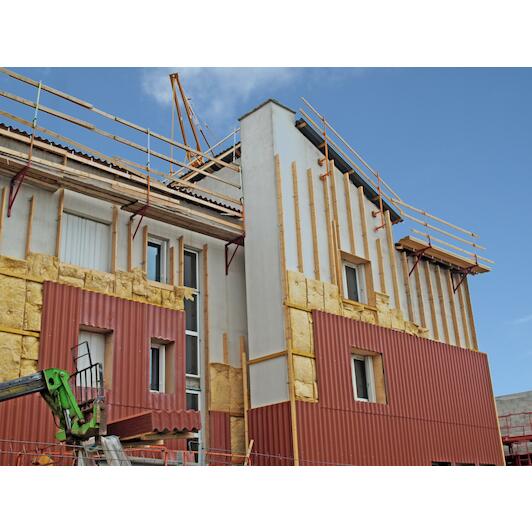

Ventilated facades

Key features according to our expert

Head diameter: 90 mm
With screw: No
Max. insulation thickness: 60 mm
Wall plug type: Insulation plug
Application: Brick; Aerated concrete
type (screw head): Not applicable
Drilling diameter: 8 mm
Diameter (wall plug): 8 mm
Material (wall plug): PP - Polypropylene
Length (Wall plug): 95 mm

Specifications / All features

Brand: SPIT
02664192
EAN: 3439510576915
Supplier number: SPIT 057691

Head diameter: 90 mm
With screw: No
Max. insulation thickness: 60 mm
Wall plug type: Insulation plug
Application: Brick; Aerated concrete
Type (screw head): Not applicable
Drilling diameter: 8 mm
Diameter (wall plug): 8 mm
Material (wall plug): PP - Polypropylene
Length (wall plug): 95 mm
Minimum placement depth: 20.0 mm
Base material colour: PURPLE
Anchor diameter: 8.0 mm
Maximum trapping: 60 mm
Anchoring depth: 20 mm
Minimum drilling depth: 50 mm
Minimum clamping thickness: 50 mm
Drill diameter: 8.0 mm
Base material: Aerated concrete, Non-cracked concrete, Solid blocks, Solid brick
Maximum installation depth: 30 mm
Anchor length: 95 mm
Product material: Polypropylene
