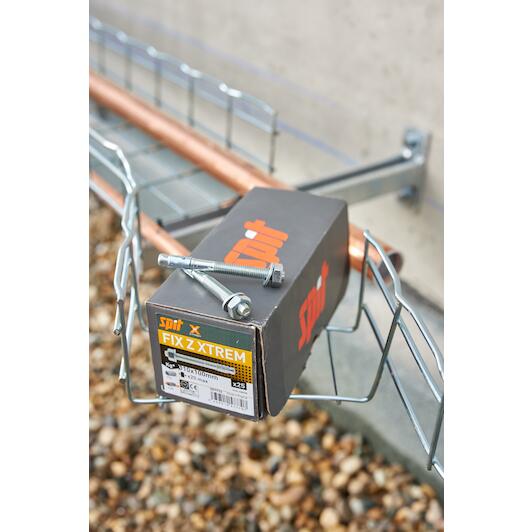

Product description
- Piercing anchor for cracked and non-cracked concrete and seismic applications
- ETA-approved quality anchor for safety applications
- Widely applicable XTREM anchor thanks to CE approval for use in cracked and non-cracked concrete
- High allowable loads thanks to special geometry and segment thickness
- Large range that can be used in all seismic C1 and C2 areas
- Geometry ensures easy placement and fast installation due to minimum number of turns
- Maximum flexibility thanks to the fully continuous screw act
Applications
- Steel structures
- Safety fences

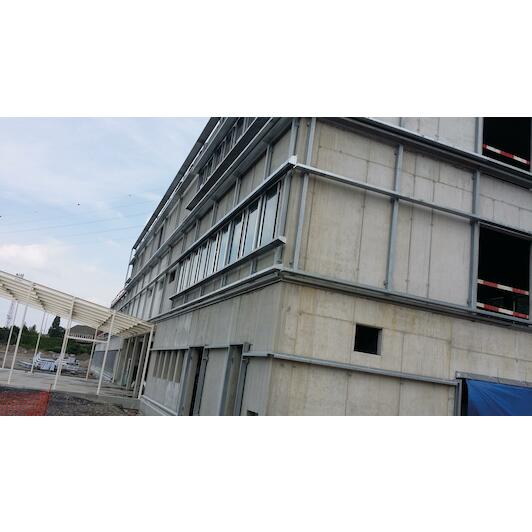

- Curtain wall
- Purlin
- Wooden panel
- HVAC
- Timber structures
Key features according to our expert
-
Drilling diameter: 8 mm
-
Effective length: 30 mm
-
Overall length: 90 mm
-
Material (bolt): Steel
-
Surface treatment (bolt): Zinc plated
-
Thread dimension: M8
Specifications / All features
-
Brand:
SPIT
-
02680254
-
EAN:
3439510577653
-
Supplier number:
SPIT 057765
- Drilling diameter
- 8 mm
- Effective length
- 30 mm
- Overall length
- 90 mm
- Material (bolt)
- Steel
- Surface treatment (bolt)
- Zinc plated
- Thread dimension
- M8
- Min. anchor distance
- 50 mm
- Tightening torque
- 20 N-m
- Maximum trapping
- 30 mm
- Anchor diameter
- 8.0 mm
- Product material
- Carbon steel
- Base material colour
- GREY
- Head type
- Loose nut head
- Minimum drilling depth
- 65 mm
- Min. edge distance (mm)
- 50 mm
- Treatment
- Galvanised
- Min. thickness of base material
- 100 mm
- Maximum installation depth
- 46 mm
- Drill diameter
- 8.0 mm
- Base material
- Cracked concrete, Non-cracked concrete
- Throughput diameter
- 9 mm
- Anchor length
- 90 mm
- Wire diameter
- M8
- Key size
- 13.0 mm
- Anchor screw material
- Steel
