Which base materials is this through bolt anchor suitable for?

The anchor is suitable for cracked and non-cracked concrete, as well as seismic applications.

What drill diameter is required for installation?

For this M10 variant, drill a hole diameter of 10 mm with a minimum drilling depth of 55 mm.

What is the maximum fixture thickness of this anchor?

With a total length of 70 mm, the maximum fixture thickness is 10 mm.

Is this anchor suitable for outdoor applications?

Yes, the A4 stainless steel construction provides high corrosion resistance for outdoor environments.

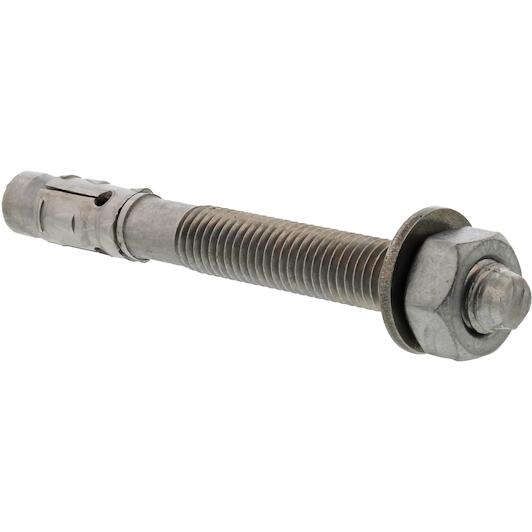

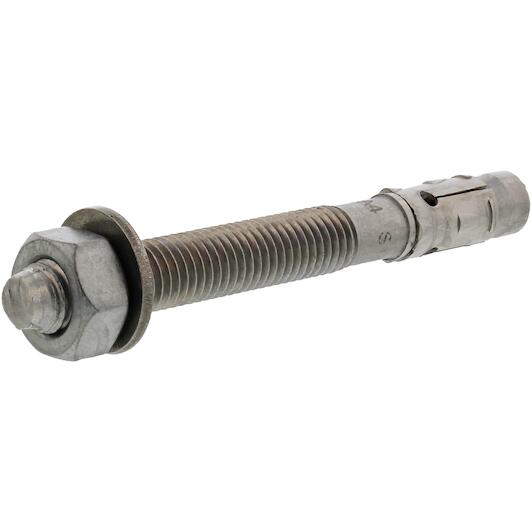

SPIT 058619 FIX Z XTREM A4 segment anchor M10x70 zinc-plated

Name: SPIT 058619 FIX Z XTREM A4 segment anchor M10x70 zinc-plated
Brand: SPIT
SKU: 03194081
Price: 3.64 EUR
Availability: InStock

Supplier number: SPIT 058619 | EAN 3439510586198

3.64 tax incl.

€3.01 excl. VAT (incl. all environmental contributions)

On stock - immediately available

The minimum purchase order quantity for the product is 50.

Ordered before 20:00 - delivered tomorrow 02/10/2026
Free shipping
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Spit through bolt for demanding anchors

Practical benefits

Reliable grip in concrete: You secure structural fixtures firmly into cracked and non-cracked concrete with the durable expansion clip.
Superior resistance to corrosion: Made from A4 stainless steel, it protects your exterior fastenings against moisture and harsh weather conditions.

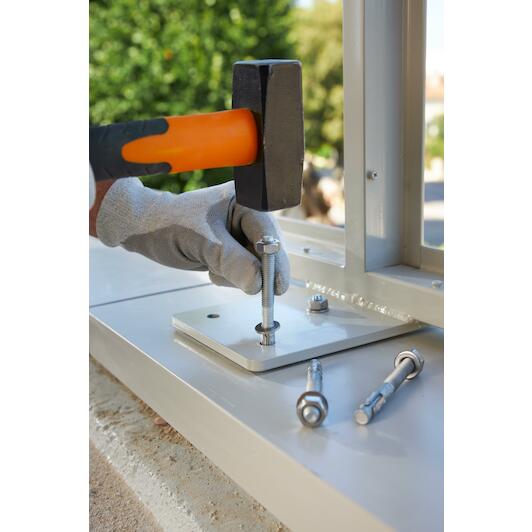

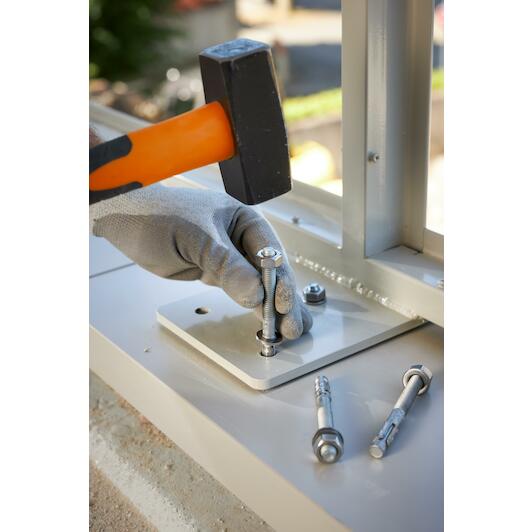

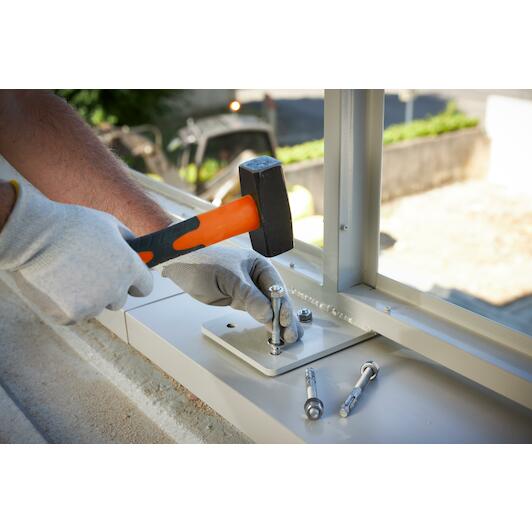

Fast and effortless installation: The optimized M10 design allows you to drive and tighten the anchor with minimal turns.

In a nutshell

The right choise for

With the Spit Fix z Xtrem M10 through bolt anchor, you securely fasten heavy structures into cracked and non-cracked concrete. The robust expansion clip provides a dependable mechanical hold without chemical resins. Made from A4 stainless steel, it delivers superior corrosion resistance, making it ideal for demanding exterior fastenings such as facade sub-structures, brackets, and structural base plates exposed to weather and moisture. Featuring a total length of 70 mm and a maximum fixture thickness of 10 mm, this M10 anchor drives smoothly into a 10 mm drill hole and tightens with minimal turns for fast installation.

Product information FAQ

€3.64

In stock - tax incl.

Key features according to our expert

Thread designation: M10
Material (bolt): Stainless steel A4
Overall length: 70 mm

Product description

Piercing anchor in stainless steel for cracked and non-cracked concrete and seismic applications
ETA approved quality stainless steel anchor for safety applications
Widely applicable XTREM anchor thanks to CE approval for use in cracked and non-cracked concrete
High allowable loads thanks to special geometry and segment thickness
Large range that can be used in all seismic C1 and C2 areas
Geometry ensures easy placement and fast installation due to minimum number of turns
Maximum flexibility thanks to the fully continuous screw act

Applications

Steel structures
Stairs
Pull and pressure braces
Purlin shoe
Stadium seating
HVAC
Wooden structures
Brackets
Metal brackets

Documents

⤓ Declaration of Conformity PDF

All Features

Thread designation: M10
Material (bolt): Stainless steel A4
Overall length: 70 mm
Drill diameter: 10.0 mm
Treatment: Stainless steel A4
Min. edge distance (mm): 60 mm
Product material: INOX A4
Head type: Loose nut head
Min. anchor distance: 55 mm
Anchor diameter: 10.0 mm
Maximum trapping: 10 mm
Tightening torque: 45 N-m
Min. thickness of base material: 120 mm
Minimum drilling depth: 55 mm
Base material: Cracked concrete, Non-cracked concrete
Minimum placement depth: 48.0 mm
Maximum installation depth: 40 mm
Throughput diameter: 12 mm
Anchor length: 70 mm
Wire diameter: M10
Key size: 17.0 mm
Anchor screw material: Stainless steel A4

Brand SPIT
03194081
EAN 3439510586198
Supplier number SPIT 058619

Frequently asked questions about this product

Answered by specialists

Which base materials is this through bolt anchor suitable for?: The anchor is suitable for cracked and non-cracked concrete, as well as seismic applications.
What drill diameter is required for installation?: For this M10 variant, drill a hole diameter of 10 mm with a minimum drilling depth of 55 mm.
What is the maximum fixture thickness of this anchor?: With a total length of 70 mm, the maximum fixture thickness is 10 mm.
Is this anchor suitable for outdoor applications?: Yes, the A4 stainless steel construction provides high corrosion resistance for outdoor environments.
