What base materials is this wedge anchor suitable for?

It is approved for use in both cracked and non-cracked concrete.

Can this wedge anchor be used outdoors?

Yes, the A4 stainless steel construction provides high corrosion resistance for outdoor applications.

What drill bit diameter is required for installation?

For this M12 anchor, you need to drill a hole with a diameter of 12 mm.

What is the maximum fixture thickness for this anchor?

For this 95 mm total length model, the maximum fixture thickness is 20 mm.

Is this anchor approved for seismic conditions?

Yes, it holds an ETA approval covering seismic performance categories C1 and C2.

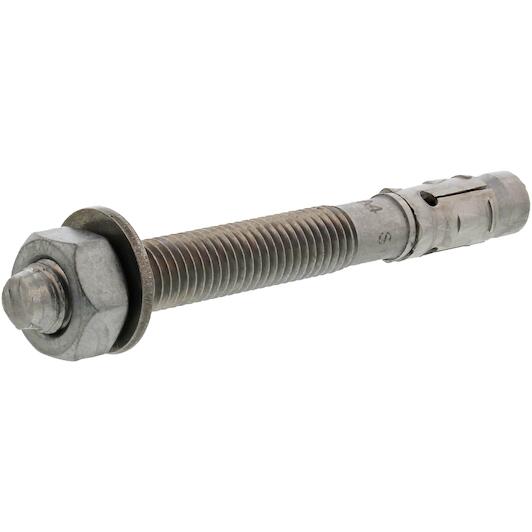

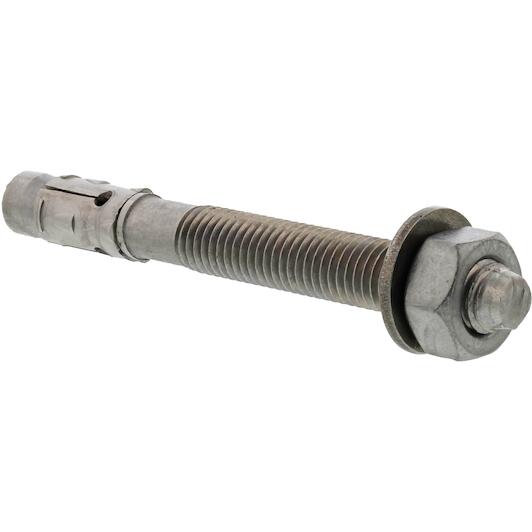

SPIT 058623 FIX Z XTREM A4 segment anchor M12x95 zinc-plated

Name: SPIT 058623 FIX Z XTREM A4 segment anchor M12x95 zinc-plated
Brand: SPIT
SKU: 03196177
Price: 6.2 EUR
Availability: InStock

Supplier number: SPIT 058623 | EAN 3439510586235

6.20 tax incl.

€5.12 excl. VAT (incl. all environmental contributions)

On stock - immediately available

The minimum purchase order quantity for the product is 25.

Ordered before 20:00 - delivered tomorrow 09/10/2026
Free shipping
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

High load performance with the M12X95 A4 stud anchor

Practical benefits

Reliable anchoring in concrete: The expansion clip delivers powerful grip in cracked and non-cracked concrete, ensuring your heavy loads remain firmly secured at all times.
Superior resistance to corrosion: Crafted from high-grade A4 stainless steel, you can rely on this anchor in demanding outdoor and corrosive environments without worrying about rust.

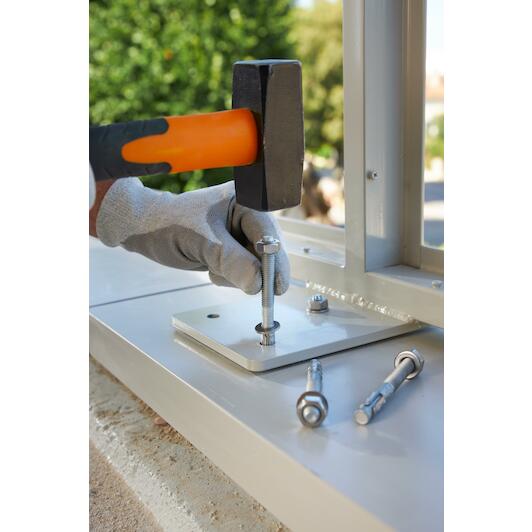

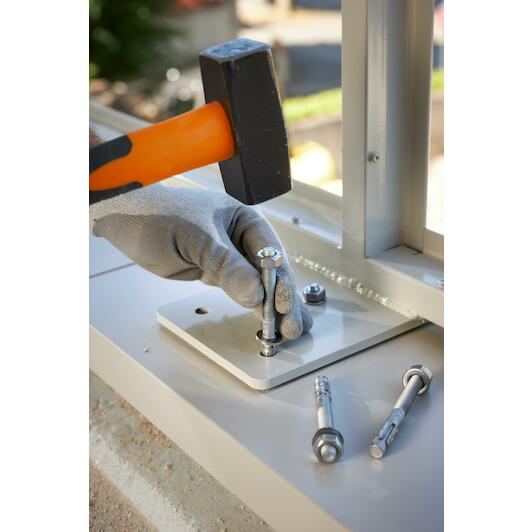

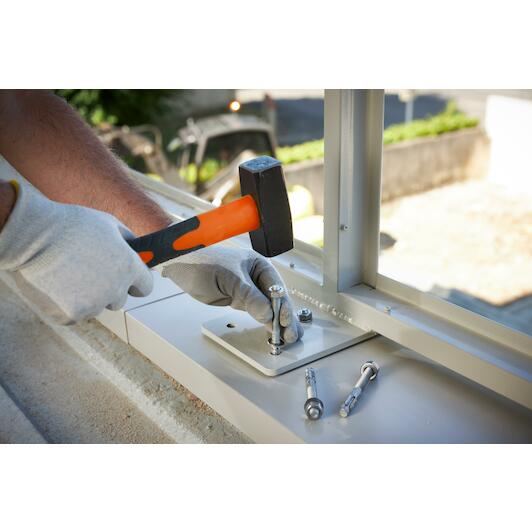

Fast and effortless installation: The optimized cone geometry requires fewer hammer blows and turns to tighten, saving you valuable time during repetitive installation work.

In a nutshell

The right choise for

With the Spit fix z xtrem A4 stud anchor M12X95, you achieve exceptionally secure anchoring for heavy loads in both cracked and non-cracked concrete. Crafted from high-grade A4 stainless steel, it offers outstanding resistance against rust and corrosion, making it suitable for demanding outdoor, marine, and industrial environments. The robust expansion clip provides powerful holding strength and carries eta approval for seismic categories C1 and C2. Thanks to the optimized design, installation is fast and efficient with fewer hammer strikes and turns to tighten. Featuring a total length of 95 mm, it allows you to fasten fixtures up to 20 mm thick quickly and firmly.

Product information FAQ

€6.20

In stock - tax incl.

Key features according to our expert

Thread designation: M12
Material (bolt): Stainless steel A4
Overall length: 95 mm

Product description

Piercing anchor in stainless steel for cracked and non-cracked concrete and seismic applications
ETA approved quality stainless steel anchor for safety applications
Widely applicable XTREM anchor thanks to CE approval for use in cracked and non-cracked concrete
High allowable loads thanks to special geometry and segment thickness
Large range that can be used in all seismic C1 and C2 areas
Geometry ensures easy placement and fast installation due to minimum number of turns
Maximum flexibility thanks to the fully continuous screw act

Applications

Steel structures
Stairs
Pull and pressure braces
Purlin shoe
Stadium seating
HVAC
Wooden structures
Brackets
Metal brackets

Documents

⤓ Declaration of Conformity PDF

All Features

Thread designation: M12
Material (bolt): Stainless steel A4
Overall length: 95 mm
Drill diameter: 12.0 mm
Treatment: Stainless steel A4
Min. edge distance (mm): 60 mm
Product material: INOX A4
Head type: Loose nut head
Min. anchor distance: 60 mm
Anchor diameter: 12.0 mm
Maximum trapping: 20 mm
Tightening torque: 75 N-m
Min. thickness of base material: 100 mm
Minimum drilling depth: 70 mm
Base material: Cracked concrete, Non-cracked concrete
Minimum placement depth: 60.0 mm
Maximum installation depth: 70 mm
Throughput diameter: 14 mm
Anchor length: 95 mm
Wire diameter: M12
Key size: 19.0 mm
Anchor screw material: Stainless steel A4

Brand SPIT
03196177
EAN 3439510586235
Supplier number SPIT 058623

Frequently asked questions about this product

Answered by specialists

What base materials is this wedge anchor suitable for?: It is approved for use in both cracked and non-cracked concrete.
Can this wedge anchor be used outdoors?: Yes, the A4 stainless steel construction provides high corrosion resistance for outdoor applications.
What drill bit diameter is required for installation?: For this M12 anchor, you need to drill a hole with a diameter of 12 mm.
What is the maximum fixture thickness for this anchor?: For this 95 mm total length model, the maximum fixture thickness is 20 mm.
Is this anchor approved for seismic conditions?: Yes, it holds an ETA approval covering seismic performance categories C1 and C2.
