Which base materials is this through bolt suitable for?

The Spit FIX Z XTREM A4 anchor is designed for heavy-duty fixing in both cracked and non-cracked concrete.

What drill hole diameter and depth are required?

You need a drill diameter of 12 mm and a minimum drilling depth of 70 mm.

Is this anchor suitable for outdoor applications?

Yes, made from A4 stainless steel, it offers high corrosion resistance for outdoor and humid environments.

What is the maximum fixture thickness for this anchor?

The maximum fixture thickness you can fasten with this model is 35 mm.

What wrench size is required for tightening the nut?

You need a 19 mm wrench to tighten the M12 nut.

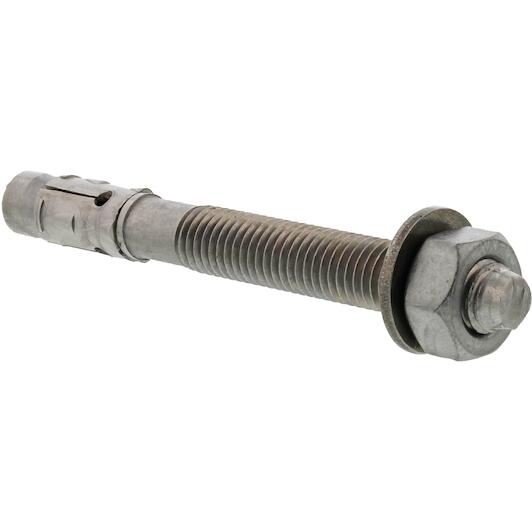

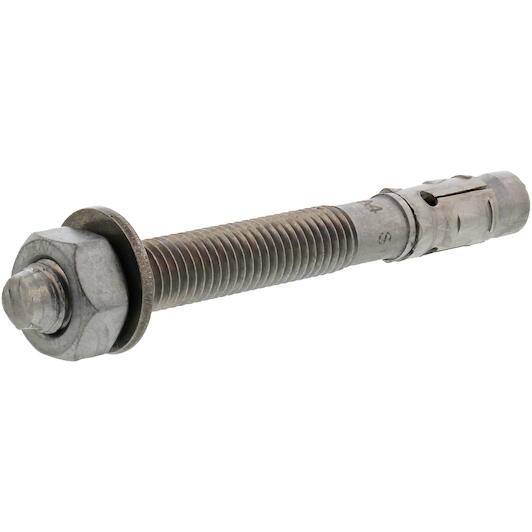

SPIT 058624 FIX Z XTREM A4 segment anchor M12x110 zinc-plated

Name: SPIT 058624 FIX Z XTREM A4 segment anchor M12x110 zinc-plated
Brand: SPIT
SKU: 03194086
Price: 7.3 EUR
Availability: InStock

Supplier number: SPIT 058624 | EAN 3439510586242

7.30 tax incl.

€6.03 excl. VAT (incl. all environmental contributions)

On stock - immediately available

The minimum purchase order quantity for the product is 25.

Ordered before 20:00 - delivered tomorrow 09/10/2026
Free shipping
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Heavy-duty fastening with Spit wedge anchors

Practical benefits

Superior resistance to corrosion: Built from marine-grade A4 stainless steel, it ensures you achieve permanent stability in harsh outdoor environments.
High load-bearing expansion capacity: The heavy-duty expansion clip provides exceptional holding power in both cracked and non-cracked concrete substrates.
Fast and effortless installation: An optimized thread geometry allows you to tighten the anchor securely with fewer tool turns.

In a nutshell

The right choise for

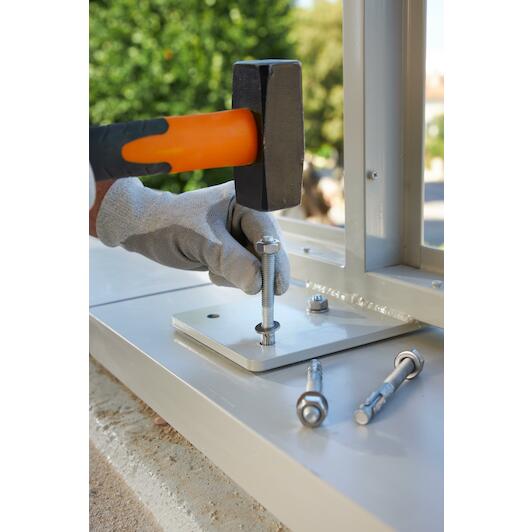

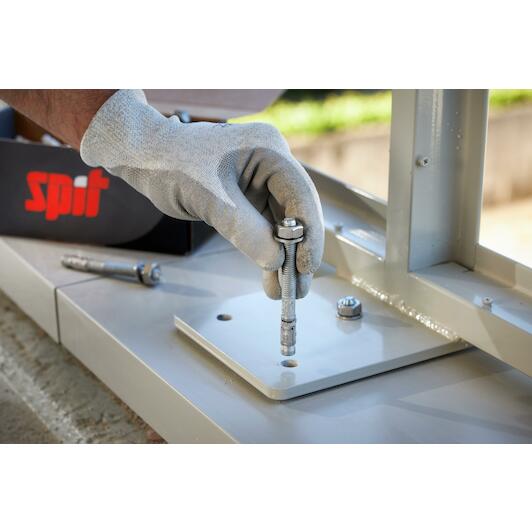

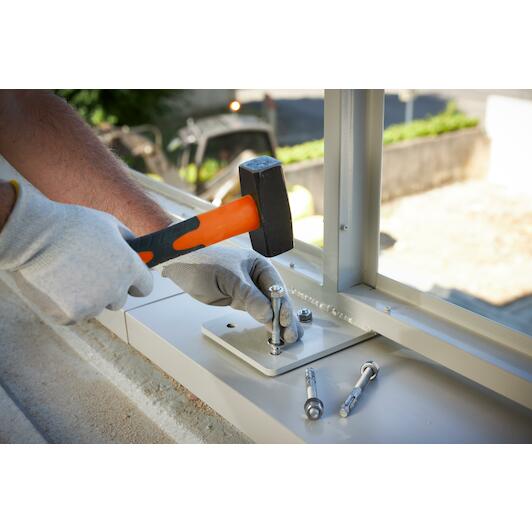

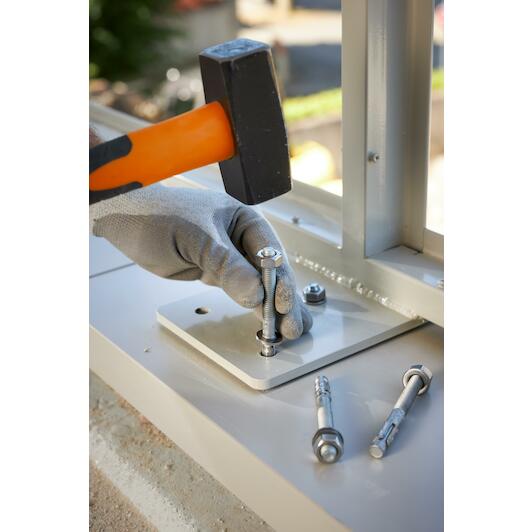

With the Spit Fix z Xtrem A4 wedge anchor M12X110, you achieve secure heavy-duty fastenings in both cracked and non-cracked concrete. Made from marine-grade A4 stainless steel, it provides superior resistance against corrosion, making it suitable for outdoor environments, facade substructures, balustrades, and coastal projects. The reinforced expansion clip delivers maximum holding power and eliminates pull-out risks under heavy mechanical loads. Requiring a 12 mm drill diameter and a minimum drilling depth of 70 mm, this anchor fastens fixtures with a thickness of up to 35 mm. Thanks to the optimized M12 thread, you can securely tighten the nut with a 19 mm wrench in fewer turns.

Product information FAQ

€7.30

In stock - tax incl.

Key features according to our expert

Thread designation: M12
Overall length: 110 mm
Material (bolt): Stainless steel A4

Product description

Piercing anchor in stainless steel for cracked and non-cracked concrete and seismic applications
ETA approved quality stainless steel anchor for safety applications
Widely applicable XTREM anchor thanks to CE approval for use in cracked and non-cracked concrete
High allowable loads thanks to special geometry and segment thickness
Large range that can be used in all seismic C1 and C2 areas
Geometry ensures easy placement and fast installation due to minimum number of turns
Maximum flexibility thanks to the fully continuous screw act

Applications

Steel structures
Stairs
Pull and pressure braces
Purlin shoe
Stadium seating
HVAC
Wooden structures
Brackets
Metal brackets

Documents

⤓ Declaration of Conformity PDF

All Features

Thread designation: M12
Overall length: 110 mm
Material (bolt): Stainless steel A4
Treatment: Stainless steel A4
Min. edge distance (mm): 60 mm
Product material: INOX A4
Head type: Loose nut head
Min. anchor distance: 60 mm
Anchor diameter: 12.0 mm
Maximum trapping: 35 mm
Tightening torque: 75 N-m
Min. thickness of base material: 100 mm
Minimum drilling depth: 70 mm
Minimum clamping thickness: 15 mm
Minimum placement depth: 60.0 mm
Drill diameter: 12.0 mm
Base material: Cracked concrete, Non-cracked concrete
Maximum installation depth: 70 mm
Throughput diameter: 14 mm
Anchor length: 110 mm
Wire diameter: M12
Key size: 19.0 mm
Anchor screw material: Stainless steel A4

Brand SPIT
03194086
EAN 3439510586242
Supplier number SPIT 058624

Frequently asked questions about this product

Answered by specialists

Which base materials is this through bolt suitable for?: The Spit FIX Z XTREM A4 anchor is designed for heavy-duty fixing in both cracked and non-cracked concrete.
What drill hole diameter and depth are required?: You need a drill diameter of 12 mm and a minimum drilling depth of 70 mm.
Is this anchor suitable for outdoor applications?: Yes, made from A4 stainless steel, it offers high corrosion resistance for outdoor and humid environments.
What is the maximum fixture thickness for this anchor?: The maximum fixture thickness you can fasten with this model is 35 mm.
What wrench size is required for tightening the nut?: You need a 19 mm wrench to tighten the M12 nut.
